SKU/Artículo: AMZ-B000SOWF60

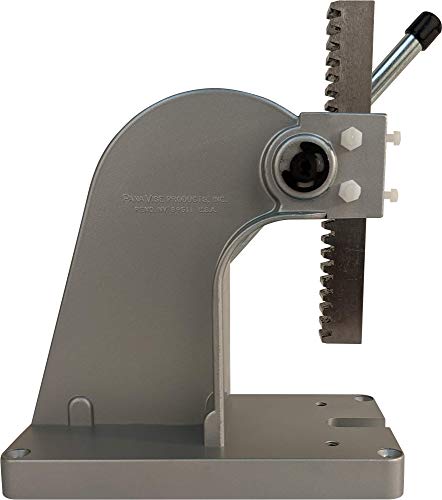

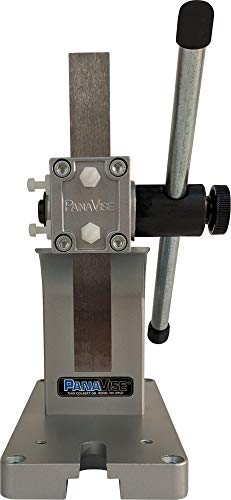

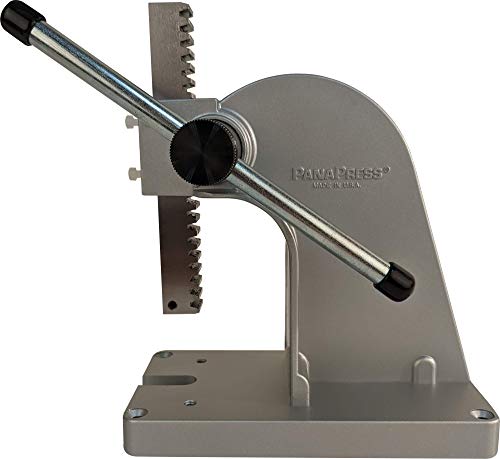

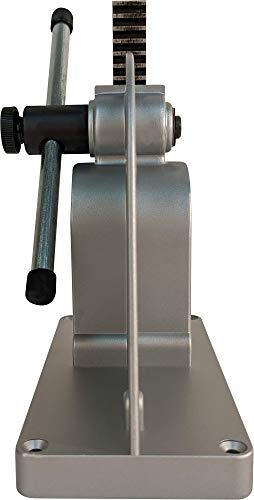

PANAVISE 502 Precision PanaPress
En stock
2.63 kg
Sí
Nuevo
Amazon
- Reversible ram applies up to 1/4 ton (500 lbs. / 227kg) of pressure and is 0.75-Inch x 0.75 (19.1mm x 19.1mm) square and 5.875 (149.2mm) long
- Four adjustable nylon gibs provide exceptional ram control. Arm is 8 (203.2mm) long. Base footprint is 3.7 x 7 (94mm x 177.8mm) and includes four 0.25 (6.3mm) holes countersunk at the corners for bolting to a work surface
- Height (from base to top of back not including variable ram height or arm length): 7 (177.8mm), Weight: 5.4 lbs. (2.5kg)
- One end of the ram is reamed 0.251 (6.4mm) for adding tooling
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
Conoce más detalles
Arbor Press, Force in Tons 1/4, Force Range (Lbs.) 500, Swing (In.) 24, Table Work Surface (In.) 3-3/4 x 7, Anvil Dia. Work Area (In.) 1/2, Range of Slot Widths (In.) Up to 1/2, Max. Work Height (In.) 3-3/16, Ram Dimensions (In.) 3/4 x 3/4 x 6, Zinc Casting, Reversible Ram, Reamed 1/4 in. Hole, (4) Adjustable Nylon Gibs, 8 in. Arm, (4) 1/4 in. Base Mounting Countersunk Holes, (2) Pre-Drilled and Tapped 1/4-20 Accessory Mounting Holes, Includes(2) 1/4-20 x 3/4 in. Screws
