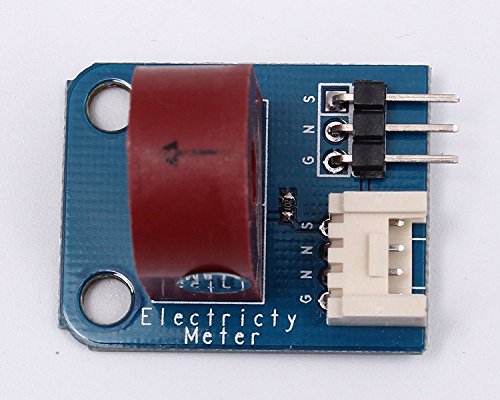

HiLetgo Analog Current Meter Sensor Module AC 0~5A Ammeter Sensor Board Based on TA12-100 for Arduino

Disponibilidad:
En stock
Peso con empaque:
0.36 kg
Devolución:
Condición
Nuevo
Producto de:
Amazon

Sobre este producto
  • Analog Current Meter Module. Transformer can only sense AC
  • This electricity sensor is based on TA12-100 current transformer, which can transform AC signals of large current into small amplitude signals.
  • 3-wire electronic block interface, input 5V - GND. S pin is the output analog voltage value.
  • You can use jumpers to select the parallel output of the output to adjust the range of analog values that are output.
  • On-board 3P and 4P connecting interface for current signal output can be easily connected with your MCU development board
U$S 15,58
49% OFF
U$S 7,99

IMPORTÁ FACIL

Comprando este producto podrás descontar el IVA con tu número de RUT

U$S 15,58
49% OFF
U$S 7,99

¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!

Llega en 5 a 11 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja de USA a tus manos en
Medios de pago Aceptamos múltiples medios de pago para tu comodidad

Compra protegida

Disfruta de una experiencia de compra segura y confiable

Conoce más detalles

Specification: Interface: 3PIN Power Supply: 5V Size: 30x 24x 1.6mm Weight: 25g Electrical characteristics: Transformation coefficient: 1000:1 Input current: 0--5A Output current: 0--5mA Sampling resistor: 200Ω Sampling voltage: 0--1V Working frequency: 20-20000Hz Working temperature: -55--85℃ Dielectric strength: 6KAC/1min Package Include: 1* Analog Current Meter Sensor Module Board If you need detail schematic, please contact us
