Sobre este producto

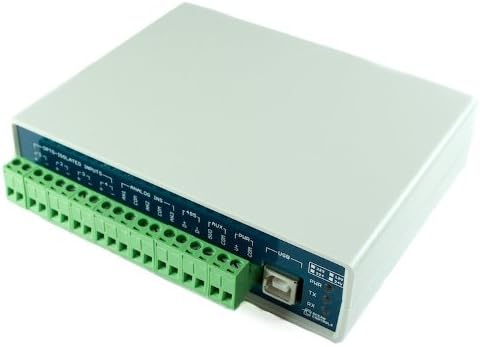

- KTA-223 Relayduino USB/RS485 IO Module
- The KTA-223 is a USB or RS485 controlled IO module for interfacing PCs to real world applications, such as controlling lights and sprinkler systems, reading sensors and monitoring switches and other digital signals.
- The Relays are capable of switching up to 5A at 250VAC, 10A at 120VAC and 10A at 24VDC but the PCB tracks will only handle up to about 5A. A simple ASCII protocol allows control from Windows/Mac/Linux using either USB Virtual COM drivers or RS485.
- Additionally, multiple devices can be connected to one RS485 bus, allowing control of many devices from one USB port.
- Assembled and Tested
U$S 205,16
31% OFF
U$S 141,49
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 205,16
31% OFF
U$S 141,49
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
10% OFF en tu primera compra en la APP con cupón: APP10
Llega en 5 a 11 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles
Features: 8 Relay Outputs 5A 250VAC 4 Opto-Isolated Inputs 5-30VDC 3 Analog Inputs (10 bit) Connections via Pluggable Screw Terminals 0-5V or 0-20mA Analog Inputs, Jumper Selectable 5A Relay Switching Power Indicator LED All enclosed in Professional looking plastic case Arduino Compatible Accepts Arduino Shields (Ethernet / XBee) USB Virtual Serial Port or RS485 Input Easily connect multiple units far apart by RS485The controller is based on the hardware of the Arduino physical computing controllers. It can be programmed as a stand-alone controller using the free, open source Arduino environment. Internally, the controller is shield compatible, allowing the use of many extension boards designed for the Arduino Deumilanove. As shipped the controller is loaded with a sketch that receives simple commands over the USB or RS485 serial port and switches relays or responds with the status of inputs. Multiple controllers can be connected to one or more PCs in an RS485 network. Each controller can be assigned an address and will respond to commands addressed to them. An example program has been written in both Visual Basic 6 and VB .Net to show you how to interface with the KTA-223 using a PC.Light Flasher SoftwareOur Light Flasher software for the KTA-223 allows you to sequence the relays in patterns. This is designed for Christmas lights, trapshooting and other simple time loop controls.Time Clock SoftwareOur Time Clock software for the KTA-223 called Time-Clock allows you to switch on relays at certain times of the day and days of the week. Can be used to control lighting and watering for plants, etc.Download data sheets here:http://www.electronics123.net/amazon/datasheet/kta223_USB_IO.pdfhttp://www.electronics123.net/amazon/datasheet/kta223_Schematic.pdf
