Electronics123.com, Inc. PicoBuck LED Driver
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto

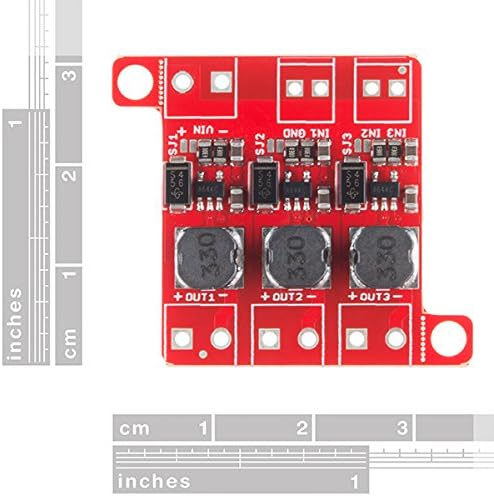

- The PicoBuck LED Driver is an economical and easy to use driver that will allow you to control and blend three different LEDs on three different channels.
- By default, each channel is driven at 330mA; that current can be reduced by either presenting an analog voltage or a PWM signal to the board.
- Version 12 of the board adds a solderable jumper that can be closed to increase the maximum current to 660mA. The new voltage regulator also increased the voltage rating on the various components on the board, allowing it to be used up to the full 36V rating of the AL8805 part.
- Note: If you’re going to use screw terminals, this board uses two different sizes.
- Assembled and Tested
U$S 50,39
49% OFF
U$S 25,84
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 50,39
49% OFF
U$S 25,84
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 5 a 11 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles
Three signal inputs are provided for dimming control. You can use the PWM signal from an Arduino or your favorite microcontroller to dim each channel individually, or you can tie them all to the same PWM for simultaneous dimming. Dimming can be done by an analog voltage (20%-100% of max current by varying voltage from .5V-2.5V) or by PWM (so long as PWM minimum voltage is less than .4V and maximum voltage is more than 2.4V) for a full 0-100% range. A small jumper is provided for each channel to allow you to increase the drive strength from 330mA to 660mA. Two mounting holes for 4-40 or M3 screws are provided on either side of the board. They are perforated so they can be easily snapped off with a pair of pliers, if a smaller footprint is desired. Download documentation here: http://www.electronics123.net/amazon/datasheet/PicoBuckV12Schematic.pdf http://www.electronics123.net/amazon/datasheet/picoBuck_v12.zip http://www.electronics123.net/amazon/datasheet/AL8805.pdf https://learn.sparkfun.com/tutorials/picobuck-hookup-guide-v12 http://protofusion.org/wordpress/2013/03/picobuck-rgb-led-driver/ https://github.com/sparkfun/PicoBuck
