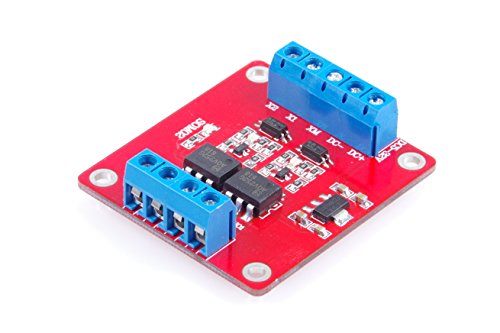

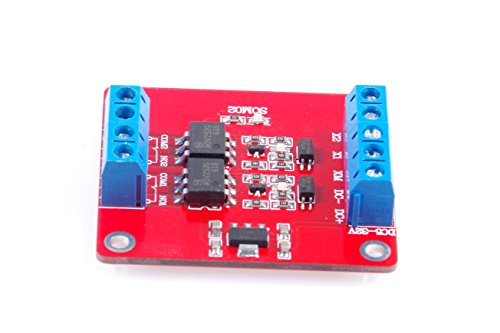

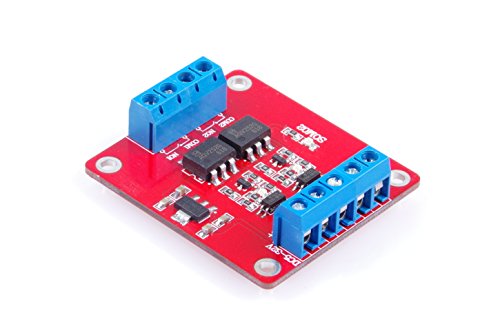

2-Channel Solid State Relay Module High-Low Level Trigger 3A Optocoupler Isolation
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- LM YN 2-Channel Solid State Relay Module, optional positive or negative signal trigger, only need 0.1mA trigger current, can drive the maximum control capacity of 3A solid state relay pull.
- The module uses high-quality components, red and blue signal indicator, industrial grade double-sided PCB board, stable performance.
- LM YN 2-Channel Solid State Relay Module, with solid-state relay output resistance is very small features, can replace the mechanical relay contacts, but also has a small control current, fast action time, long working life and other characteristics, can be widely used in a variety of power Or signal control cases.
- DC 5-32V wide voltage power supply, with power supply anti-reverse ability;
- Output Rated load: AC / DC 0-50V / 2A; Maximum load: AC / DC 0-60V / 3A (within 100ms);
- Module size: 50x45x10mm(LWH), hole diameter 3mm, hole center distance 35x25mm(LW).
- Please download the user manual from the "User Manual" link on this page or contact us.
U$S 30,58
44% OFF
U$S 16,99
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 30,58
44% OFF
U$S 16,99
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 5 a 11 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles
Feature: 1, DC 5-32V wide voltage power supply, with anti-reverse power supply capacity; 2, the output rated load: AC / DC 0-50V / 2A; maximum load: AC / DC 0-60V / 3A (within 100ms); 3, the output port is normally open type of switch contacts, the contact is not charged node, the current direction without requirements; 4, the input control high and low selectable; built-in current limiting resistor, you can directly use the power of the positive or negative control, you can also use the microcontroller I / O port control; 5, the module anti-interference ability, stable performance; trigger current minimum 0.1mA; 6, with power indicator (red) and each way relay status indicator (blue) 7, the use of blue terminals; Precautions: This module can be used directly for signal or resistive load control; If you are using control for inductive loads (eg small motors, solenoid valves, etc.), keep more than 3 times the remaining amount and add freewheeling diodes at both ends of the inductive load. Module interface Module Control: 1, DC +: Connect the DC power supply positive 2, DC -: Connec the DC power supply negative 3, XM : trigger side of the public port (through this interface can choose high or low trigger). 4, X1-X2: Trigger side, you can choose high or low trigger, trigger current only 0.1mA; Select the high-level trigger: 3-32V for the effective high level voltage; Select the low-level trigger: 0-2V for the effective low voltage; Relay output: 1, NO1-NO2: relay normally open interface; 2, C0M1-COM2: relay common interface; Package Included: 1*LM YN 2-Channel Solid State Relay Module If you for any reason are not happy with any product supplied , please do not hesitate to contact us and we will do our best to solve your problem .
