SKU/Artículo: AMZ-B07BLKJQYR

Noyito

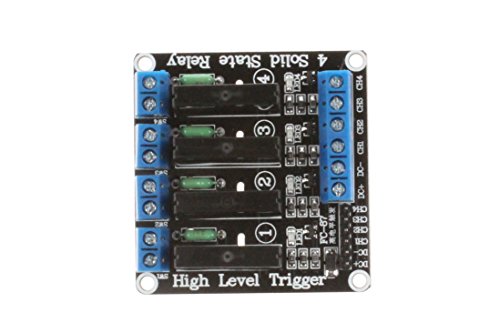

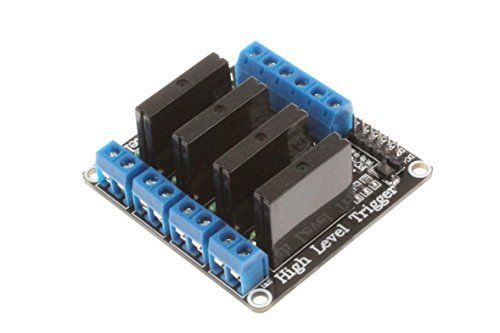

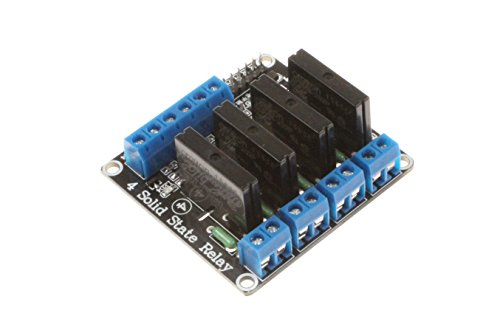

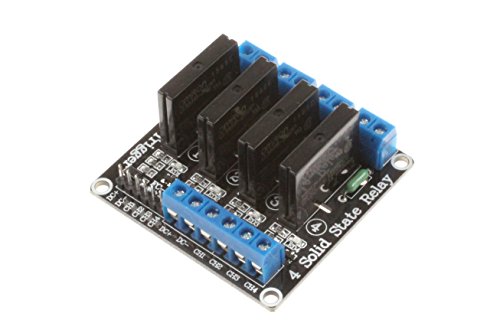

NOYITO 4-Channel Solid State Relay Module High-Level Trigger DC Control AC Load AC 240V 2A for PLC Automation Equipment Control, Industrial Control, Circuit Modification(4-Channel 12V)

0 5 4 9

9 calificaciones

Style:

4-Channel 12V

Disponibilidad:
En stock

Peso con empaque:
0.36 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Sobre este producto

Product Applications: PLC automation equipment control, industrial system control, Internet of Things control, electronic enthusiasts to develop experiments, all kinds of circuit modification.
With anti-reverse power function, power supply will not damage when the module reverse.
High-quality 2A AC solid state relay module. Module anti-interference ability, stable performance, trigger current only 2mA.
Each channel with relay on / off LED indicator.
Module load: AC240V 2A Max（Can only control the AC load, can not control the DC load.）
NOYITO 2-Channel 4-Channel Solid State Relay Module5V12V24V User Manual https://1drv.ms/b/s!AlzQUCOyZQhKgirLJYraxDJbAT25?e=D6LThG

U$S 13,63

49% OFF

U$S 6,99

U$S 13,63

49% OFF

U$S 6,99

Llega en 5 a 11 días hábiles

con envío

Tienes garantía de entrega

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago Aceptamos múltiples medios de pago para tu comodidad

Compra protegida

Disfruta de una experiencia de compra segura y confiable

¿Qué es Tiendamia?

Fácil, rápido y seguro

Garantía de entrega

100% garantizada

Devoluciones

dentro de los primeros 7 días de recibido

Pago 100% seguro

con todas las tarjetas

Información de Aduanas

para tu compra

Sé un Ciudadano de Tiendamia

para beneficios extra

Únete ahora

Ayuda y atención

Consulta el centro de ayuda en línea

Contáctanos

Tarjetas prepagas, debito, y credito

Paga hasta en 12 cuotas sin interés con tarjetas de crédito.

Conoce más detalles

Electrical parameters: Supply voltage: DC 12V; Quiescent current: 0mA; Maximum operating current: 48mA; Trigger mode: high-level trigger; Load voltage: AC 240V; Load current: 2A; Module life: 10 million times; Switch the maximum frequency: ≤ 5KHz; Product weight: 13g; Size: 57x55x25mm (LxWxH); Positioning hole size: 51.4x49.4mm; Trigger voltage range: 12V high-level trigger: DC 6-12V relay on; DC 0-5.5V relay off; Pacakage Included: 1x4-Channel Solid State Relay Module
