SKU/Artículo: AMZ-B07DGVT6TW
Hilitand

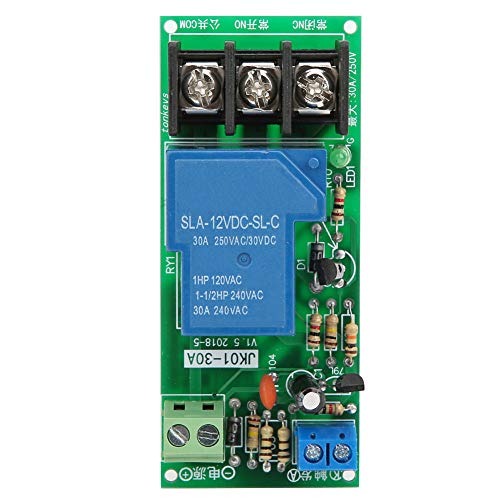

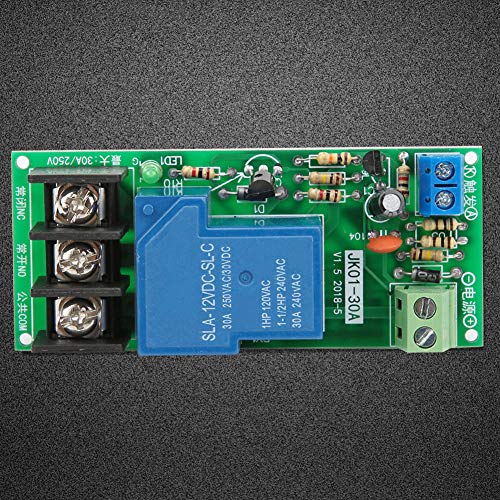

Hilitand Adjustable Timer Switch Module, DC 12V Input, 30A Load, 250VAC/30VDC, Manual Operation, Silver Contact, PCB Mount, Timer Relay
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto

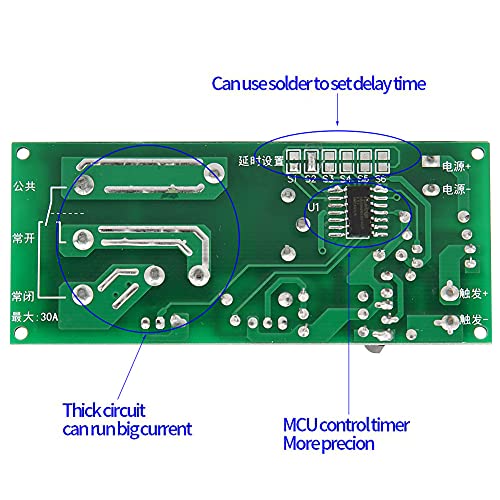

- Specifications: Time Delay: 0Seconds~60Minutes(adjustable) Time Delay Error: <2% Load Capacity: 30A 250VAC/30A 30VDC Size: 82*35mm / 3.22*1.37" Quantity: 1 Instruction: 1, Solder S 1~S5 welding joints in different ways according to the delay time table to set delay time. 2, When none joints are soldered, to connect, and again to disconnect. 3, Control is type , after , time delay will not be affected if withdraw or maintain . 4, If again during delay time, delay time will be restarted. 5, If terminals were connected directly without a button, each time powering on the board is equal to pressing button once. Function 1: Power on to connect load, and disconnect after delay time. Method: Connect terminals directly. Function 2: Power on ( disconnect) to enter time delay mode, and connect after delay time. Method: Connect terminals directly, solder S6 joints. Package Includes: 1 x Timer Relay Module
U$S 13,93
31% OFF
U$S 9,61
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 13,93
31% OFF
U$S 9,61
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 25 o más días hábiles
con envío
Tienes garantía de entrega
Conoce más detalles
STABILITY: it is a timer relay module with high precision, stable and performance APPLICATION: widely used on timer operating equipment, household electrical appliances, lighting delay modification, factory equipment, time delay control, etc AVAILABLE DELAY TIME: there is a wide range of delay time that you can set by connecting the S 1 to S5 welding joints GREAT : this timer switch module supports power supply reverse input 12V DC input voltage, and the load capacity is up to 30A250VAC or 30A30VDC
