SKU/Artículo: AMZ-B07NSJPX63
Hilitand

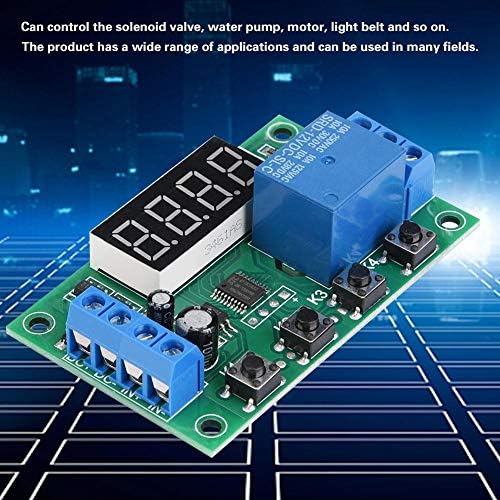

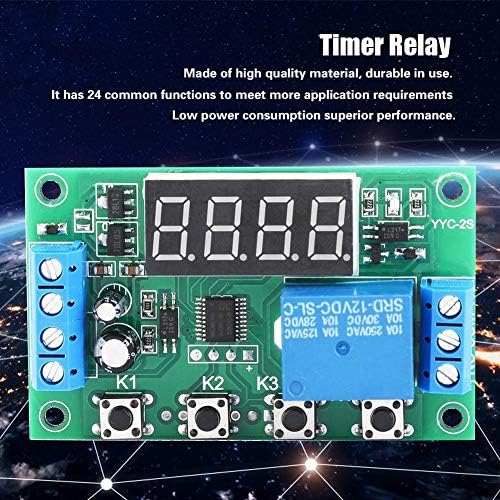

Hilitand LED Display Adjustable Timer Relay Automation Control Switch Module (12V, Green)
Detalles del producto
Disponibilidad:
Fuera de stock
Fuera de stock
Peso con empaque:
0.52 kg
0.52 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- Specification: Model: -2S Material: Plastic Weight: 30g/1.1oz Voltage: 5V, 12V, 24V (Optional) Output power: DC or AC load within 5A can be controlled Time range: 0.01 seconds to minutes can be adjusted at any time Description of wiring port: 1. DC+ : input the positive pole of DC power supply 2, DC- : input DC power supply cathode 3. IN+ : input is positive 4, IN- : input terminal negative 5. NO: the relay normally opens the interface, and the relay is suspended before absorption, and is connected with COM short after absorption 6. COM: relay public interface 7. NC: the relay normally closes the interface, and the relay is short connected with COM before absorbing and suspended after absorbing. Key setting instructions: Power on display "-------" means to enter standby state; Press K1 for the first time (it takes more than 1 second to be effective to prevent false triggering), and it shows: p-11: K2 adjusts the main mode, K3K4 adjusts the function Press K1 the second time, the screen will show: a001:k2 and K3 to adjust the first time A and K4 to adjust the decimal point (time unit). Press K1 for the third time, and the screen will show: b001:k2 and K3 to adjust the second time B and K4 to adjust the decimal point (time unit). Press K1 for the fourth time, and "--" indicates standby state Press K4 in standby state to permanently close/open the display and switch to low-power mode. Package List: 1 x Timer Relay
Fuera de stock
Selecciona otra opción o busca otro producto.
Conoce más detalles
in use: This Time Delay Module is Made of material, in use. Wildly application: The delay timer switch has a wide range of applications and can be used in many fields. Can control the solenoid valve, , motor, light belt and so on. Superior performance: Low power consumption, superior performance. in use: This Time Delay Module is Made of material, in use. Description of decimal point time unit: X.XX decimal point in the hundreds place, timing range: 0.01 seconds to 9.99 seconds XX.X decimal point in the tens place, timing range: 0.1 seconds to 99.9 seconds XXX has no decimal point, timing range: 1 second ~ seconds XXX. Decimal point in the ones place, timing range: 1 minute to minutes.
