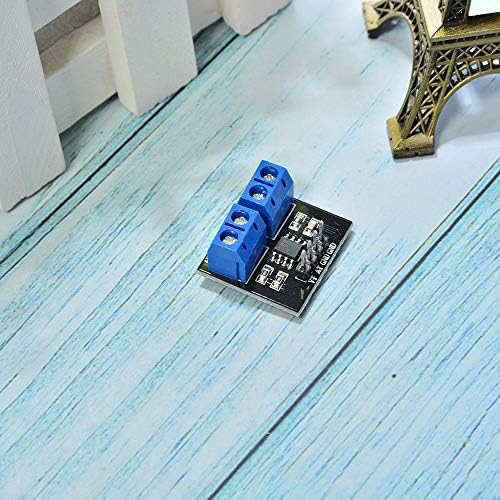

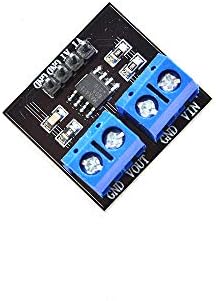

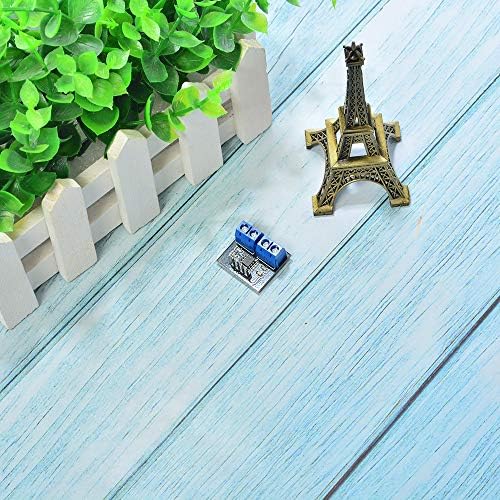

Comimark 1Pcs Max471 Voltage Current Sensor Votage Sensor Current Sensor for Arduino

Detalles del producto
Disponibilidad:
En stock
Peso con empaque:
0.36 kg
Devolución:
Condición
Nuevo
Producto de:
Amazon
Viaja desde
USA

Sobre este producto
  • This module can be used to test the current and voltage.The principle of voltage test based on principle of resistive voltage divider design, can make the red terminal connector input voltage to 5 times smaller. Arduino analog input voltages up to 5 v, the voltage detection module input voltage not greater than 5Vx5=25V (if using 3.3V systems, input voltage not greater than 3.3Vx5=16.5V). Arduino AVR chips have 10-bit AD, so this module simulates a resolution of 0.00489V (5V/1023), so the minimum voltage of input voltage detection module is 0.00489Vx5=0.02445V.The MAX471 chip on the board used to test the consume current of the load.Paramenter:Test Voltage range: DC3 – 25V (Arduino work on 5V) or DC3 – 16.5V (Arduino work on 3.3V)Test Current range: DC 0 – 3APackage Included:1 x Max471 Voltage Current Sensor Votage Sensor Current Sensor for Arduino
U$S 19,78
55% OFF
U$S 8,99

IMPORTÁ FACIL

Comprando este producto podrás descontar el IVA con tu número de RUT

U$S 19,78
55% OFF
U$S 8,99

¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!

Llega en 5 a 11 días hábiles
con envío
Tienes garantía de entrega

Conoce más detalles

This module can be used to test the current and voltage. Test Voltage range: DC3 – 25V (Arduino work on 5V) or DC3 – 16.5V (Arduino work on 3.3V) Test Current range: DC 0 – 3A Package Included: 1 x Max471 Voltage Current Sensor Votage Sensor Current Sensor for Arduino We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.
