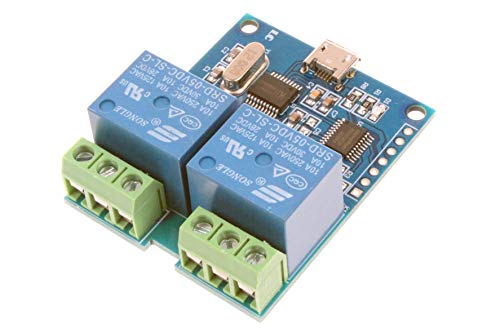

NOYITO 2-Channel Micro USB Relay Module USB Smart Control Switch USB Intelligent Control Switch (2-Channel Micro USB)
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- NOYITO 2-Channel Micro USB Relay Module is equipped with a stable USB to serial port chip and a microcontroller. It can use the serial port debugging software to send serial commands on the computer to control the opening and closing of the 2-channel relay.
- Onboard high performance microcontroller chip, CH340 USB control chip.With power LED indicator and relay status LED.On-board 2-channel 5V, 10A/250VAC, 10A/30VDC relay, long relay life, can work 100,000 times continuously.
- Module with overcurrent protection and relay diode freewheel protection.
- NOYITO 8-Channel Micro USB Relay Module ASIN：B09RGTSHHW . NOYITO 4-Channel Micro USB Relay Module ASIN：B09RGVQXXT
- NOYITO 5V 2-Channel Micro USB Relay Module User Manual, Documentation, Schematic https://1drv.ms/u/s!AlzQUCOyZQhKfnmId9Qnm2btrs8?e=38YgQq
U$S 15,94
31% OFF
U$S 10,99
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 15,94
31% OFF
U$S 10,99
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 5 a 11 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles
Features: 1. Onboard high-performance microcontrollers chip; 2. Onboard CH340 USB control chip; 3. Onboard power LED and relay status LED; 4. Onboard 2-way 5V, 10A / 250VAC, 10A / 30VDC relays, relay life can be a continuous pull 10 million times; 5. Module with overcurrent protection and relay diode freewheeling protection; Hardware introduction and description Board size: 50 x 40mm Board Interface Description: COM1: common; NC1: normally closed; NO1: normally open. COM2: common; NC2: normally closed; NO2: normally open. Communication protocol description: LC USB switch default communication baud rate: 9600BPS Open the first USB switch: A0 01 01 A2 Turn off the first USB switch: A0 01 00 A1 Open the second USB switch: A0 02 01 A3 Turn off the second USB switch: A0 02 00 A2 USB switch communication protocol Data (1) --- start flag (default is 0xA0) Data (2) --- switch address codes (0x01 and 0x02 represent the first and second switches, respectively) Data (3) --- operating data (0x00 is "off", 0x01 is "on") Data (4) --- check code Relay status query command: Send "FF" as hexadecimal (hex) to query. For example, if relays 1 and 2 are ON, and relays 3 and 4 are OFF, sending the relay query command "FF"will return: "CH1:ON \r\nCH2:ON \r\nCH3: OFF\r\nCH4:OFF\r\n" (Each channel relay is to return 10 byte sequence information) Usage Description: 1. Connect the USB relay module to the computer and install the CH340 USB to serial chip driver 2. Open the STC-ISP, SSCOM32 such serial debugging software, select the baud rate of 9600, in hexadecimal (hex) form send A0 01 01 A2 and A0 02 01 A3 can be opened the first and second relay ; Send in hexadecimal (hex) A0 01 00 A1 and A0 02 00 A2 can be turned off the first and second relay, respectively. Package Included: 1pcs NOYITO 5V2-Channel Micro USB Relay Module
