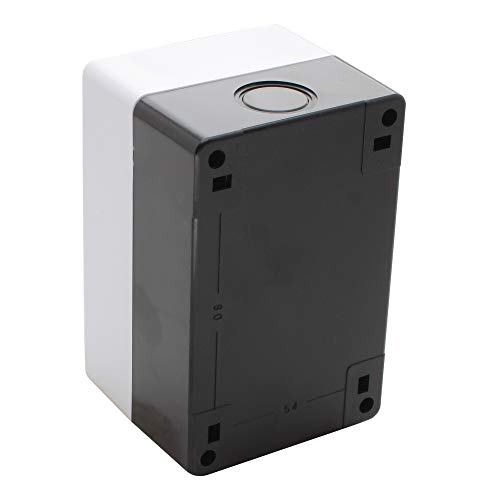

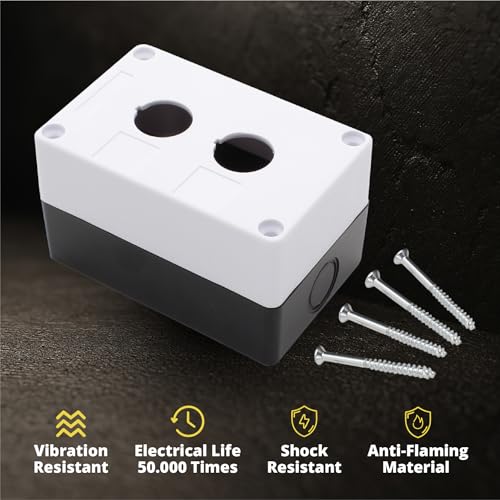

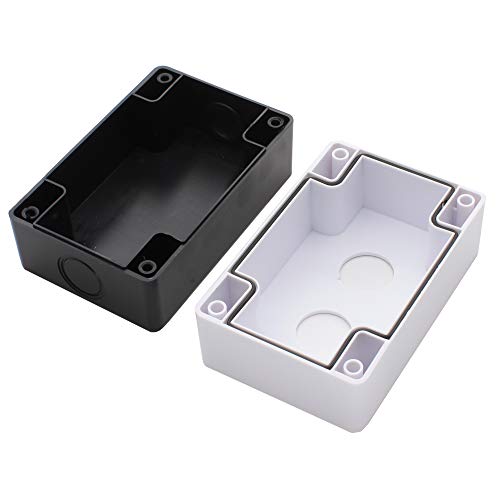

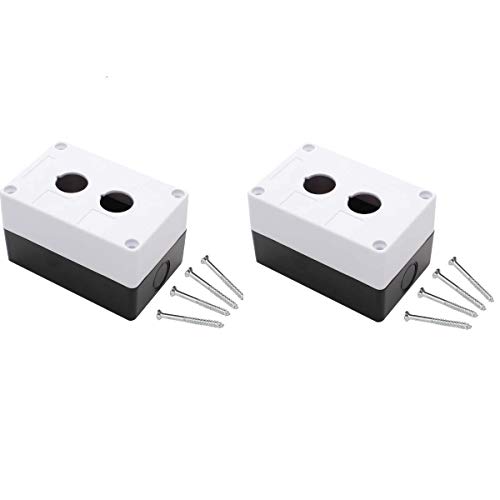

Push Button Switch Control Station Box - 22mm Double Push Button Hole, Dustproof and Waterproof, 1NO/1NC, Abs Material, JL-BX2 Model (Black and White) (2 Pack)

0 5 4 26

26 calificaciones

Size:

2 PACK

Style:

Double Push Button Hole JL-BX2

Disponibilidad:
En stock

Peso con empaque:
0.45 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Sobre este producto

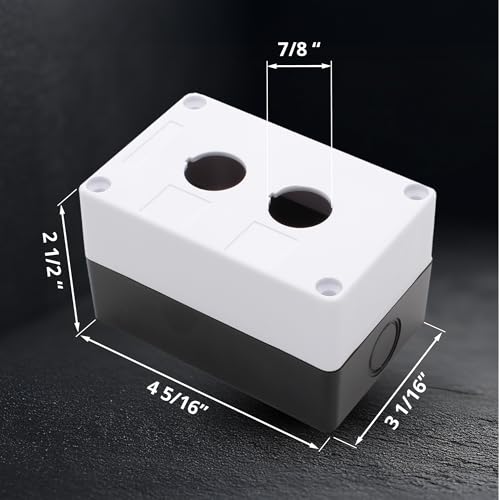

MAIN SPECIFICATIONS AND TECHNICAL DATA - Shopcorp Switch Control Box offers a double (2) hole push button with a 22mm button hole size and a screw hole diameter of 4mm. Surface mounted, waterproof sealed plastic electrical enclose push button box. The XB2-B01 empty plastic control station with 1 opening in 1 column is part of the XB2 range offered by Shopcorp. No batteries required.
WORKING CONDITION - Max Current: 10A; Max Voltage: 220V; Interface: Momentary Pushbuttons; Number of Buttons: 2; Contact Operation: 1NO/1NC; 1-Row vertical; Material: Polymeric (Plastic); Use With: Stainless Steel Lid Mounting Screws. Ambient temperature: between -25°C and 55°C; Protection Level: IP65; Certificate: CCC CE.
VERSATILITY - The push button switch control box can be used in a control station in order to protect the push button switch. Suitable for industrial control equipment circuits for controlling electromagnetic starters, contactors, relays and other circuits (there are only boxes in here, button switches are not included). Good for electronic projects, power supply units, amplifiers, etc. Suitable for emergency stop rotary switch.
INSTALLATION - Plastic boxes like Shopcorp Switch Control Box are most common and should be used with non-metallic cable wiring. This double-gang box is intended to hold one electrical device, like a switch or a receptacle. Plastic electrical boxes have their pluses and minuses. Because they are plastic, there is no need to attach a ground wire to it. Since it is made of a non-conductive material, switches and outlets cannot short out if they touch the side of the box.
STABLE WORKING PERFORMANCE - Better waterproof and anti-corrosion performance. Protect your instruments even under adverse conditions. Its main material, ABS or Acrylonitrile butadiene styrene, is a great plastic product to use since it is one of the most durable, and impact resistant. It is also relatively harmless since the plastic material doesn't contain any known toxic carcinogens.
