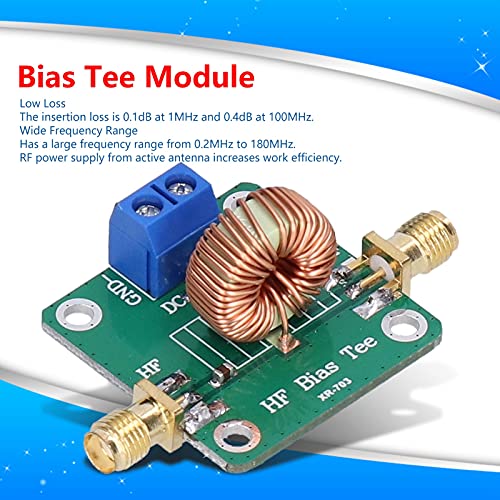

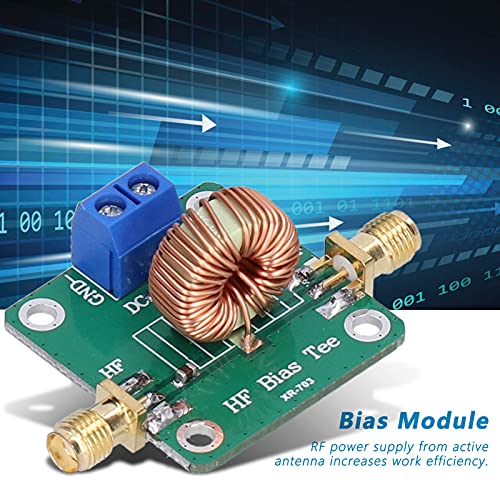

RF Bias Tee Module Eujgoov 0.2‑180MHz Frequency DC Feeder Filter with SMA-K Connector for Radio Antenna
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- WIDE FREQUENCY RANGE-- The wide frequency range of module from 0.2 to 180MHz ensures effective clutter filtering, very practical
- WIDE FREQUENCY RANGE-- The wide frequency range of module from 0.2 to 180MHz ensures effective clutter filtering, very practical

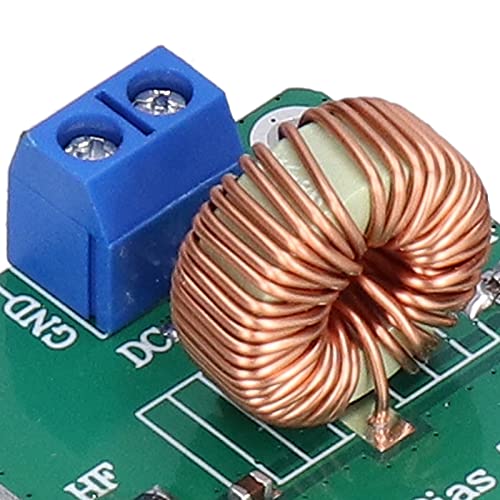

- DATA INPUT-- RF bias tee is equipped with high frequency magnetic ring, the communication data is injected through the RF terminal
- USED FOR-- Bias tee module is perfectly used for broadband amplifier, this filter module will reduce the working difficulty
- HIGH WORK EFFICIENCY-- RF power supply from active antenna will largely increase work efficiency with high stability
- LOW LOSS-- This bias tee module enables low loss, 0.1dB at 1MHz and 0.4dB at 100MHz, promising quality
U$S 22,84
55% OFF
U$S 10,38
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 22,84
55% OFF
U$S 10,38
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 5 a 11 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles

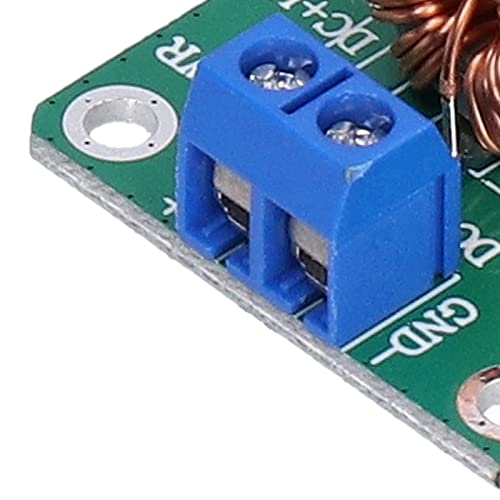

Feature: 1. BIAS TEE MODULE: Suits perfectly for broadband amplifier, this filter module will reduce the working difficulty. 2. WIDE RANGE: The wide frequency range from 0.2 to 180MHz ensures effective clutter filtering, very practical. 3. ACTIVE ANTENNA: RF power supply from active antenna will largely increase work efficiency with high stability. 4. LOW LOSS: This bias tee module enables low loss, 0.1dB at 1MHz and 0.4dB at 100MHz, promising quality. 5. DATA INPUT: Adopting high frequency magnetic ring, the communication data is injected through the RF terminal. Specification: Item Type: Bias Tee Module Material: Printed Circuit Board Frequency Range: 0.2 -180MHz Insertion Loss: 0.1dB at 1MHz, 0.4dB at 100MHz. Maximum Voltage: 30V Maximum Current: 3A RF Connector: SMA-K (male screw inner hole) System Impedance: 50 ohm Wiring: DC: External DC power supply. RF: Radio frequency terminal (this port can only transmit radio frequency signals). RF+DC: RF DC bias (this port can transmit RF and DC bias). GND-: Common ground terminal for DC power supply. VCC+: The power supply terminal of DC power supply. Package List: 1 x Bias Tee Module Note: Don't overload.
