UL Listed 15 Amp 22mm Momentary Push Button Switch White 24V 2NO DPST LED Light Stainless Steel 304 Waterproof IP67 7/8'' with Wire Socket

0 5 4 7

7 calificaciones

Size:

Momentary 24V

Color:

White

Detalles del producto

Disponibilidad:
En stock

Peso con empaque:
0.36 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Viaja desde
USA

Sobre este producto

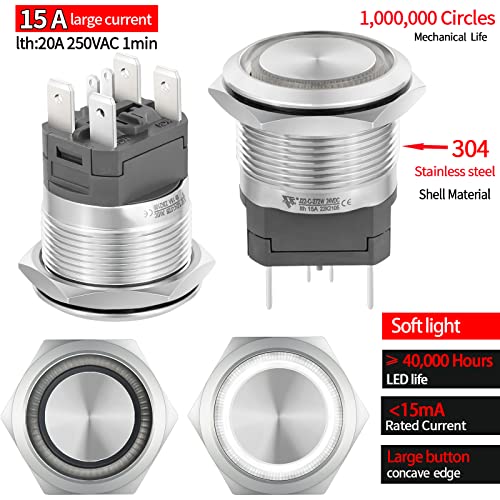

✅【20 Amp; Latching】Push Button Switch Current Rating:20 Amp 250V AC,Operating Current: 15 Amp; LED lamp voltage: 24V DC/AC. Hole size required: 7/8 inch / 22mm, Momentary Push Button Switch: Push and Hold-ON, Release-OFF.

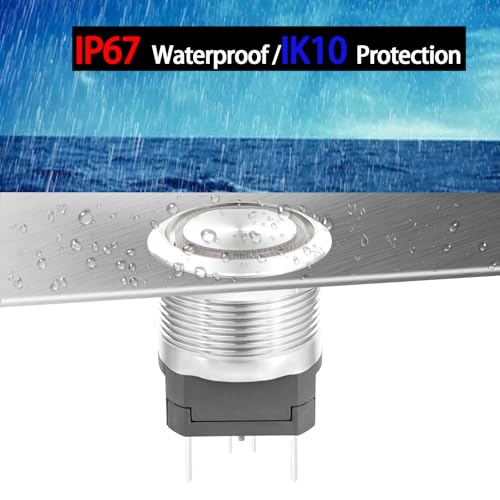

✅【UL Listed】Our push button switch have UL Listed,CE and CCC Listed. ♥♥♥ IP67 waterproof switch protection can be used in wet or dusty enviroment. Shell Material: Stainless Steel 304; Head Pressing Material: Stainless Steel 316. UL Listed passed on June 6, 2025.(Certificate NO:UL-US-L307512-214-70706102-1). Due to production batch reasons, some products did not have UL labeling.UL listed is genuine and valid.
✅【LED Life】The push button light switch light ring adopts a unique design, with a toothed circular transparent cover, making the light source more bright and eye-catching. LED light life: 40000 hours. Using AC/DC LED lamp, the terminals have no difference of anode and cathode. Button mechanical life: 1,000,000 cycles.

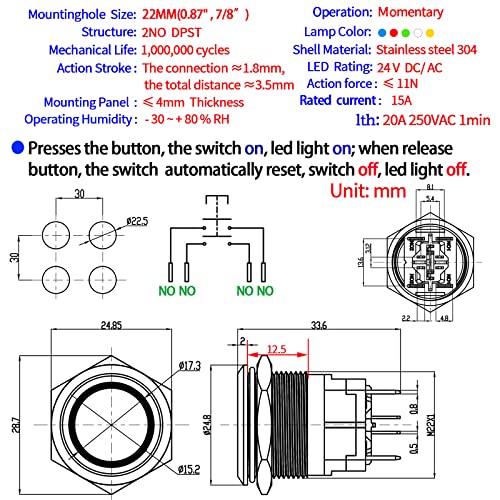

✅【 2NO Contact】Contact material: Silver Alloy, DPST ,2 Normally Open (2NO); 2-Way. 4.8 mm wide X 0.8 mm thickness terminal pin for 15A high current use. Green wire connect the device input and output, and the red and black wires (LED polarity free) connect to the power supply.
✅【Package】Package include : 1 * Push Button Switch, 1 * Wire Socket Plug 1.5mm². Waterproof switch is widely used: pc power button,marine switch,car switch,Household Appliances.
