SKU/Artículo: AMZ-B09QZWT1ZX

Waveshare

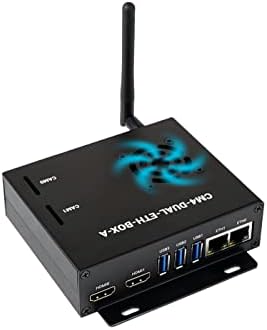

Dual Gigabit Ethernet Mini-Computer Based on Raspberry Pi Compute Module 4, with CM4 Dual Gigabit Ethernet Base Board and Metal Case with Cooling Fan,ETH/CSI/DSI/RTC/HDMI/Micro SD/USB Interfaces

Disponibilidad:
En stock

Peso con empaque:
0.58 kg

Devolución:
No

Condición
Nuevo

Producto de:
Amazon

Sobre este producto

Dual Gigabit ETH computer based on CM4: Designed for Raspberry Pi Compute Module 4 ,Waveshare CM4-DUAL-ETH-BASE inside, fast and easy to build a mini-computer
Rich interfaces:providing interfaces including: ETH/CSI/DSI/RTC/HDMI/Micro SD/USB
Precise cut-out with clear label:each cut-out is completely aligned with the connector
Cooling fan included:comes with cooling fan, combined with the airflow vent, better heat dissipation. Wall Mount Support：Wall mount holes on two sides, handy for mounting.
Application：Binocular Vision Raspberry Pi Projects, Or Other Industrial Context

U$S 152,98

44% OFF

U$S 84,99

U$S 152,98

44% OFF

U$S 84,99

Llega en 15 a 25 días hábiles

Tienes garantía de entrega

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago Aceptamos múltiples medios de pago para tu comodidad

Compra protegida

Disfruta de una experiencia de compra segura y confiable

¿Qué es Tiendamia?

Fácil, rápido y seguro

Garantía de entrega

100% garantizada

Devoluciones

dentro de los primeros 7 días de recibido

Pago 100% seguro

con todas las tarjetas

Información de Aduanas

para tu compra

Sé un Ciudadano de Tiendamia

para beneficios extra

Únete ahora

Ayuda y atención

Consulta el centro de ayuda en línea

Contáctanos

Tarjetas prepagas, debito, y credito

Paga hasta en 12 cuotas sin interés con tarjetas de crédito.

Conoce más detalles

Overview Dual Gigabit Ethernet Mini-computer based on Raspberry Pi Compute Module 4 (CM4 is NOT included), Waveshare CM4-DUAL-ETH-BASE inside, fast and easy to build a mini-computer CM4-DUAL-ETH-BASE Board Specifications CM4 socket: suitable for all variants of Compute Module 4 Ethernet: Dual Gigabit Ethernet RJ45 USB: USB 3.2 Gen1 x 3 Pin header: 40PIN GPIO header x 1 HDMI: HDMI x 2, supports 4K 30fps output DSI display: MIPI DSI display port x 1, 15pin 1.0mm FPC connector CSI camera: MIPI CSI-2 camera port x 2, 15pin 1.0mm FPC connector Power input: 7V-36V Fan : 5V/12V, allows speed adjustment and measurement RTC : Real-time clock with battery socket and ability to wake Compute Module 4 SD card slot: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants Package Content CM4-DUAL-ETH-BASE Board x1 Metal case (top and bottom) x1 Fan-4010-PWM-12V x1 Screwdriver x1 Screws pack x1 12V 2A power adapter x1
