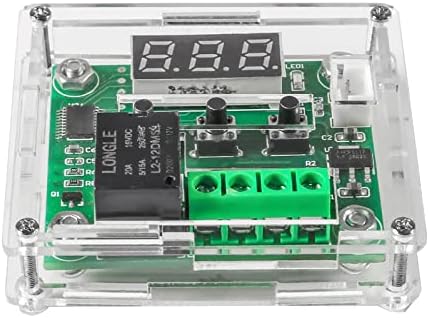

6pcs W1209 12V DC Digital Temperature Controller Board with Case Micro Digital Thermostat -50-110°C Electronic Temperature Temp Control Module Switch with 10A One-Channel Relay and Waterproof Blue
Style:
12V BLUE
Disponibilidad:
En stock
En stock
Peso con empaque:
0.42 kg
0.42 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- 【W1209 Features】The W1209 thermostat module controller has a sensor input, keys, LED display, and a relay.Completely machine patch, wave connecting, stable performance, good consistency.
- 【Embedded CPU Chip】The XH-W1209 led display digital thermostat module embedded CPU chip (MCU), is more intelligent, lower power consumption; Automatic power set memory, MCU built-in EEPROM memory unit.
- 【W1209 Temperature Controller Parameter】Temperature range: -50-110°C; Control precision: 0.1 celsius.Input power (DC): 12V; Measuring inputs: NTC (10K 0.5%) ; Waterproof sensor: 0.5M; Output: 1 channel relay output, capacity: 10A; Power consumption: Static current: 35mA; Current: 65mA.
- 【Waterproof NTC Probe】The NTC probe is waterproof and can control the temperature, allowing to control heating or cooling.(The wood laminate case is the clear plastic case. You need to tear the wood outside layer off carefully, the outside layer is very thin, which can protect the inside to prevent scratches; And you need to assemble and install the case by yourself, it comes disassembled with tiny bolts and nuts.)
- 【Package Includes】6pcs W1209 with case 12v dc digital temperature controller board.(Ps: The product is not assembled, if you need assembly instructions or if you encounter any problems during use, you can contact us at any time. Thank you for your support.)
U$S 32,38
44% OFF
U$S 17,99
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 32,38
44% OFF
U$S 17,99
Llega en 5 a 11 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles
6pcs W1209 with case 12V DC digital temperature controller board micro digital thermostat -50-110°C electronic temp control module switch with 10A One-Channel relay and waterproof NTC probe Specifications: Model: XH-W1209 with case Dimensions: 48.5 x 40 mm Temperature control mode: ON or OFF Temperature range: -50-110°C Resolution: when temperature is 0.1 degree, the resolution is -9.9 - 99.9, other temperature segment is 1 degree. Control accuracy: 0.1 degree Hysteresis accuracy: 0.1 degree Refresh rate: 0.5 s High temperature protection 0 - 110 degree centigrade Supply voltage: DC 12V Static current: less than 35MA, attract current less than 65MA Output voltage: DC 12V Output power: 10A One-Channel relay Measurement input: NTC, 10K 0.5% waterproof sensor Requirements: -10 - 60 degree centigrade, humidity: 20% - 85% Using Method: Connect the power supply and equipment, the measuring temperature is displayed Press the "SET" button, press " + or - " to set the desired temperature (long press " + or - " to quickly increase or decrease) Press "SET" to confirm the setting and return, controller automatically performs the relay ON/OFF The thermostat output is 10A relay, meet a variety of high-power loads. LED Indicator: LED off indicates the relay off; Lighting, indicates the relay is closed. Digital LED Tubes: "LL" indicates sensor open, "HH" indicates overrange, the relay will be forcibly disconnected; "---" indicates high temperature alarm Long press the "SET" button to enter the main menu settings, press " + or - " to switching between P0-P6, then long press "SET" or 10 seconds without keystrokes to confirm the setting and return Package includes: 6 *W1209 12V DC digital temperature controller board with case
