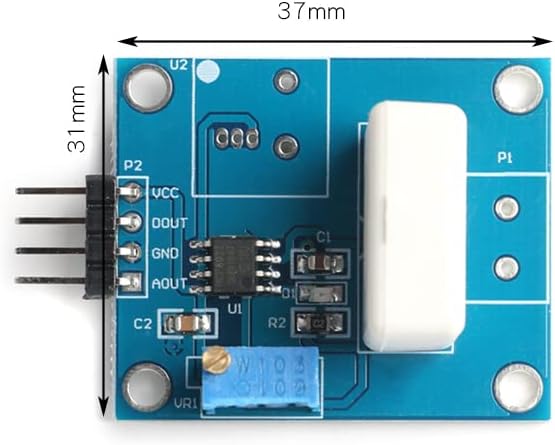

JESSINIE WCS1800 Hall Current Sensor Detector 35A Current Sensor Module Board Short Circuit Overcurrent Protection Module Sensor with Overcurrent Lamp

Detalles del producto
Disponibilidad:
En stock
Peso con empaque:
0.36 kg
Devolución:
Condición
Nuevo
Producto de:
Amazon
Viaja desde
USA

Sobre este producto
  • WCS1800 Hall current sensor has two main functions. The first function is the analog signal followed by the operational amplifier, which is suitable for A/D conversion; the second function is the switching signal, which can be preset The current limit value, when the actual current value is greater than the preset current value, the switch signal will change from low level to high level, and there is an LED indicator indicator. Simple and easy to use
U$S 17,39
31% OFF
U$S 11,99

IMPORTÁ FACIL

Comprando este producto podrás descontar el IVA con tu número de RUT

U$S 17,39
31% OFF
U$S 11,99

¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!

Llega en 5 a 11 días hábiles
con envío
Tienes garantía de entrega

Conoce más detalles

Working voltage: DC DC5V, Linearity: K = 60mV/A Current detection range: DC: 35A ;AC:25A (suitable for analog output), Limitable current range: 0.5A-35A (suitable for switching value output) With overcurrent signal indicator light, With mounting holes, it is convenient for firmware installation Sampling current conversion analog voltage signal output, can be connected to ADC;TTL level signal output, can be connected to the microcontroller IO port control The output signals are: analog voltage signal and switching value signal
