SKU/Artículo: AMZ-B0BR8WPRP2

FTVOGUE

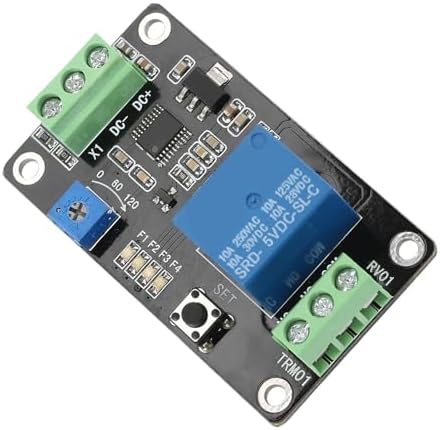

Timer Relay Module with Delay On Off Cycle Mode Self Locking Time Switch DC 5V 12V 24V for Industrial Automation

Size:

DC5V

DC12V

DC24V

DC5V

Detalles del producto

Disponibilidad:
En stock

Peso con empaque:
0.36 kg

Devolución:
No

Condición
Nuevo

Producto de:
Amazon

Viaja desde
USA

Sobre este producto

Specification: Working voltage: DC 5V, 12V, 24V (Optional) Working current: <80mA at 5V (<1mA when the relay is not operating) <35mA at 12V <1mA when the relay is not operating) <18mA at 24V (<1mA when the relay is not operating) Load capacity: -normally open port: DC 0-30V/10A, AC 0-250V/10A -normally closed port: DC 0-28V/10A, AC 0-125V/10A Working temperature: -20~60 (limit range -30~70) Size: 60*35*20mm / 2.36*1.38*0.79in Package weight: Approx. 23g Module function: The user can select one of the following four functions by pressing the button. The delay time can be selected by adjusting the potentiometer. The delay time T1 can be adjusted between 0.1 second and 120 seconds. Function F1: Power-on delay pull-in: After the delay of T1 from the start of power-on, the relay pulls in and sends a high-level pulse to the X1 interface at any time. This function resets and restarts. Function F2: The power-on delay is disconnected: the relay is closed when the power is turned on. After the T1 time is closed, the relay is disconnected, and a high-level pulse is given to the X1 interface at any time. This function is reset and restarts. Function F3: Self-locking relay mode: a high-level pulse is sent to the relay X1 interface, the relay is closed, and a high-level pulse relay is turned off. Function F4: Level mode: When the power is turned on, the relay is disconnected, and a high level is sent to the X1 interface. The relay immediately picks up. After the X1 port disappears, the relay still pulls in. When the pull-in time T1 arrives, the relay turns off. Package list: 1 * Delay Timer Relay

U$S 19,70

49% OFF

U$S 10,10

U$S 19,70

49% OFF

U$S 10,10

Llega en 15 a 25 días hábiles

Tienes garantía de entrega

Medios de pago

Cantidad

Medios de pago

Conoce más detalles

With delay ON, delay OFF, self-locking and delay function. With delay ON, delay OFF, self-locking and delay function. The parameters can be saved, and the setting contents are not lost when power off. Relay load output: There are 3-wire interfaces, all of which have terminal blocks. With delay ON, delay OFF, self-locking and delay function. 【 to Use】The product is manufactured in accordance with strict quality standards before leaving the factory, with good safety performance and can be used with confidence.
