SKU/Artículo: AMZ-B0CCGGGRW8

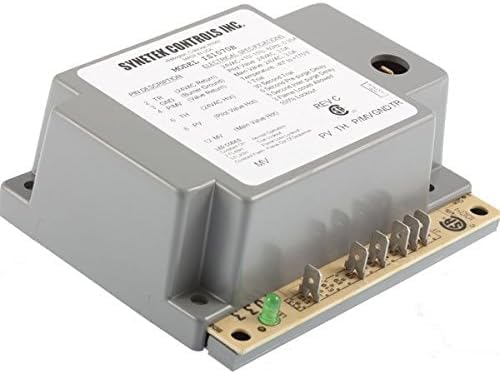

Synetek Model IS1070B Ignition Control Inc. Module Made is USA OEM Original Equipment Ignition Control for fireplaces, stoves, Gas Log Set and Other appliances.
En stock
0.63 kg
Sí
Nuevo
Amazon
- Synetek controls original equipment module
- Model IS1070B ignition control module
- Fits multiple applications using this exact module only.
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
Conoce más detalles
The IS1070B Ignition Module Control is a SYNETEK CONTROLS INC replacement ignition module for many heating systems manufactured by various manufacturers and sold under several brand names. Service Information: The IS1070B SYNETEK control module can be used to replace the SYNETEK Model IS114S and IS114S rA Modules The wire harness from the old IS114S Series will need to be adapted with 1/4 Female spade connector to be used on the new IS1070B Series module Pin Out will be as Follows: Model IS114S Wire Locations to IS1010B Wire Locations IS114S Red Wire Location Pin 1 Equals Pin 12 IS1010B Wire Location IS114S Green Wire Location Pin 2 Equals Pin 3 IS1010B Wire Location IS114S Black Wire Location Pin 4 Equals Pin 6 IS1010B Wire Location IS114S Black Wire Location Pin 5 Equals Pin 8 IS1010B Wire Location IS114S White Wire Location Pin 6 Equals Pin 2 IS1010B Wire Location IS114S White Wire Location Pin 7 Equals Pin 4 IS1010B Wire Location Wire colors may be different on some installation so always refer to the Control Pin Index before stating operation
