Tuopuone

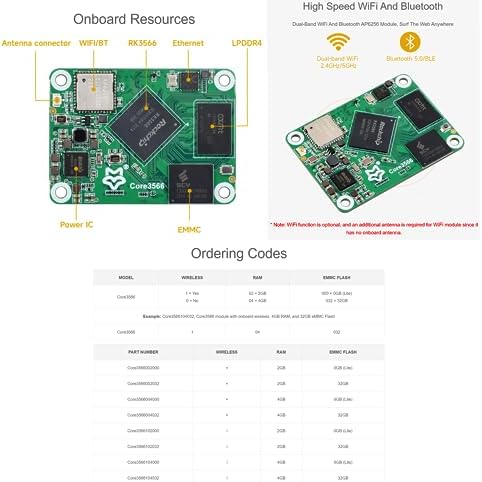

Core3566 Module, Rockchip RK3566 Quad-Core Processor, Compatible with Raspberry Pi CM4, 4GB RAM, 32GB eMMC Flash (Core3566104032)
Color:
4GB RAM +32GB(Lite) eMMC Flash With Wireless
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto

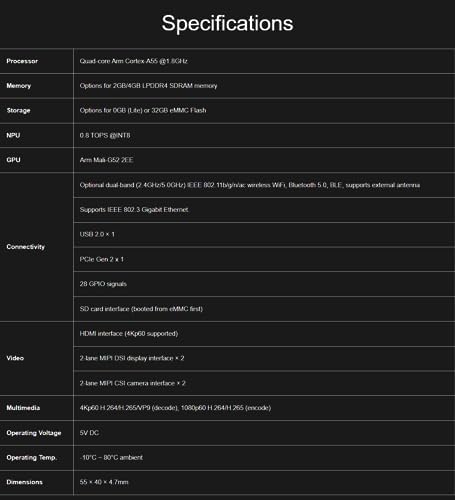

- RK3566 Quad-core 64-bit Cortex-A55 processor, frequency up to 1.8GHz, with 22nm process, features low power consumption and high performance
- Integrated dual-core architecture ARM G52 GPU, high performance VPU and high efficiency NPU
- The GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan1.1
- The VPU can support 4K 60fps H.265/H.264/VP9 video decoding and 1080P 60fps H.265/ H.264 video encoding
- The NPU with computing power of 0.8Tops supports one-click switching of mainstream frameworks like Caffe/TensorFlow
U$S 145,78
60% OFF
U$S 58,31
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 145,78
60% OFF
U$S 58,31
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 25 o más días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles
Introduction The Core3566 development board is equipped with the Rockchip RK3566 quad-core processor, integrated with a dual-core architecture GPU and a high-performance NPU, supporting up to 0.8T computing power. It supports various video input and output interfaces and has powerful computing and graphics processing capabilities. The board supports 8GB of RAM, 2.4/5G WIFI, and 4G wireless network communication. It also has abundant interface extensions, making it suitable for a wide range of applications, including IoT devices, smart audio, smart displays, industrial control, and educational devices. Equipment Preparation 1. Core3566 development board 2. Waveshare's CM4-IO-BASE-B baseboard 3. USB Type-A to Type-C data cable 4. 5V/3A Type-C power adapter(Core3566 must be powered on using the power adapter to prevent insufficient power supply) 5.Display or TV with HDMI interface, and HDMI cable 6. 100M/1000M Ethernet cable and router 7. USB wireless/wired mouse and keyboard 8. USB to Serial Module 9. USB card reader and TF card (minimum capacity of 8GB) Note: The default baud rate for Core3566 is 1500000. Some USB to serial chips may not support this baud rate, and there may be differences among different series of the same chip. Therefore, it is important to confirm the compatibility before purchasing. We recommend using CH343, FT232, and CP2102 serial modules, and do not recommend using PL2303 and CH340 serial modules. PACKAGE CONTENT 1. Core3566 module (Core3566104032) x1 2.Free WiFi antenna x1
