250mm Effective Stroke Length Linear Rail Guide Double Optical Axis Linear Slide Rail Ballscrew SFU1605 with Manual Sliding Table for CNC Router Machine (Size:250mm)

Size:

250mm

Style:

Handwheel Drive

Disponibilidad:
En stock

Peso con empaque:
2.58 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Sobre este producto

The Linear Guide Material: made of high quality metal, surface oxidation treatment, high hardness and excellent performance.
Effective Travel: 250mm Effective Travel, Level Ballscrew: C7, Ballscrew Type: SFU1605 ( diameter: 16mm, pitch of screw: 5mm ) Lead: 5mm (the lead screw can move 5mm in one turn), Move: Hand Crank; 4pcs M5 threaded hole on the moving block to fix the workpiece.
High Precision: Linear Guide Repeat positioning accuracy of ±0.03mm, linear slide rail with high precision smooth movement.
Load: Heavy load resistance SFU1605, Horizontal maximum load capacity: 30kg; Vertical maximum load capacity: 15kg;
Widely used for CNC Router Machine, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, production machinery, mechanical equipment positioning and movement.

U$S 178,18

55% OFF

U$S 80,99

U$S 178,18

55% OFF

U$S 80,99

Llega en 11 a 15 días hábiles

Tienes garantía de entrega

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago Aceptamos múltiples medios de pago para tu comodidad

Compra protegida

Disfruta de una experiencia de compra segura y confiable

¿Qué es Tiendamia?

Fácil, rápido y seguro

Garantía de entrega

100% garantizada

Devoluciones

dentro de los primeros 7 días de recibido

Pago 100% seguro

con todas las tarjetas

Información de Aduanas

para tu compra

Sé un Ciudadano de Tiendamia

para beneficios extra

Únete ahora

Ayuda y atención

Consulta el centro de ayuda en línea

Contáctanos

Tarjetas prepagas, debito, y credito

Paga hasta en 12 cuotas sin interés con tarjetas de crédito.

Conoce más detalles

Product Name: 250mm Effective Stroke Length Linear Rail Guide Double Optical Axis Linear Slide Rail Ballscrew SFU1605 with Manual Sliding Table for CNC Router Machine Linear Stage Actuator Parameter: Effective Travel Length: 250mm/9.8" Type: Double Optical Axis System Moulde Ballscrew Type: SFU1605; Diameter:16mm, Pitch of Screw: 5mm Lead: 5mm (the lead screw can move 5mm in one turn) Move: Hand Crank 4pcs M5 threaded hole on the moving block to fix the workpiece Level Ballscrew: C7 Stepper Motor: Not Included Weight: about 2247g Widely used for CNC Router Machine, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, production machinery, mechanical equipment positioning and movement. Package Included: 1Kit 250mm Handwheel Manual Slider 3pcs Allen Wrench Please Note: Any question or problem, do not hesitate to contact us, we will reply you within 24 hours As Manual measurement, please allow slight errors on size The color may exist slight difference due to different screen displays

250mm Effective Stroke Length Linear Rail Guide Double Optical Axis Linear Slide Rail Ballscrew SFU1605 with Manual Sliding Table for CNC Router Machine (Size:250mm)

Compra protegida

Conoce más detalles

Yeebyee 250mm Effective Stroke Length Linear Rail Guide Double Optical Axis Linear Slide Rail Ballscrew SFU1605 with Manual Sliding Table for CNC Router Machine (Size:250mm)

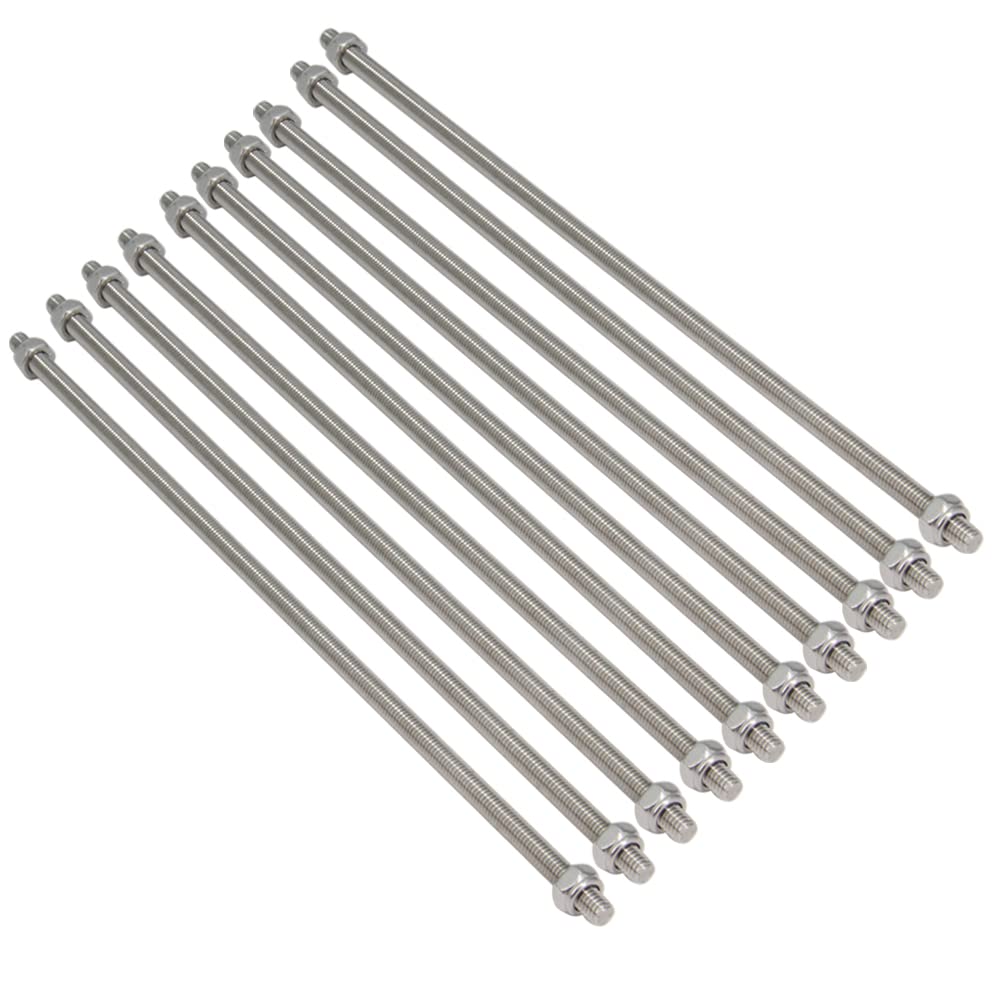

Yeebyee M12 x 250mm 304 Stainless Steel Fully Threaded Rod, Right Hand Threads 1.75mm Pitch with 10pcs Lock Nuts, 5pcs/Pack
