Generic Super RDM6300 3.3-5V RFID Card Reader Module 125khz UART Serial Output Compatible with PC, Laptop, Tablet, Smartphone
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- 3.3-5V RFID Card Reader Module 125khz Card Reader Built-in Antenna RF Module UART Serial Output Super RDM6300
U$S 20,79
55% OFF
U$S 9,45
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 20,79
55% OFF
U$S 9,45
Llega en 15 a 25 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles

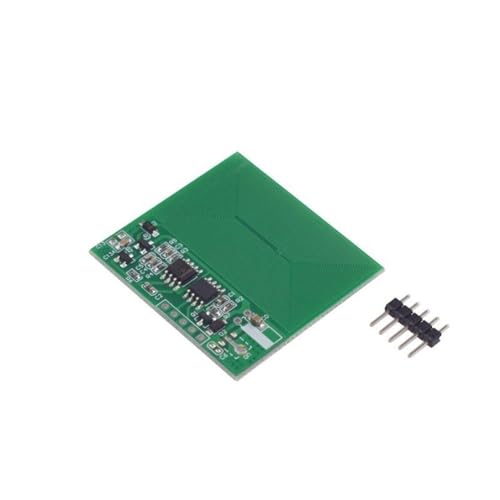

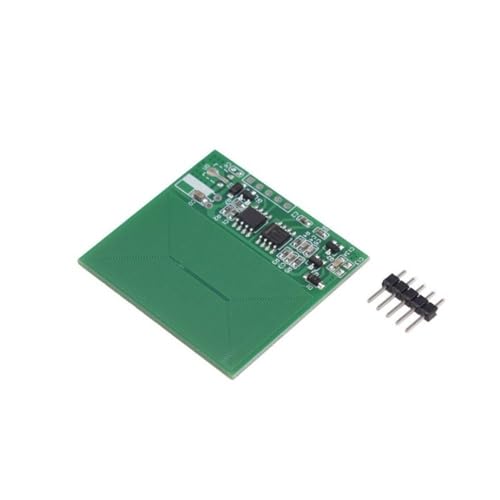

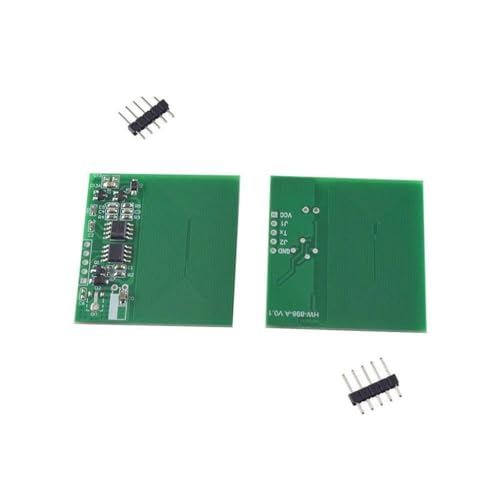

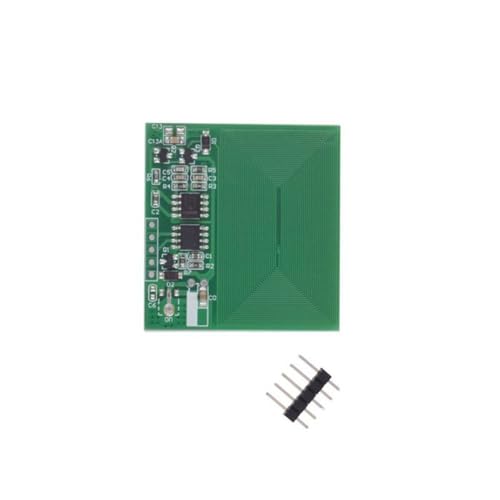

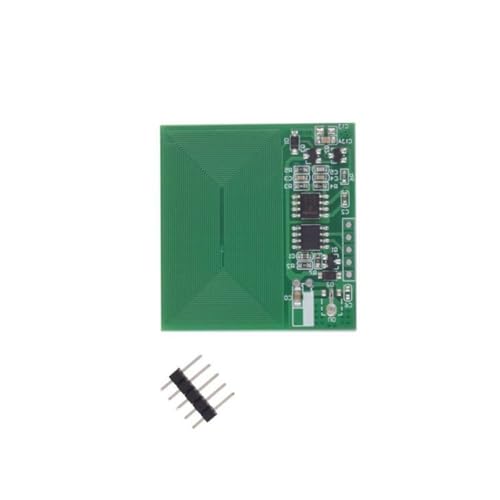

Descriptions: 1. This product is a 125KHz RFID swipe decoding module, and integrates the antenna in the PCB. 2. The interface adopts 5PIN interface, which are VCC, J1, Tx, J2, GND. At the same time, Schottky diode is added to the power supply for anti-reverse connection protection. 3. This module is suitable for most low frequency ID cards. 4. The module has 3 output modes: UART output, IO direct output, and triode open-drain output. 5. Wide application Specification: Product Name: Integrated Antenna RF Card Swipe Module Supply voltage: 3.3-5V (5V recommended) Operating current: less than 50mA, the typical value is 35mA. Serial port parameters: baud rate 9600 bit/s, data bit 8 bit, no parity check, 1 bit stop bit Interface function: The module adopts three kinds of interface output 1. Pin Tx uses UART to output data, the output data format is 10 ASCII codes + 1 space, and the card number is 10 data (see Figure 1). The baud rate setting is sampled in the manner of Figure 1 to receive data. 2. If the product does not need to use the UART to read the specific card number, you can directly read whether the card swipe is successful through the IO port of J2. When the card is swiped successfully, it will be accompanied by UART data output. During the data output period, the J2 port remains high. After the data output is completed or in the idle state, it always outputs a low level. The J1 port and the J2 port have an opposite level, but the port is an open-drain output, and the corresponding level can be output through a pull-up resistor. It can also be connected to 12V load and 24V load. This port is designed to be upgraded for subsequent products, driving relays, etc. The sink current of the port cannot exceed 100mA. (If the custo
