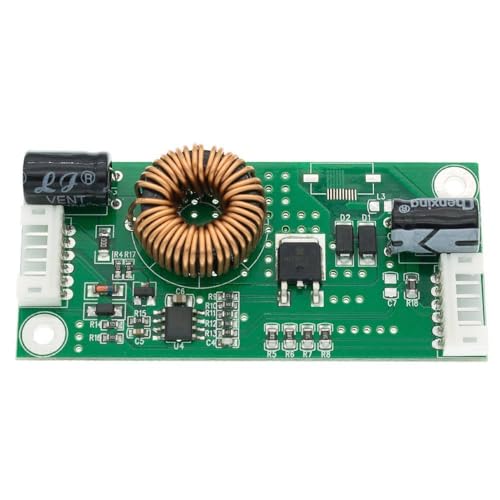

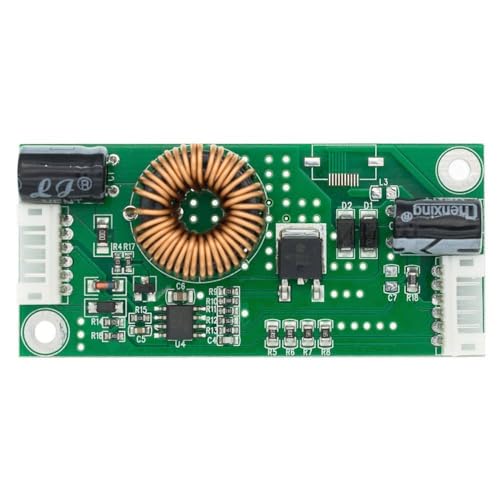

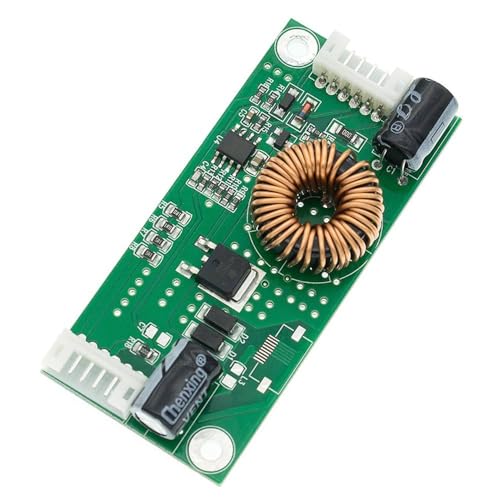

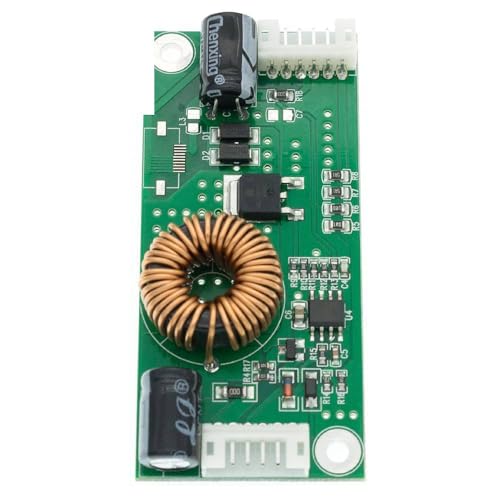

Generic LED LCD Universal TV Backlight Constant Current Backlight Lamp Driver Board Boost Step Up Module 10.8-24V to 15-80V 14-37 Inch
Disponibilidad:
En stock
En stock
Peso con empaque:
0.97 kg
0.97 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- LED LCD Universal TV Backlight Constant Current Backlight Lamp Driver Board Boost Step Up Module 10.8-24V to 15-80V 14-37 Inch
U$S 19,78
55% OFF
U$S 8,99
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 19,78
55% OFF
U$S 8,99
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 11 a 15 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles

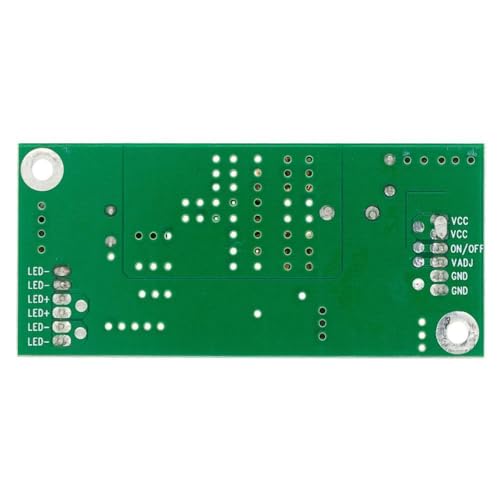

Descriptions: 1.14-37 inch LED Backlight Lamp Driver Board Constant current board 2.BOOST structure,Conversion efficiency reached more than 92% 3.Low heat of the Device, stability,have a longer service life 4.The PCB is small,Slim design,Current control error within ± 5% 5.This product is constant current board, voltage is automatically adapted Specifications: Common Electronic symbolic code of Backlight: VCC: The positive of voltage supply, Circuit supply voltage (voltage is usually 12V or 24V) ON/OFF,ON,EN,ON_BL: Switch signal pin PWM,PDIM,VDAJ,BL-PWM: Brightness adjusting pin GND: Ground (negative electrode) LED+: the positive electrode of Light emitting diode (lamp) LED-: the negative electrode of Light emitting diode (lamp) The temperature rise is controlled at about 25degrees (Temperature rise = device surface temperature - ambient temperature) Limit parameters: When to 24V input: Vout = 75V Iout= 720mA um or 60W When to 12V input: Vout = 75V Iout = 400mA um or 30W You can use the 12V power supply to reduce the system cost Warm Tip Limit parameter refers to the the um capacity when product in the application process.In fact,please under the limit parameters to ensure product reliability when using. PCB size: about 6.80*3.0cm/2.68"*1.18" Notes: Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon. And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Package Included: 1PC*14-37 Inch LED Lamp Driver Board Step Up LCD TV Constant Current Backlight
