SKU/Artículo: AMZ-B0D6ZBS4C5

Ftvogue

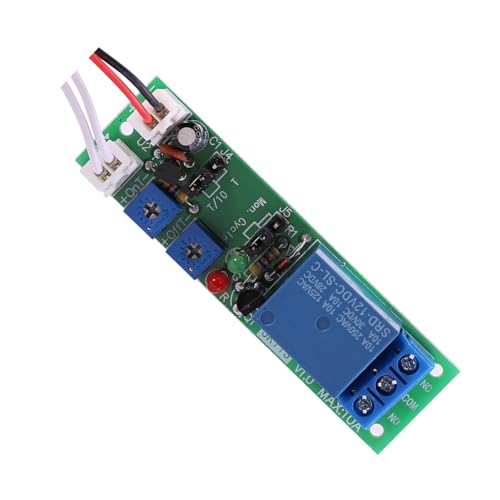

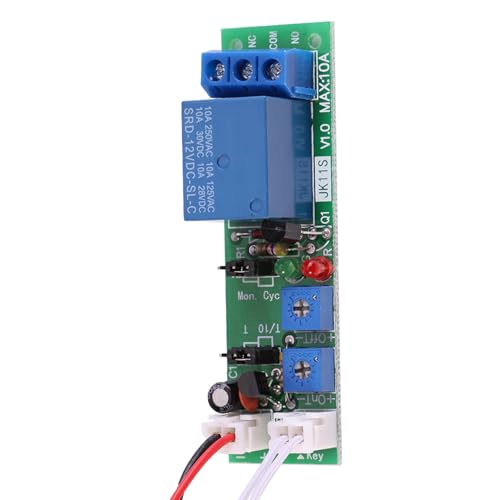

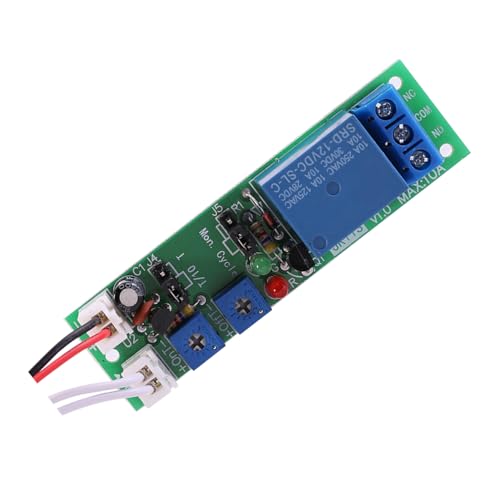

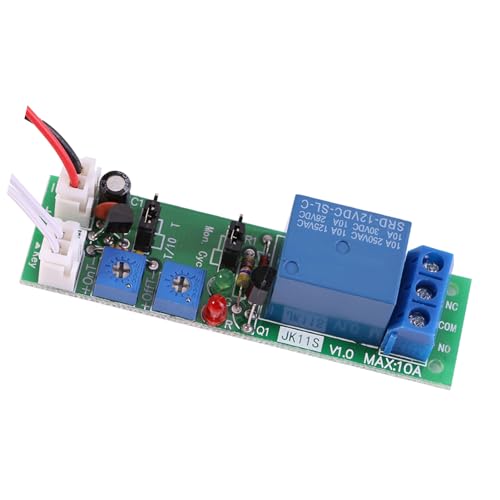

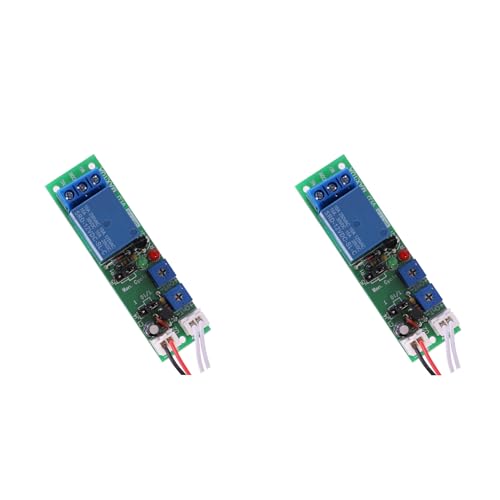

2 PCS Adjustable Timer Delay Relay Module DC 5V, 12V, 24V for Timer Equipment

Disponibilidad:
En stock

Peso con empaque:
0.36 kg

Devolución:
No

Condición
Nuevo

Producto de:
Amazon

Sobre este producto

Support 2 modes, mon mode(once) and cycle mode, and you can simply switch mode by adjusting the jumper
It is a timer relay module with high precision, stable and reliable performance
Connect 2 wires of “Key ”if you need module to work recurrently after power on
There are many voltage and time range for your choice, both “on” time and “off” time are adjustable
Widely used on timer operating equipment, machine repetitive test circuit, fish tank intermittent pump, etc

U$S 23,34

55% OFF

U$S 10,61

U$S 23,34

55% OFF

U$S 10,61

Llega en 25 o más días hábiles

Tienes garantía de entrega

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago Aceptamos múltiples medios de pago para tu comodidad

Compra protegida

Disfruta de una experiencia de compra segura y confiable

¿Qué es Tiendamia?

Fácil, rápido y seguro

Garantía de entrega

100% garantizada

Devoluciones

dentro de los primeros 7 días de recibido

Pago 100% seguro

con todas las tarjetas

Información de Aduanas

para tu compra

Sé un Ciudadano de Tiendamia

para beneficios extra

Únete ahora

Ayuda y atención

Consulta el centro de ayuda en línea

Contáctanos

Tarjetas prepagas, debito, y credito

Paga hasta en 12 cuotas sin interés con tarjetas de crédito.

Conoce más detalles

Specifications for Single Product:Features: It is a timer relay module with high precision, stable and performance.Support 2 modes, mon mode(once) and cycle mode, and you can simply switch mode by adjusting the jumper. Connect 2 wires of Key if you need module to work recurrently after power on.There are many voltage and time range for your choice, both on time and off time are adjustable. Widely used on timer operating equipment, machine repetitive test circuit, fish tank intermittent pump, etc.Specifications: Type: DC5V,0-30min/DC5V,0-24hr/DC12V,0-120min/DC12V,0-24hr/DC24V,0-15min/DC24V,0-30min (Optional) Quiescent Current: Dynamic Current: 45mA@12V; 90mA@5V; 30mA@24V Contact: 1 group NO+NCLoad Capacity: 10A(AC0-250V, DC0-30V)Size: 70*20*18mm / 2.75*0.78*0.7Time Accuracy: value*0.001Mon. Mode: 1. The module Power-on, When triggered the relay is switched on, timer delay off. 2. When triggered on the delay process, again triggered, it will immediately interrupt the delay.Cycle Mode: 1. The module Power-on, When triggered the relay is switched on, (T1) timer delay off. (T2) timer delay on. Such cycle. T1 and T2 are set by two adjustable resistors, respectively. 2. When triggered on the delay process, again triggered, it will immediately interrupt the delay.Package Includes: 2 x Timer Relay Module
