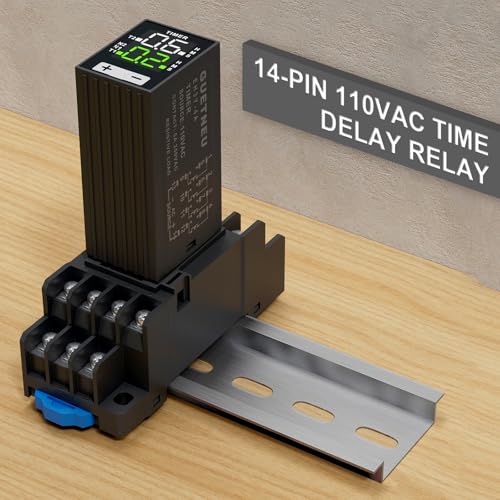

LCD Digital Display Time Relay, Time Control Delayer, Dual Time with Plug-in Terminal Socket, 14-Pin 110 VAC 4PDT Time Delay Relay (H3Y-4)
Size:
14-Pin 110 VAC
En stock
0.36 kg
Sí
Nuevo
Amazon

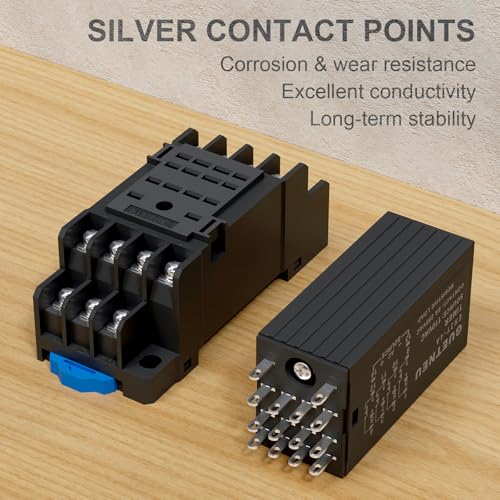

- High-quality Material: Made from premium ABS, it offers excellent electrical insulation, strong durability, and a fire resistance rating of V-2, ensuring safety against flames; The contact pins are made of silver alloy, ensuring strong conductivity
- Flexible & Independent Settings: Users can choose delay mode with “+” and “-” buttons (long press for 3 s, then press “-” ), adjust delay time (press “+” to increase, “-” to decrease; in cyclic mode, long press “-” for 3 s to set T2, adjustable from 0.1 s to 990 h), and select time units (long press “+” for 3 s, then press “+”; in cyclic mode, press “-”); Settings are saved after 8 s of inactivity
- 5 Delay Modes Available: Users can select from the following options: N1 Power-On Delay, N2 Delayed Release, T1T2 Cyclic Delay (triggered on the falling edge), T1T2N2 Cyclic Delay (triggered on both edges), and T1T2N1 Single Cycle Delay

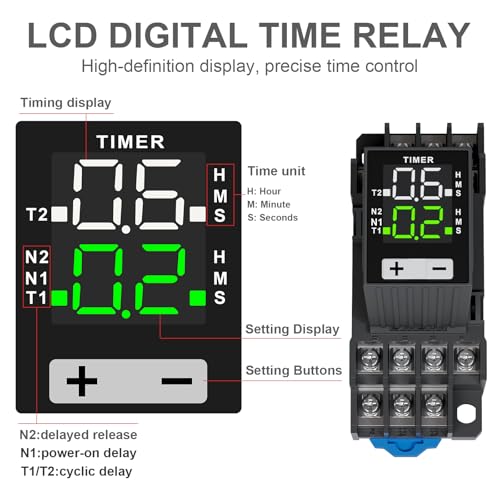

- LCD Dual Time Display: This product features a high-brightness LCD screen for real-time timing, offering clear and accurate readings; The dual time display intuitively shows 2 different time settings, making monitoring and adjustment convenient
- Wide Application Range: Widely used in power systems, home appliance control, and traffic management, etc.; It provides timing control for watering systems, washing machines, and air conditioners, ensuring precision and reliability for everyday life
