PLC Text Display Programmable Logic Controller 3.7 Inch STN LCD Integrated Controller RS485 Port Analog Industrial Control Board DC 24V
Disponibilidad:
En stock
En stock
Peso con empaque:
0.62 kg
0.62 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- Programmable Control: The text display module serves as a small human machine interface that allows operators to monitoring and modify values and statuses of internal registers or relays within the PLC. With the ability to display information in text or through indicator lights, operators can easily control machine equipment with flexibility.
- User Friendly Interface Design: Using the for OP20 editing software on a computer, users can create customized displays, input Chinese characters, and set PLC addresses before downloading the screens through serial communication. The display also features password guard and optional built in clock functionality for added security and convenience.
- Alarm List Function: The industrial controller panel display includes an alarm list function that displays current alarm information line by line in real time. This allows operators to stay informed about any issues or abnormalities promptly and take necessary actions accordingly.
- Advanced Programming Capabilities: The text PLC integrated controller utilizes an for ARMCortex‑M3 32 chip, offering fast computing speeds and ample storage space for efficient Programmers can use for GX Developer or for GX Works2 software for programming, downloading, debugging, and monitoring without support for screen writing.
- Versatile Input Output Options: The text display panel operates on DC 24V power supply and features multiple relay outputs with specified current ratings. Additionally, it includes six analog input channels (three voltage and three current) and two analog output channels for versatile processing. The system also supports 10K temperature measurement and includes safety limits for relay and transistor outputs to ensure long term performance and reliability.
U$S 130,95
44% OFF
U$S 72,75
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 130,95
44% OFF
U$S 72,75
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 15 a 25 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles

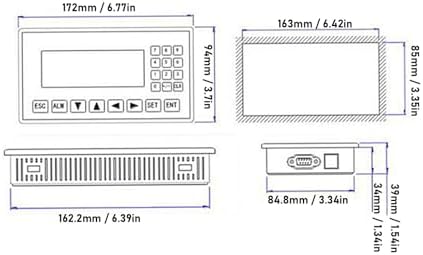

Specification: Item Type: Text PLC Integrated Controller Model: OP320-A 3-22MR Material: ABS Screen: 3.7 Inch STN LCD Resolution: 192 x 64 Pixels (Supports 4 lines x 12 characters display) Color: Monochrome Contrast: Adjustable Backlight: Long Life LED White Light CPU: 8 Bit Processor Memory: 64K Flash ROM Allowable Dropout: Within 20ms Output Type: Relay Input, Output: 12 Iin 10 Out Analog Output: Default 0-10V High Speed Counting: Default 6 Channels 3K, Can be changed to 6 channels 60K Memory Capacity: 8000 Steps Download Speed: 38.4Kb Download Method: Direct Download RS485 Communication Port: Supported For MODBUS: Supported Power Supply: 12-24 VDC +10% Insulation : Over 10mΩ at 500VDC Shock Test: 10-20HZ (X.Y.Z Direction 2C 30 Minutes) Cooling Method: Nature Air Cooling Size: Approx. 172 x 94 x 39mm / 6.8 x 3.7 x 1.5in Display Size: Approx. 101 x 36mm / 3.98 x 1.42in Installation Opening Size: Approx. 165 x 86mm / 6.5 x 3.39in Proof Level: IP65 (Front Panel) Operating Environment Temperature: 0-50°C Communicating Port: COML: PC RS232 (Default 232 Communication) and PLC RS485, RS232 Function Keys: 20 can be customized LCM Type: Blue Screen Yellow Screen Brightness: 60cd/m2 LCM Lifespan: Over 50000 Hours Under Conditions of 25+2 C, 65+10%RH LCM Display Effect: Blue Screen Displays Blue Light White Characters, Yellow Screen Displays Yellow Background Black Characters Operating Environment Humidity: 20-90% (Non Condensing) Storage Temperature: -20-70°C PackageList: 1 x Text PLC Integrated Controller 3 x Terminal Blocks 4 x Mounting Accessories 1 x Download Cable
