ACEBOTT Leonardo R3 Microcontroller Development Board with USB Cable Kit Compatible with Arduino IDE Project
En stock
0.36 kg
Sí
Nuevo
Amazon
USA
- Development board with 1M Type-C Cable,a microcontroller board.
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
Conoce más detalles

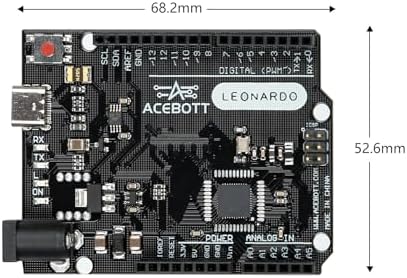

Easy Prototyping - The ACEBOTT Leonardo is a microcontroller board based on the ATmega32u4, it has 20 digital input/output pins (of which 7 can be used as PWM outputs), 12 analog inputs, a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. ACEBOTT Microcontroller: ATmega32u4; Operating Voltage: 5V; Input Voltage (Recommended): 7-12V; Input Voltage (Limited): 6-20V; Digital I/O Pins: 20; PWM Channels: 7; Analog Input Channels: 12; DC Current per I/O Pin: 40 mA; 3.3V Port Output Current: 50mA; Flash: 32KB (ATmega32u4) - 4KB used by the bootloader; SRAM: 2.5KB (ATmega32u4); EEPROM: 1KB (ATmega32u4); Clock Speed: 16MHz ACEBOTT microcontroller dimensions and parameters : Dimensions - 68.6X53.3 (mm); Power supply - Type-c; Operating temperature - 10°C - 30°C; Supported interfaces - UART/GPIO/ADC/PWM/SPI/I2C; Serial port baud rate - Supports baud rates from 110 to 4608000 bps, defaulting to 115200 bps. Versatile Reliability - Bring your ideas to life with our Leonardo R3 microcontroller development board - the perfect combination of versatility and reliability for limitless innovation. Tools for Innovation - Our Leonardo R3 microcontroller development board is the perfect companion for creative projects, combining versatility and reliability to make your innovative ideas a reality. Whether you are an experienced developer or a hobbyist, this development board gives you the tools you need for limitless innovation.
