PLC Control Programmable Logic Controller LCD Screen Display Text PLC Integrated Controller with Alarm List Function,
Disponibilidad:
En stock
En stock
Peso con empaque:
0.62 kg
0.62 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- [ Design] : With 5a current relays and transistor-driven outputs, this plc controller is built to last and ensures performance even under high load conditions.
- [Small Programmable Interface] : This plc controller allows for easy monitoring and modification of internal registers or relays, enabling precise control of machine equipment.
- [Password and Alarm Function] : Equipped with password and alarm list display, ensuring real-time monitoring of current alarm information.
- [Fast Computing Speed] : Powered by an armcortex-m3 32-bit chip, this controller offers efficient computing speed and ample storage space for optimal performance.

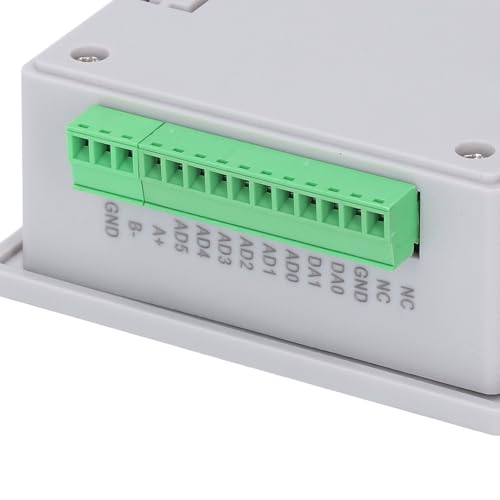

- [Varied Input and Output Options] : Features 6 analog inputs, 2 analog outputs, and the ability to adjust to different temperature ranges, providing versatile control capabilities.
U$S 202,13
60% OFF
U$S 80,85
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 202,13
60% OFF
U$S 80,85
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 25 o más días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles

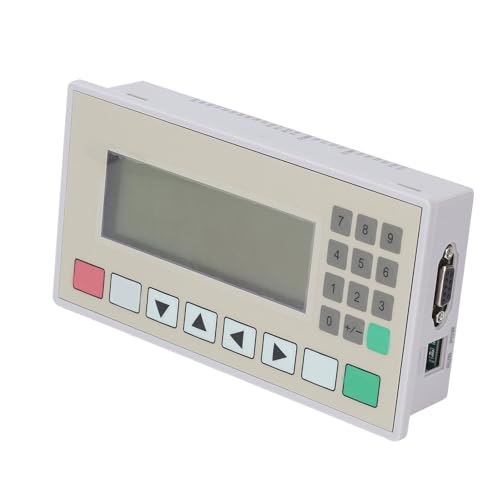

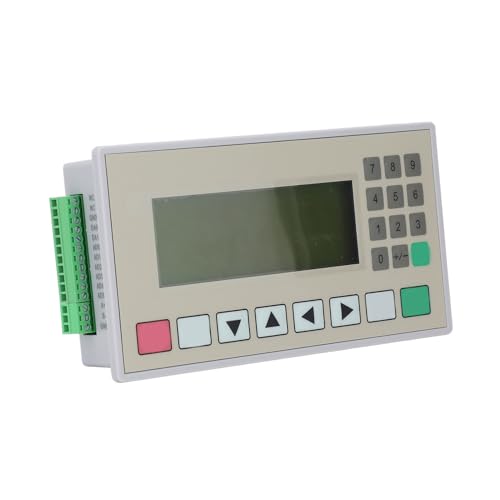

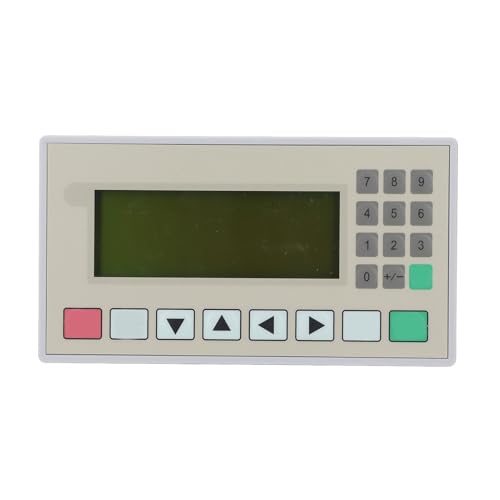

Spec: Item Type: Text PLC Controller Model: OP320-A and 3-22MRT Material: ABS Display: 3.7in STN LCD screen Resolution: 192x64 Pixels (support 4 line x12 character display) Color: Monochrome Contrast: Positioner adjustment Backlight: Long life LED white light CPU: 8 Bit processor Storage: 64K Flash ROM Drop Allowed: Within 20ms Output Type: 4 Way transistor, 6 way relay Input or Output: 12 in and 10 out Analog Input: 3AD 0-10V+3AD 4-20MA Analog Output: Default 0-10V High Speed Count: Default 6 channels 3K, can be changed to 6 channels 60K Pulse Output: 4/100K Memory Capacity: 8000 Steps Download Speed: 38.4Kb Download Method: Download directly RS485 Communication Port: Supported Clock: Supported Programming Software: PLC: For GX Developer, for GX Works2; Text: 0P20 V8.0X Power Supply: 12-24 VDC+10% 150MA at 24VDC Insulation : More than 10mΩ at 500VDC Shock Proof Test: 10-20HZ (X.Y.Z direction 2C 30 minutes) Cooling Method: Cold air Dimension: Approx. 172 x 94 x 39mm / 6.77 x 3.7 x 1.54in Display Size: Approx. 101 x 36mm / 3.98 x 1.42in Installation Hole Size: Approx. 165 x 86mm / 6.5 x 3.39in Protecting Class: IP65 (front panel) Working Environment Temperature: 0-50℃ Communication Port: COML: PC RS232 (default 232 communication) and PLC RS485 or RS232 Function Keys: 20 Keys can be customized LCM Type: Blue screen and yellow screen Brightness: 60cd/m2 LCM Life: More than 50,000 hours at 25+2 C.65 +10%RH LCM Display Effect: Blue screen for blue white characters, yellow screen for black characters on yellow background Working Humidity: 20-90% (non condensing) Storage Temperature: D-20-70℃ Software Components: Intermediate Relay M: M0-M3071, power failure storage
