E6A2-CWZ3C E6A2-CS3C E6A2-CS3E E6A2-CS5C E6A2-CW3E Incremental Rotary Encode AB 2 Phases 100 200 360 400 500PPR 5-24VDC(E6A2-CS3C,360PPR)

Size:

360PPR

Color:

E6a2-cs3c

Disponibilidad:
En stock
Peso con empaque:
0.36 kg
Devolución:
Condición
Nuevo
Producto de:
Amazon
U$S 109,94
49% OFF
U$S 56,38

IMPORTÁ FACIL

Comprando este producto podrás descontar el IVA con tu número de RUT

U$S 109,94
49% OFF
U$S 56,38

¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!

Llega en 5 a 11 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja de USA a tus manos en
Medios de pago Aceptamos múltiples medios de pago para tu comodidad

Compra protegida

Disfruta de una experiencia de compra segura y confiable

Conoce más detalles

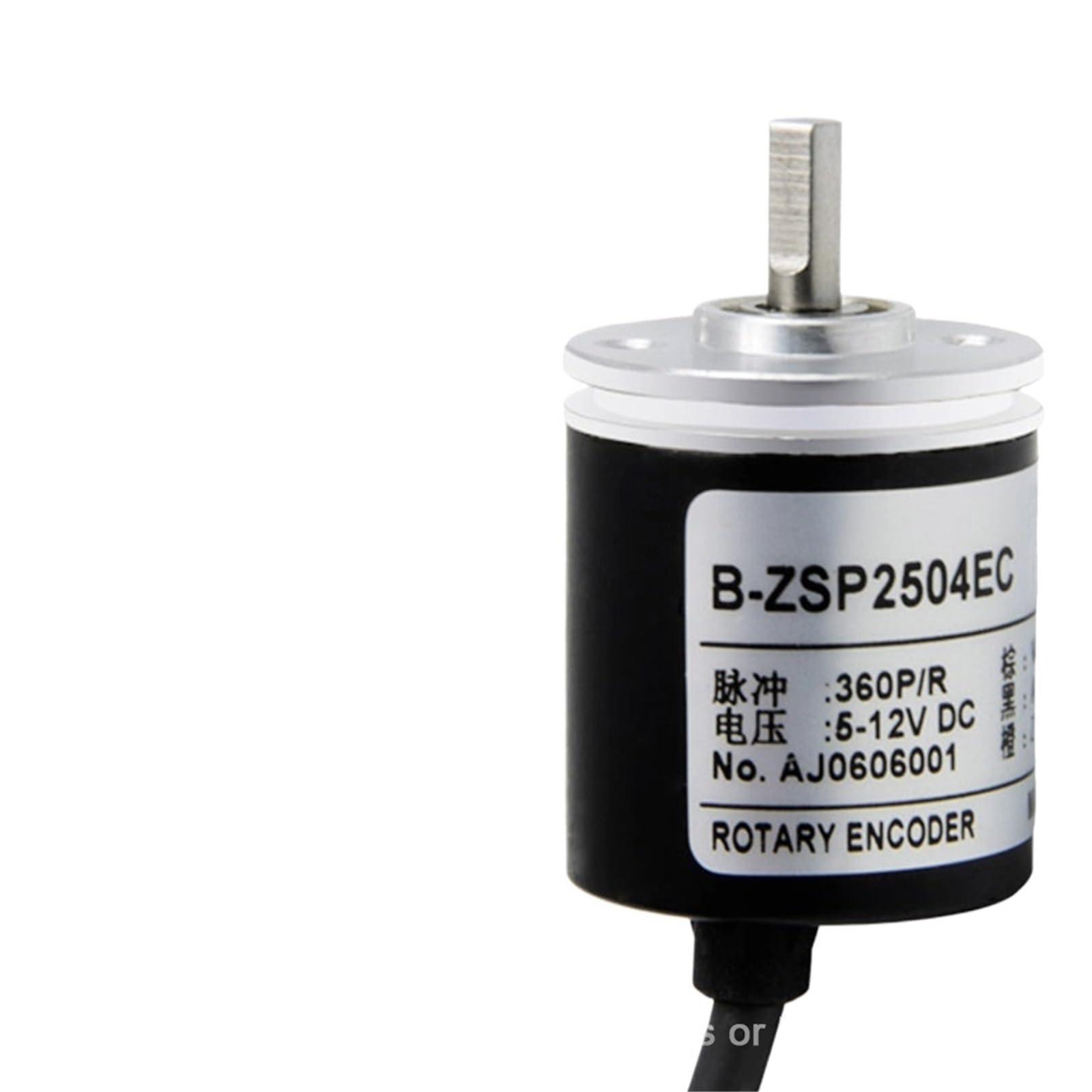

25mm Incremental Encoder 4mm Shaft Rotary AB 2 Phases 100 200 360 400 500 PPR 5-24VDCReminder:1.As the wiring standards of each factory are different, please strictly follow the wiring diagram2.If you are not a professional, please do not connect the wires randomly If you have any questions, please contact our customer serviceModel: (Z: incremental S: solid shaft C: Magnetic type)Outer diameter: 25mmShaft diameter: 4mmOutgoing mode: ( E: Cable rear outgoing)Model output mode:(C: open collector output E: voltage output )Pulse number: 100,200,360,400,500(special specifications can be customized)Output model: B = a, phase BVoltage selection: (M: 12-24v, blank: 5-12V)Positive and negative zero position: (blank: positive zero position F: negative zero position)Cable length: Standard 0.5m (other sizes can be customized)Electrical parametersMechanical parametersNumber of pulsesMaximum 1024P/RStarting force cabinet2x10-3N .M(±25)Current consumption100mAAllowable load of shaftAxial 9.8N, radial 9.8NMoment of inertia4x10-8KGM²Working temperature-20~+70Maximum revolutions5000r/minStorage temperature-20~+80Protection levelIP54Output itemA,B,ZAnti vibration50m/S²(10~200Hz x,y,z 2 hours in each of the three directions)Output voltage VHVCC-2.5VImpact resistance980m/S²Output voltage VL0.5VMaterial ScienceShaft: stainless steelEnd face: aluminum alloyShell: aluminum alloy spray powder1.0VSupply voltageDC5V-12VWeight50gDC12V-24VRise / fall time==========Switch Type : Photoelectric SwitchModel Number : zsc2504Item Type : SWITCHESCable length : 0.5m
