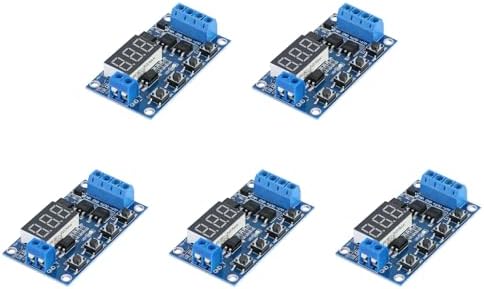

Eujgoov 5Pcs Timer Module, Timer Switch Turn On Off Relay Module with LED Display DC 5V-36V
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- Specifications: Voltage: DC 5V~36V. Trigger Source: High voltage level trigger (3.0V~24V), ground and system ground are not on common ground to improve the system's anti-jamming capability (you can also connect them on common ground). Output Capacity: DC 5V~36V, at room temperature, continuous current is 15A, power 400W. With enhanced heat dissipation, the current can be up to 30A. Quiescent Current: 20mA Operating Current: 50mA Working Temperature: -40℃~85℃ Clocking (Time Delay) Range: 0.1 seconds to minutes Size: 60*34*12 mm / 2.36*1.33*0.47 Instruction: Operating Mode: P1: trigger signal, the relay is onOP time, and then disconnect; in the OP time, as follows: P1.1: is triggered again, invalid P1.2: is triggered again, the clocking is reset P1.3: is trigger again reset, relay off, and stop the clocking; P-2: trigger signal, the relay offCL of time, the relay on OP time, and then disconnect relay after clocking; P3.1: trigger signal, the relay is turned on after the OP time, the relay off CL time, then the cycles; if trigger again during the cycle, the relay off, stop clocking; the number of cycles times ( LOP ) can be set. P3.2: without triggering after power on, the relay is on OP time, the relay off CL time, then the cycles; the number of cycles times ( LOP ) can beset. P-4: holding function. If there is trigger signal, clocking is reset, the relay remains on; when the disappears,after clocking OP time, the relay is off; if another istriggered during clocking, clocking will be reset.
U$S 20,14
44% OFF
U$S 11,19
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 20,14
44% OFF
U$S 11,19
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 25 o más días hábiles
con envío
Tienes garantía de entrega
Conoce más detalles
To achieve fast turn-on and off circuit, an unlimited number of switching times No noise was made during turning on/off, no spark, and no electromagnetic interference Compared to normal electromagnetic relay modules, it has a longer service life Dual-MOS in parallel active output, lower inner , larger current, strong power; at room temperature, operating current is up to 15A, power up to 400W, that can be used for most equipment Wide voltage input from 5V to 36V, normally used for controlling DC motors, lights, LED strips, micro-pumps, solenoid valves, etc., very convenient
