SKU/Artículo: AMZ-B0F1VB79K2

Srliya

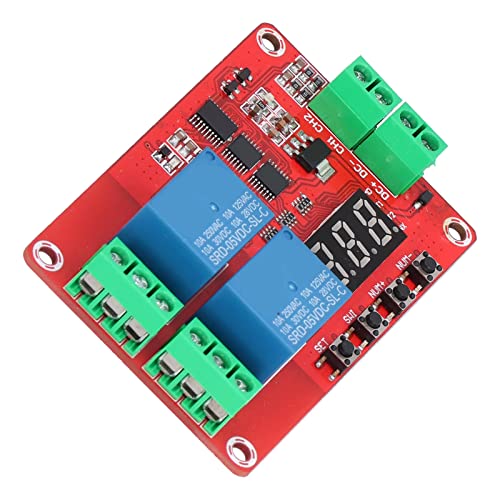

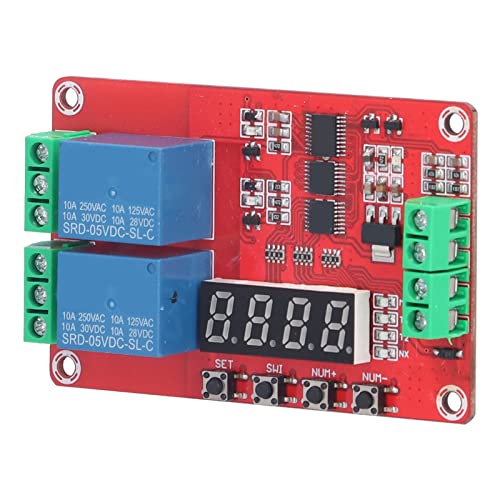

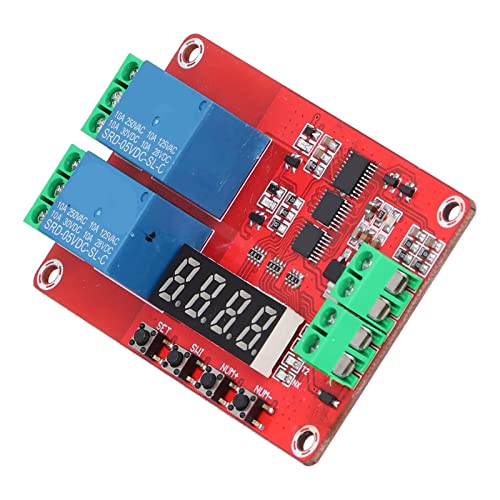

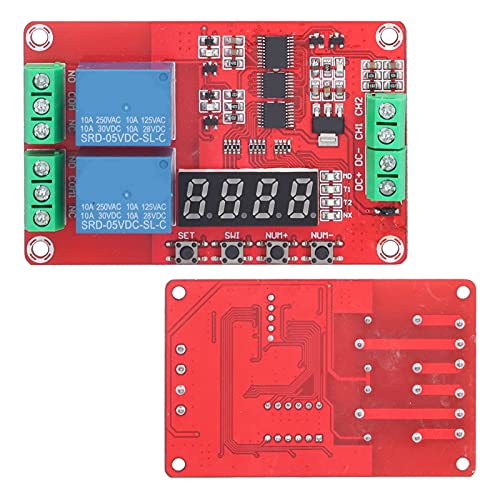

Time Delay Relay Multi Functional 2-Channel Self Lock Cycle Timing Module Board (5V)

Size:

Disponibilidad:
En stock

Peso con empaque:
0.36 kg

Devolución:
No

Condición
Nuevo

Producto de:
Amazon

Sobre este producto

There are 5V, 12V and 24V modules to choose from, can satisfy your multiple needs.
The user can select one of the following 20 functions by pressing the button and display, and can set and save the function parameters, and also view the parameters of the current function.
The time parameter setting is adjustable by 0.1 second at minimum, and the accuracy is better than 0.01 second.
Normally open port maximum load capacity: DC 0‑30V/10A, AC 0‑250V/10A.
Normally closed port maximum load capacity: DC 0‑28V/10A, AC 0‑125V/10A.

U$S 17,68

31% OFF

U$S 12,19

U$S 17,68

31% OFF

U$S 12,19

Llega en 15 a 25 días hábiles

Tienes garantía de entrega

Medios de pago

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago

Conoce más detalles

Specification: Item Type: Time Delay Relay Module Control Terminal: There is a 3-wire interface, all interfaces have wiring terminals, which is convenient for users to use 1. DC+: DC power supply positive (5V, 12V and 24V modules are available) 2. DC-: negative pole of DC power supply 3. CH1: Input detection interface 1, active at high level 3. CH2: Input detection interface 2, active at high level Relay Output Terminal: 6-wire interface, all interfaces have wiring terminals 1. NO1: Relay normally open interface 1, hang in the air before the relay is closed, and short-circuit with COM1 after it is closed 2. COM1: Relay common interface 1 3. NC1: Relay normally closed interface 1, short-circuit with COM1 before the relay is closed, and hang in the air after being closed 4. NO2: Relay normally open interface 2, hang in the air before the relay is closed, and short-circuit with COM2 after it is closed 5. COM2: Relay common interface 2 6. NC2: Relay normally closed interface 2, short-circuit with COM2 before the relay is closed, and hang in the air after being closed Load Capacity: Maxim
