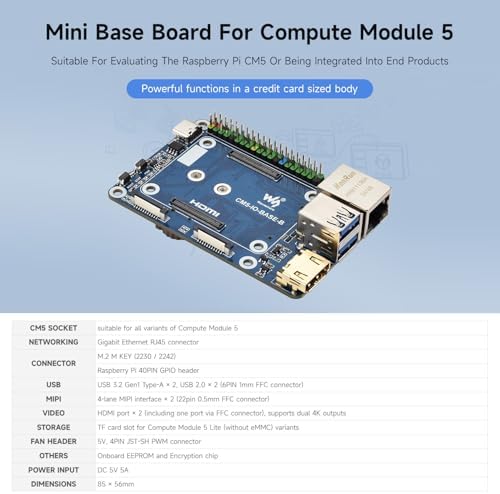

Waveshare Mini Base Board (B), Compatible with Raspberry Pi Compute Module 5, Onboard EEPROM and Encryption Chip
En stock
0.36 kg
Sí
Nuevo
Amazon
USA
- Waveshare Mini Base Board (B), Compatible with Raspberry Pi Compute Module 5, Onboard EEPROM And Encryption Chip
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
Conoce más detalles
Compatibility and Connectivity: The board is equipped with a CM5 socket, making it suitable for all variants of the Compute Module 5. It also features a Gigabit Ethernet RJ45 connector for high-speed networking and a Raspberry Pi 40PIN GPIO header for various expansion options. USB and M.2 Expansion: It includes two USB 3.2 Gen1 Type-A ports, two USB 2.0 ports, and an M.2 M KEY (2230/2242) connector for further device integration. Additionally, it offers flexible connectivity options with a 6PIN 1mm FFC connector for USB and M.2 interfaces. Video Output: The board supports dual 4K video output via two HDMI ports, one of which is connected through an FFC connector. This setup allows for high-definition, dual-display configurations, ideal for multimedia applications. Storage and Power: It features a TF card slot designed for Compute Module 5 Lite variants (without eMMC storage) and is powered via a 5V DC input with a 5A capacity, ensuring stable performance. Additional Features: The board is equipped with a 5V 4PIN JST-SH PWM fan header for cooling, an onboard EEPROM, and an encryption chip for secure data handling, along with a compact form factor measuring 85 × 56mm. Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
