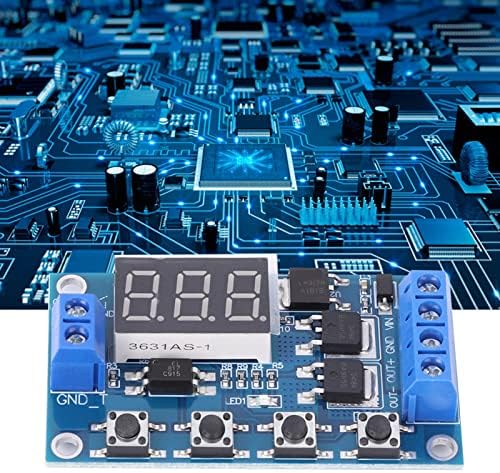

DC 5-36V Timer Module, 60x34 mm Delay Timing Cycle Module, Delay Timer Relay Switch, Turn On/Off Relay Module with LED Display
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- No Interference: The delay timer module will not generate noise, no sparks, no electromagnetic interference during the conduction and cutting process, compared with electromagnetic relays, it has a longer service life
- Wide Applicability: The delay timer circuit board is about 60 x 34mm / 2.4 x 1.3 inches, working voltage 5 - 36V, suitable for most of the equipment, easy to use, simple interface and strong functions, can meet your diverse needs
- Efficient and Fast Switching: The time relay module can realize fast switching of circuits and the number of switching times is not limited, so it can easily cope with the demand of greatly improve the working efficiency
- Strong Anti interference: The power on delay relay module adopts optocoupler insulation and industrial grade board, which has strong anti-interference ability, and can work stably in complex environments, so that the equipment can run reliably
- Rich Functional Design: Timer delay relay with emergency stop function, reverse polarity protection, can be set to pause mode and a variety of independent save parameters, shut down the module parameters will not be lost
U$S 15,58
49% OFF
U$S 7,99
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 15,58
49% OFF
U$S 7,99
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 5 a 11 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles

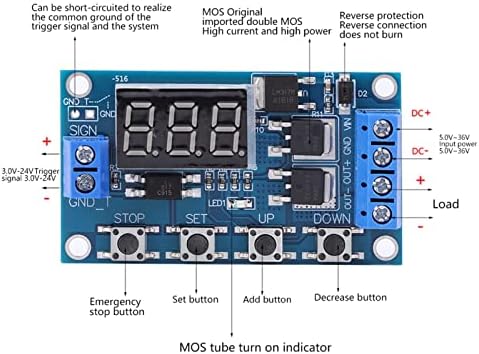

Item Type: Timer delay switch circuit boardMaterial: PcbSize: Circuit board Approx. 60 x 34mm / 2.4 x 1.3inProduct Parameters:1: Working Voltage: 5-36V.2: Trigger Signal: (3,0 V-24V), with optocoupler isolation, can improve the anti-interference ability of the system (customers can also shorten the public ground).3: Output Power: DC 5V-36V, at room temperature, DC 15A, power 400W! Improve heat dissipation conditions, the maximum current reaches 30A.4: Quiescent Current: 20mA; working current: 50ma5: Working Temperature: -40-85℃6: Optocoupler and insulation, greater anti-interference ability, industrial grade board.Package List：1 x Relay Module
