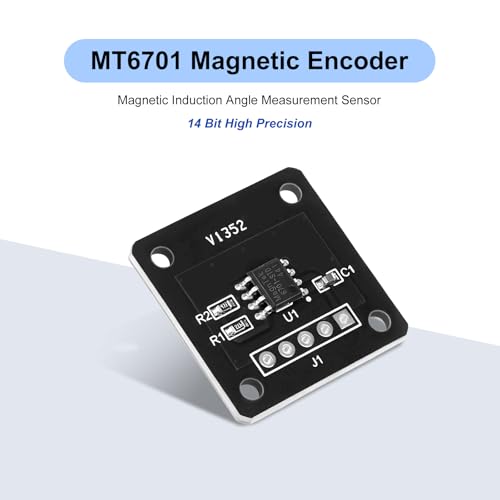

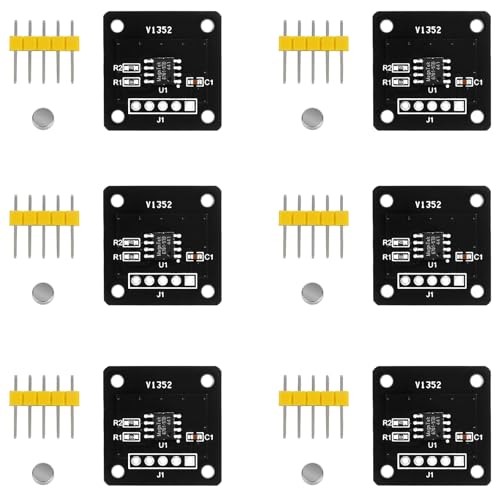

6pcs MT6701 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 3.3V-5V 14bit High Precision Replace AS5600

0 5 4 6

6 calificaciones

Disponibilidad:
En stock

Peso con empaque:
0.36 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Sobre este producto

Working Principle: Based on differential Hall technology, the differential Hall bridge signal is generated by detecting the change of the Z-axis magnetic field component of the rotating magnet, and the analog signal processing chain as well as the digital angle calculation, compensation and calibration output the angle signal from 0 to 360°
High Accuracy: 14-bit absolute angle output (0.022°/LSB), the effective number of bits increased to 13.5 bits; ±0.1° repeatability, temperature drift control at ±0.003°/°C; 55,000rpm high-speed latency of <1μs, angle jitter at 3000rpm is only 0.03°, to realize the Precision motion control

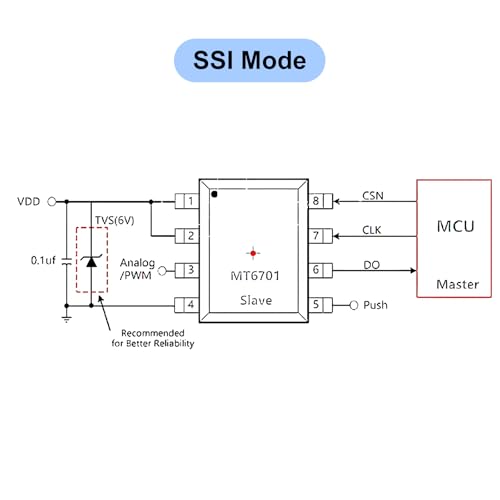

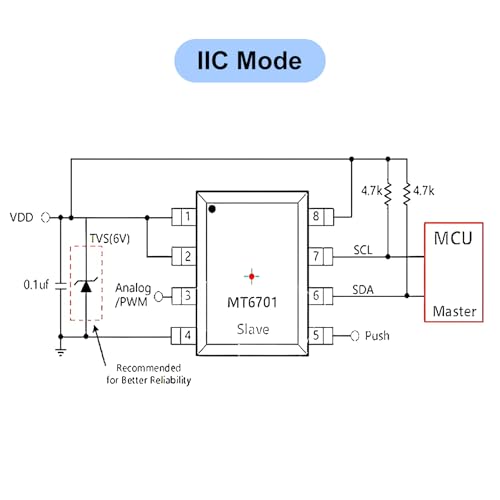

Multi-interface Integrated Design: Supports I2C/SSI/SPI/PWM/ABZ/UVW six output modes, compatible with PLC and servo system, the transformation cost is only 1/3 of the optical solution
Extreme Environmental Adaptability: -40℃~125℃ wide temperature operation, IP67 protection grade, <1° error under 50mT magnetic field interference, sub-millimeter motion stability in harsh scenarios such as medical surgery and extreme cold detection
Widely Application: MT6701 magnetic encoder can be used in the field of industrial automation, medical precision equipment, new energy, drones, intelligent home appliances, etc., is the ideal choice for high-precision applications

U$S 30,58

44% OFF

U$S 16,99
