SKU/Artículo: AMZ-B0FDKR35JW

EFLLMSZX

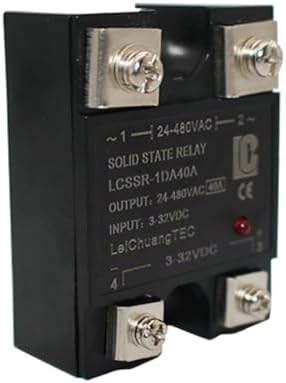

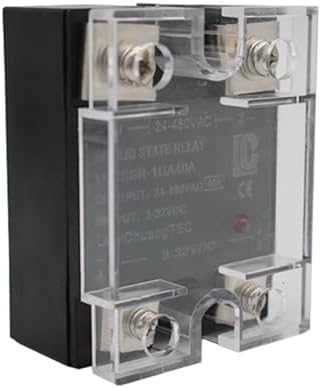

EFLLMSZX 10A-120A SSR Single Phase Solid State Relay DC Control DA SSR 3-32VDC to 24-480VAC(50A)

Detalles del producto
Disponibilidad:
Fuera de stock
Peso con empaque:
0.43 kg
Devolución:
No
Condición
Nuevo
Producto de:
Amazon
Viaja desde
USA

Sobre este producto
  • relay Relay LeiChuang TEC single phase solid state relay DC to DA 10A-120A Control DC to AC Load Current 10A-120A Control Voltage 3-32VDC Max Input Current 40mA Must Operation Voltage 3VDC Must Release Voltage 2VDC Load Voltage 24-280VDC Peak Voltage 800V Operation Temperature -30 to 80 Max off-state leakage current2mA Max on-state voltage drop 1V Dielectric strength 2500V Certificates CE Dimensions(mm) 57 x 44 x 30 Weight 100g Features 1.MOSFET output. 2.With LED indicator. 3.Low on-state resistance. 4.Photo isoation. Precautions 1.Must add suppression circuit for inductive load. 2.Apply heat-radiation silicon grease of a heat conductive sheet between the SSR and heat sink. 3.Tighten the ssr terminal screws properly. 4.Please do not use the relay beyond the descriptions in the data sheet. Choose current Current of Equipment/Ratio = Current of SSR PS: The Ratio depend on the kind of your loading equipment. Resistive load :50% Inductive load:20% Capacitive load:10%

Fuera de stock

Selecciona otra opción o busca otro producto.

Conoce más detalles

relay Relay 10A-120A SSR Single phase Solid state relay DC control DA SSR 3-32VDC to 24-480VAC
