SKU/Artículo: AMZ-B0FQ73W8M6

Hilitand

Hilitand GRT8-B2 Time Relay DIN Rail Mounted Single Function Timer Relay with Knob Setting 0.1s-10 Days Delay for Heating Pump Fan Control (AC/DC12V-240V)

Style:

AC/DC12V-240V

Size:

AC/DC12V-240V

Disponibilidad:
En stock

Peso con empaque:
0.36 kg

Devolución:
No

Condición
Nuevo

Producto de:
Amazon

Sobre este producto

[Wide Range Time Setting] With an impressive delay range from 0.1 seconds up to 10 days this timer relay meets diverse timing needs. the ultra wide range makes it suitable for both short interval operations and long duration applications with precise control.
[Multiple Application Scenarios] For controlling heating elements pumps fans and various electrical devices. ideal for industrial automation home appliances and commercial use where precise timing control is required for efficient operation and energy saving.
[Versatile Delay Functions] This singlefunction time relay offers two practical modes: poweron delay and delay disconnection. whether you need to delay startup or shutdown it provides flexible control for various electrical applications with reliable performance.

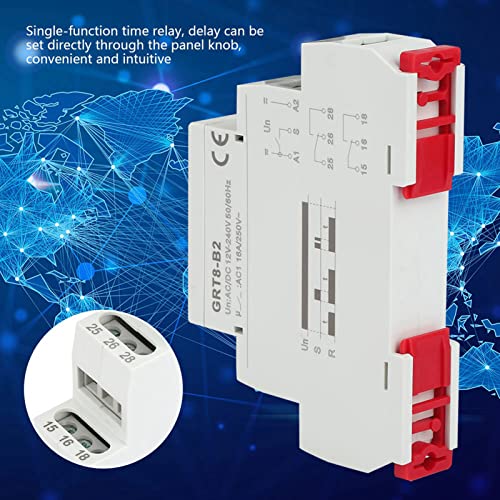

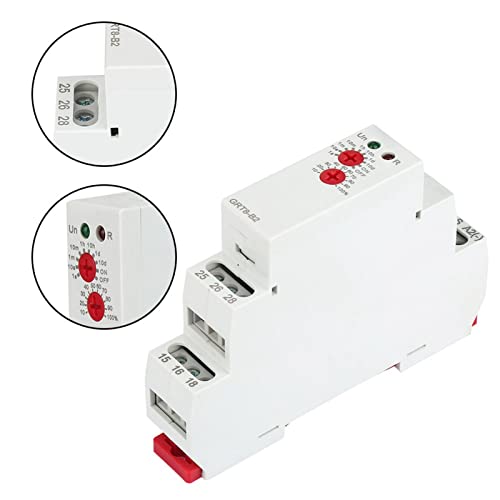

[Easy to Use Knob Control] The grt8 b2 time relay features a convenient panel knob for direct delay setting making operation intuitive and userfriendly. simply turn the knob to adjust timing without complicated programming for both professionals and diy enthusiasts.
[Clear Visual Indication] The builtin led indicators clearly show the working status of the relay at a . the green power led and red output relay led provide visual feedback ensuring you always know the operational state of your equipment.

U$S 66,00

55% OFF

U$S 30,00

U$S 66,00

55% OFF

U$S 30,00

Llega en 15 a 25 días hábiles

Tienes garantía de entrega

Medios de pago

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago

Conoce más detalles

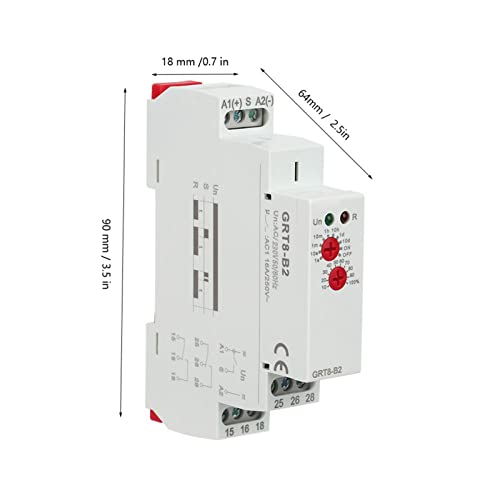

Specification: Model: GRT8-B2 Power Terminal: A1-A2 Rated Control Power Supply Voltage: AC/DC 12-240V (50-60Hz) Power Consumption: AC 0.7-3W/DC 0.5-1.7W Power Supply Allowable Range: -15%; +10% Power Indicator: Green LED Delay Range: 0.1 seconds-10 days, normally open, normally closed Setting Method: Knob Setting Accuracy: 10% Repeatability Accuracy: 0.2% Temperature Fluctuation Error: 0.05%℃, at = 2℃ Output: 2 Sets of Conversion Contacts 16A/AC250VAC Minimum Switching Power: 500mW Output Relay Indication: Red LED Mechanical Life: 10000000 Electrical Life (Resistive Load): 1000000 Working Environment Temperature: -20℃-55℃ Storage and Transportation Environment Temperature: -35℃-75℃ Installation Method: 35mm Rail Installation Protection Level: IP20 Installation Altitude: 2000 Meters Pollution Degree: 2 Wiring Capacity: 1x2.5mm² or 2x 1.5mm² Optional Style: AC230, AC/DC 12V-240V Weight: Approx. 95g / 3.4oz Size: Approx. 90 * 18 * 64mm / 3.5 * 0.7 * 2.5in Package List: 1 * Time Relay
