2.42-inch I2C OLED Display Module 128x64 Pixel SSD1309 Driver IC OLED Screen with Protective Case for Arduino Raspberry Pi/ESP32

Disponibilidad:
En stock

Peso con empaque:
0.36 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Sobre este producto

Clear Large OLED Display: These display modules are 2.42-inch monochrome screens with white display color and 128 x 64 resolution. They have clear display effects, high contrast, and a viewing angle greater than 160°, making even small fonts clear and easy to read
Low Power Consumption: Working voltage 3.3V/5V, compatible with 3.3V and 5V logic levels, no level conversion chip required, working current is only 52mA, power consumption is 0.26W, enhance system reliability and performance
Changeable IIC Address: If the resistor is connected to the 0x78 side, it means that the address of the IIC slave device is 0x78; if it is connected to the 0x7A side, it means that the address of the IIC slave device is 0x7A. If ACK response is required, please short-circuit D2

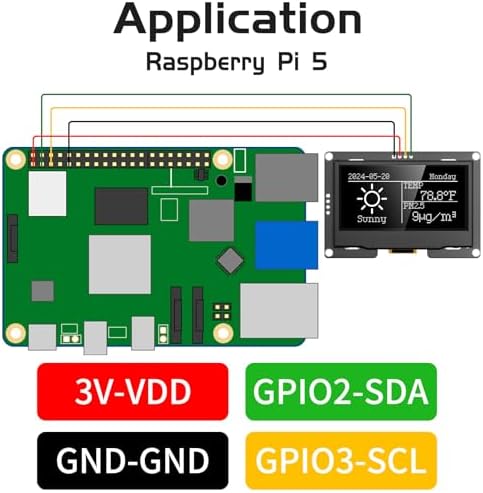

Widely Application: These OLED display can be used for Arduino, Raspberry Pi 5/4B/3B+/3B/2B/Zero, STM32, C51, ESP32 development board and so on. Showing graphical & textual information directly of your machines

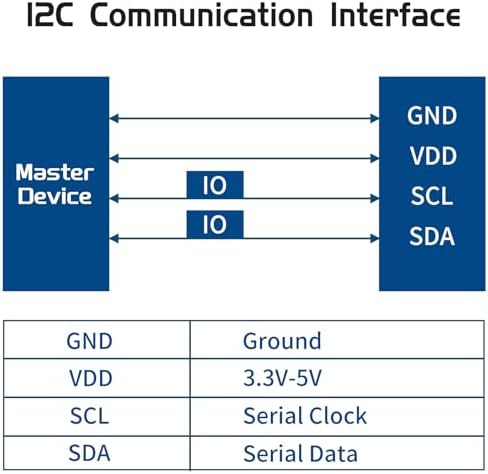

Parameters: Active display area: 55.01(W) x 27.49(H)(mm); Driver IC: SSD1309; Display interface: IIC; Pixel size: 0.43(H) x 0.43(V)(mm); Backlight brightness (typical): 110(cd/m2); Operating temperature -40~70(℃)

U$S 30,58

44% OFF

U$S 16,99
