SKU/Artículo: AMZ-B0FS3BP8XH

Hyuduo

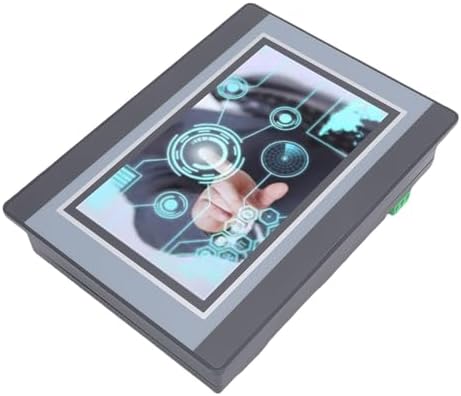

Hyuduo 7 Inch HMI Touch Screen PLC Programmable Logic Controller with 24 Input 24 Output Relay ARM9 CPU 4H Resistive Touch for GX Works2 MODBUS

Disponibilidad:
En stock

Peso con empaque:
1.02 kg

Devolución:
No

Condición
Nuevo

Producto de:
Amazon

Sobre este producto

DC 24V Power Supply: The HMI PLC all in one machine adopts DC 24V power supply, and under the condition that the output relays are not turned on, the static current is 170MA, the starting current needs to be above 1A.
Touch Screen Download: The touch screen uses for HMIStudio5.1 software for programming, and downloads HMI programs using USB to TYPE C cable. Support simultaneously check the PLC program and communicate with the touch screen.
Analog Input and Output: Analog input defaults to 6AD, 0-10V, can be changed to 0-20mA, AD0 AD1 can be changed to 2 channel PT100 or 2 channel K type temperature measurement, analog output 0-10V.
Fast Processing eed: The integrated HMI PLC adopts 32 bit for ARM9 CPU, with fast processing eed. It features 4 wire industrial resistive touch screen with a surface hardness of 4H, ensuring long servic.

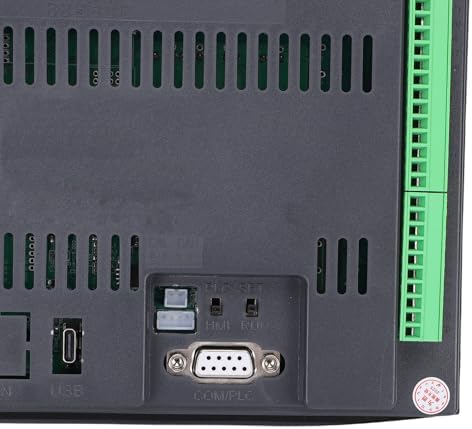

PLC Download and Communication: Supports 1 RS232 and 1 485 communication port, which can communicate with programming software simultaneously. The download eed is compatible with 9.6-115.2Kbps. Use for or for GX Works2 for programming, downloading, debugging, and monitoring (monitoring writing is not supported).

U$S 269,35

44% OFF

U$S 149,64

U$S 269,35

44% OFF

U$S 149,64

Llega en 15 a 25 días hábiles

Tienes garantía de entrega

Medios de pago

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago

Conoce más detalles

ec: Item Type: 7 Inch HMI PLC Material: ABS Model: WSC7048R Overall Size: Approx. 202x148x51mm / 7.95x5.83x2.01in Hole Opening Size: Approx. 190x136mm / 7.48x5.35in Dilay Screen: 7 Inch TFT LCD Screen Download eed: 9.6-115.2Kb Input Points: 24 Output Points: 24 Output Type: Relay Output Current: 5A High eed Count: 2/100K Pulse Output: None Analog Input: Default 6AD, 0-10V, can be changed to 0-20mA, AD0 AD1 can be changed to 2 channel PT100 or 2 channel K type temperature measurement Analog Output: 0-10V for MODBUS: Supported Clock: Supported CAN: Supported Weighing: Supported USB Download: Supported Application: for (for XP system and for 32 bit system) for GX Works2 (for 64 bit system, for system, for system) How to Use: Use according to the introduction. Package List: 1 x 7 Inch HMI PLC 2 x Connection Cables 4 x Installation Screws 4 x Installation Accessories
