Hilitand Adjustable Cycle Timer Relay, Time Delay Switch Module with 0.1s-999min Range for DC Motor and LED Light Control
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- Versatile Timing Modes: Features 4 programmable modes (P1-P4) for delay, cycle, and trigger control, replacing multiple single-function timers for motor or light projects.
- Wide Voltage Compatibility: Operates from 3V to 7V DC, compatible with common power sources like 3.7V lithium batteries and 5V power banks for flexible setup.

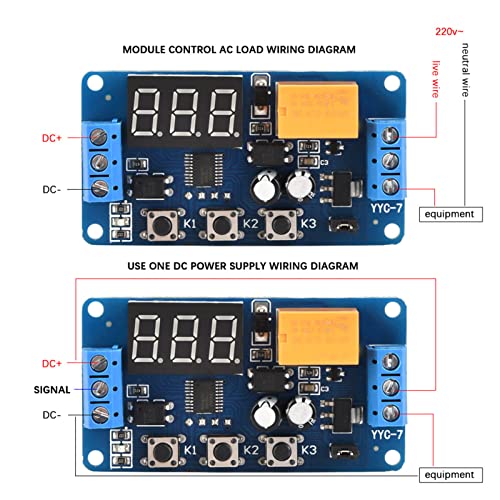

- Robust Output Capacity: Controls equipment up to DC 30V/3A or AC 220V/3A with optical coupling isolation for enhanced anti-interference performance.

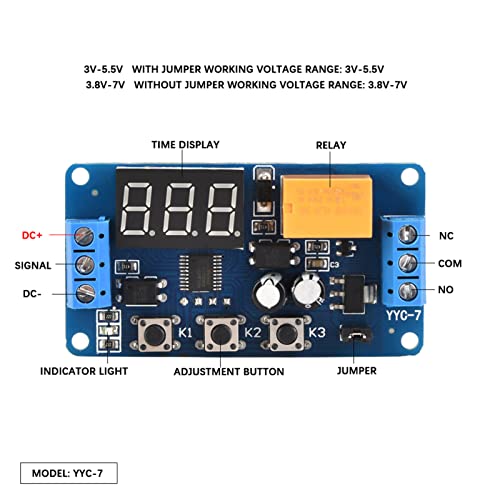

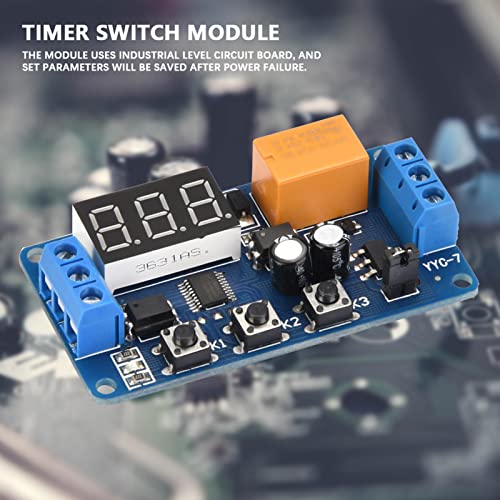

- Easy Setting Retention: Set parameters are saved after power failure, and the intuitive 3-button interface allows for quick adjustments without reprogramming.

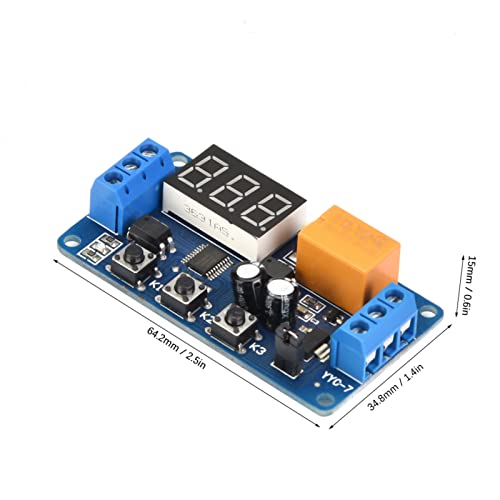

- Compact and Durable Design: The industrial-grade circuit board measures 2.5 x 1.4 x 0.6 inches and operates reliably in temperatures from -40°F to 185°F.
U$S 26,55
60% OFF
U$S 10,62
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 26,55
60% OFF
U$S 10,62
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 15 a 25 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles
Specification: Working current: DC 3V~7V Voltage range with jumper: 3 V~5.5V Voltage range without jumper: 3.8V~7V Signal source: DC 3V~12V (commonly use power supply positive trigger, button, PNP sensor, PLC signals, etc.) Output capacity: Can control equipment within DC 30V3A or AC 220V3A Quiescent current: 15mA Working current: 30mA Service life: >100,000 times Operating temperature: -40℃~85℃ Size: 64.2*34.8*15mm / 2.5*1.4*0.6in Weight: 22g / 0.8oz (approx.) Package list: 1 * Module Function: Delay time range:Minimum 0.1 seconds, maximum minutes, adjustable. P-1: Signal trigger relay is energized, and when time is over, relay is de-energized; during the period of delay: A: Trigger again is invalid B:Trigger again can start a new timing C:Trigger again will cause relay to reset and end timing P-2: Signal trigger starts timing for T1, when time is over, relay is energized for T2 then de-energized (reset) P-3: Cycle:Energized for T1, de-energized for T2, infinite cycle.Time of T1 and T2 are both adjustable. A: After powered on, relay is first energized then de-energized for a infinite cycle B:After powered on, relay is first de-energized then energized for a infinite cycle P-4: When there is signal, relay is energized; when signal disappears, it start timing, and relay is de-energized when time is over. During the period of delay, if signal appears again, it cancels delay; and when signal disappears, it start timing again. Mode selection: After powered on, press and hold K1 button for 2 seconds, then press K1 to enter select mode P1~4, K2 enter the model.
