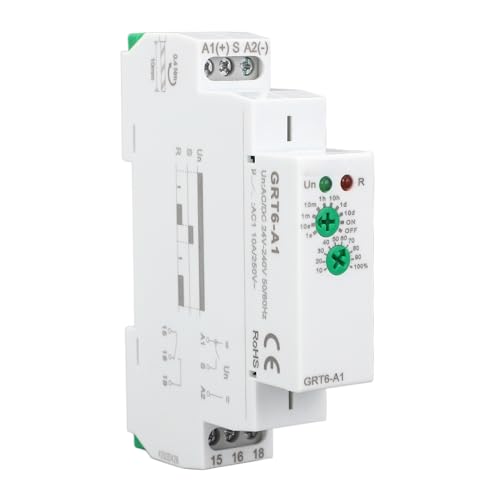

FTVOGUE Single Function Time Delay Relay DIN Rail Mount Timer with Potentiometer Setting for Industrial Control
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- User Friendly Time Adjustment: The DIN rail mounting timer relay can be easily configured using a potentiometer to set the desired delay time. The straightforward adjustment process makes it accessible for users to customize the operating according to their specific needs without any complex programming.

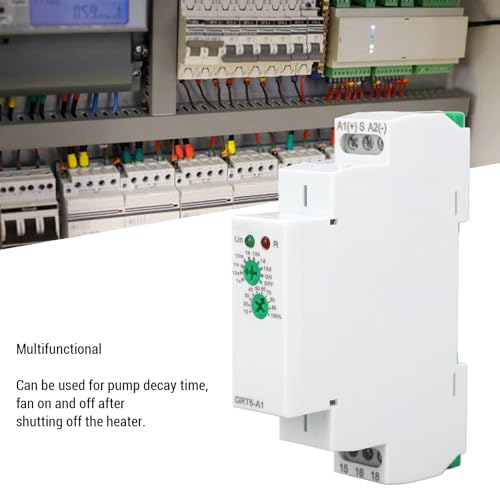

- Versatile Time Control: This DIN rail mount timer delay relay is suitable for controlling the pump delay time and fan switch after the heating device is turned off. With a flexible time setting range from 0.1 seconds to 10 days, it allows for accurate control in various applications requiring specific timing functions.
- Clear LED Status Indicator: The electronic single function timer delay relay status is clearly displayed through an integrated LED indicator, providing immediate visual feedback on the operational state. This feature enhances user convenience, allowing quick assessments of the relay's functioning at a .
- DIN Rail Mounting Convenience: Designed for easy installation, this single function time relay can be mounted on standard DIN rails. This mounting option is not only space saving but also simplifies the integration of the relay into existing electrical setups, making it suitable for both commercial and industrial applications.
- Robust Guard Rating: With a front panel guard rating of IP40 and terminal guard rating of IP20, this timer delay relay is designed to withstand various environmental conditions. The rugged construction ensures good performance in demanding settings, safeguarding the internal components from dust and mini contacts, enhancing its longevity.
U$S 30,71
44% OFF
U$S 17,06
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 30,71
44% OFF
U$S 17,06
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 25 o más días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles
Specification: Item Type: Time Delay Relay Material: PC Function: A: Delay ON Power Supply Terminals: A1-A2 Load: AC 0.09-3VA, DC 0.05-1.7W Power Supply Voltage Tolerance: -15%, +10% Power Indicator: Green LED Time Range: 0.1s-10days, ON, OFF Time Setting: Potentiometer Time Deviation: 10% Mechanical Setting Repetition Accuracy: 0.2% Set Value Stability Temperature Coefficient: 0.05%/℃, at=20℃ (0.05%℉, at=68℉) Output: 1xSPDT Current Strength: 10A/AC1 Switch Voltage: 250VAC, 24VDC DC Minimum Switching Power: 500mW Output Indicator: Red LED Mechanical Life: 10000000 Electrical Life (AC1): 100000 Reset Time: Maximum 200ms Operating Temperature: -20℃-+55℃ (-4℉-131℉) Storage Temperature: -35C-+75℃ (-22℉-158℉) Mounting, Rail: Guard Class EN or IEC60715 Guard Class: Front Panel IP40, Terminal IP20 Operating Position: Any Overvoltage Category: III Maximum Cable Size (mm²): Solid Wire Maximum 1 x 2.5 or 2 x 1.5, With Sheath Maximum 1 x 2.5 (AWG12) Torsion: 0.4Nm How to Use: 1. The product must be installed by a qualified electrician. 2. All electrical connections to the product must comply. 3. All and any electrical connections to the product must comply with the appropriate safety standards. Package List: 1 x Time Relay 1 x Manual
