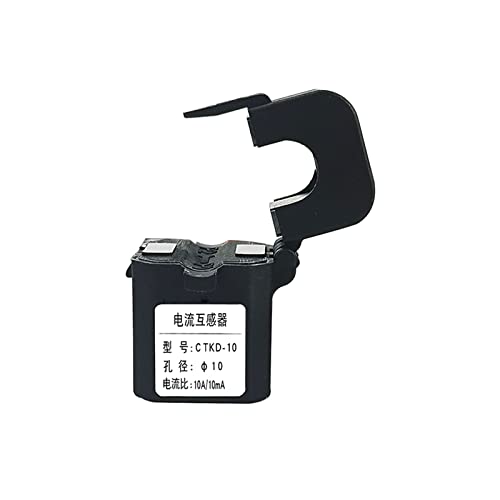

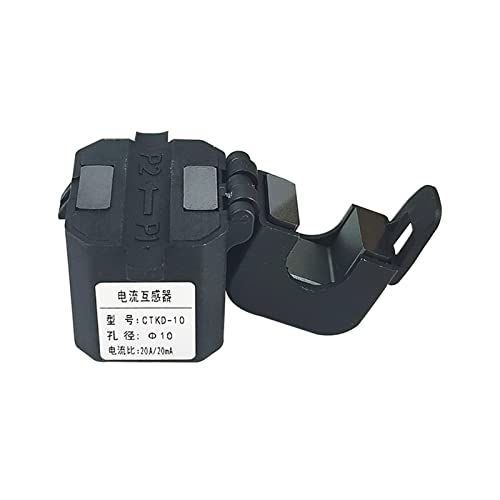

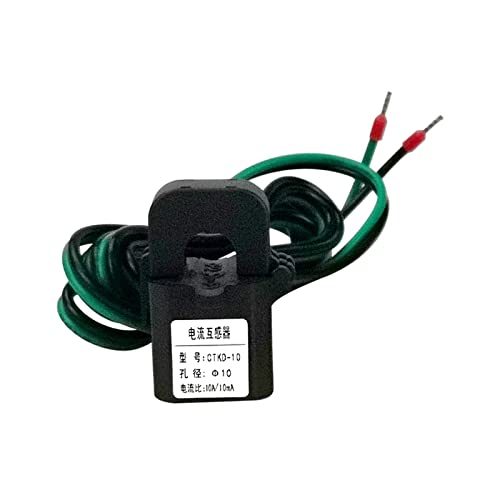

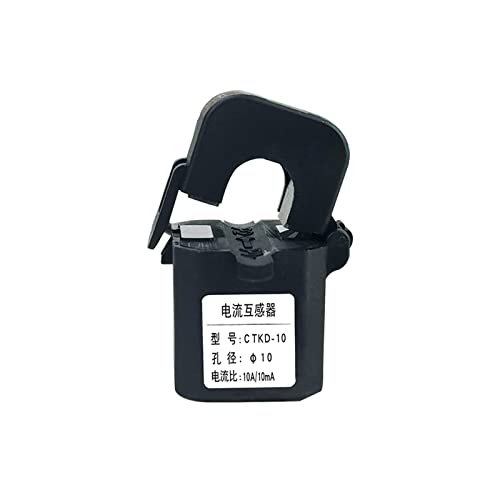

Split core CT Current Sensor, Split Core Current Transformer Three Phase Electric Sensor CT Diameter 10mm Class 0.5 10/20/50/75mA KCT10(20a 20ma)
Size:
20a 20ma
En stock
0.36 kg
No
Nuevo
Amazon
- Small, lightweight, highly reliable and easy to install current .
- Using snap joint structure, it can be fixed to the cable directly through nylon ties
- 【Quick Installation】With a snap joint structure and built-in input coil, the current transformer can be securely mounted using nylon ties—no tools required, saving time and ensuring stability.
- EASY TO USE - Built in input coil, small and lightweight, easy to install. When you fix the energy meter, you don't need to cut off the power if you use this product.
- GOOD MECHANICAL PROPERTIES: Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability,and proving highly effective in industrial and building electrical applications.
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
Conoce más detalles
DscriptionWorking Frequency: 50-2KHzRated Input: 5A-630AMeasuring Range: 10%In-130%InRated Output: 0.333V (AC) or 0-500mARatio Difference: ±1.0%Phase Difference: ±60 minutesDielectric Strength: 2.5KV/1mA/1minInsulation Resistance: DC500V/100M minShell: PA, flame retardant grade 94-V0Frame: PBTIron Core: Silicon SteelInternal Structure: BuckleConstruction: Fixed with TieWorking Temperature: -25~+75Environment Temperature: 85%Output Connection: PVC three-color 1.5m twisted pair cablePackage Included1 × Small Current TransformerThe colors of the lines are red, yellow, and blue, and they are sent randomly!!!
