SKU/Artículo: AMZ-B0GD28DLF5

Hilitand

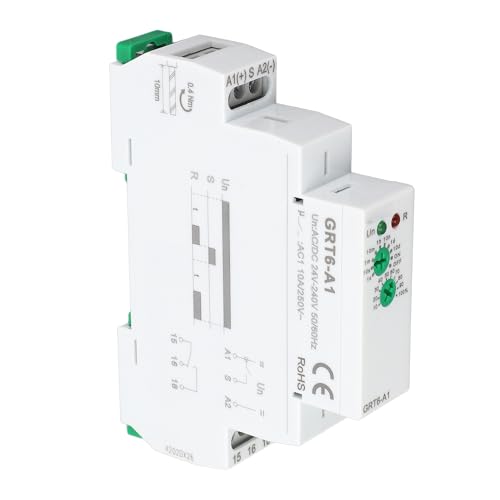

Hilitand Time Delay Relay, Single Function DIN Rail Mount Timer Relay with 0.1s to 10 Days Adjustable Delay for Pump Control and Fan Switch

Disponibilidad:
En stock

Peso con empaque:
0.36 kg

Devolución:
No

Condición
Nuevo

Producto de:
Amazon

Sobre este producto

[Versatile Timing Control] This time delay relay offers an adjustable timing range from 0.1 seconds up to 10 days, providing flexibility for various automation needs. whether you need to control pump operations, fan switches, or other electrical devices, this relay delivers accurate timing for both industrial and commercial applications. the wide time range makes it suitable for both short-cycle operations and long-duration processes.

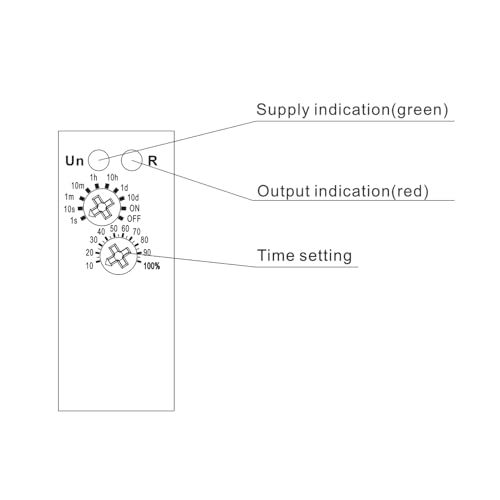

[Easy Setup & Operation] Featuring a user-friendly potentiometer for time adjustment, this delay relay eliminates complex programming. simply turn the knob to set your desired delay time without any technical expertise required. the intuitive design ensures quick configuration while maintaining precise control over your electrical systems. no special tools or software needed for operation.
[Clear Visual Indication] The built-in dual led indicators (green for power and red for output status) provide visual feedback on the relay's operation. at a glance, you can monitor the working state of your electrical system. the bright leds ensure visibility in various lighting conditions, enhancing operational safety and convenience in industrial environments.

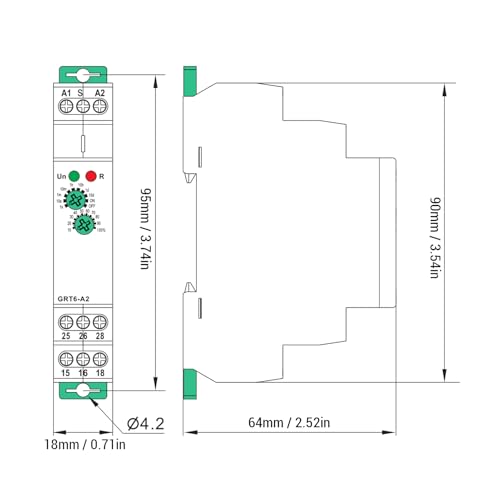

[Space-saving Din Rail Design] Engineered for effortless integration into existing electrical setups, this compact relay mounts securely on standard din rails (en/iec60715 compliant). the space-efficient design allows for neat installation in control panels while maintaining full functionality. perfect for retrofitting older systems or building new electrical installations with limited space.
[Durable Industrial Construction] Built to withstand demanding environments, this relay boasts an ip40 front panel and ip20 terminal protection rating. the rugged pc material housing resists dust and impacts while the components ensure reliable performance. with a mechanical life of 10 million operations and electrical life of 100,000 cycles (ac1), this timer relay delivers long-lasting service in harsh conditions.

U$S 28,91

44% OFF

U$S 16,06

U$S 28,91

44% OFF

U$S 16,06

Llega en 25 o más días hábiles

Tienes garantía de entrega

Medios de pago

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago

Conoce más detalles

Spec: Item Type: Time Delay Relay Material: PC Function: A: Delay ON Power Supply Terminals: A1-A2 Load: AC 0.09-3VA, DC 0.05-1.7W Power Supply Voltage Tolerance: -15%, +10% Power Indicator: Green LED Time Range: 0.1s-10days, ON, OFF Time Setting: Potentiometer Time Deviation: 10% Mechanical Setting Repetition Accuracy: 0.2% Set Value Stability Temperature Coefficient: 0.05%/℃, at=20℃ (0.05%℉, at=68℉) Output: 1xSPDT Current Strength: 10A/AC1 Switch Voltage: 250VAC, 24VDC DC Minimum Switching Power: 500mW Output Indicator: Red LED Mechanical Life: 10000000 Electrical Life (AC1): 100000 Reset Time: Maximum 200ms Operating Temperature: -20℃-+55℃ (-4℉-131℉) Storage Temperature: -35C-+75℃ (-22℉-158℉) Mounting, Rail: Guard Class EN or IEC60715 Guard Class: Front Panel IP40, Terminal IP20 Operating Position: Any Overvoltage Category: III Maximum Cable Size (mm²): Solid Wire Maximum 1 x 2.5 or 2 x 1.5, With Sheath Maximum 1 x 2.5 (AWG12) Torsion: 0.4Nm Package List: 1 x Time Relay 1 x Manual How To Use: 1. The product must be installed by a qualified electrician. 2. All electrical connections to the product must . 3. All and any electrical connections to the product must with the appropriate safety standards.
