Ultrasonic Thickness Meter Gauge Sheet Metal Pipes Glass Thickness Gauge Sound Velocity Meter with Calibration Block Measuring Range 0.75mm to 600.0mm 0.03inch to 23.62inch

0 5 5 1

1 calificaciones

Disponibilidad:
En stock

Peso con empaque:
1.68 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Sobre este producto

Introduction-------Ultrasonic Thickness Gauge measuring with ultrasonic wave, is applicable for measuring the thickness of any material in which ultrasonic wave can be transmitted and reflected back from the other face.The gauge can provide quick and accurate measurement to various work pieces such as sheets of board and processing parts. Another important application of the gauge is to monitor various pipes and pressure vessels in production equipment, and monitor the thinning degree
Primary Theory------ The digital ultrasonic thickness gauge determines the thickness of a part or structure by accurately measuring the time required for a short ultrasonic pulse generated by a transducer to travel through the thickness of the material,reflect form the back or inside surface, and be returned to the transducer.The measured two-way transit time is divided by two to account for the down-and-back travel path,and then multiplied by the velocity of sound in the material. The result i

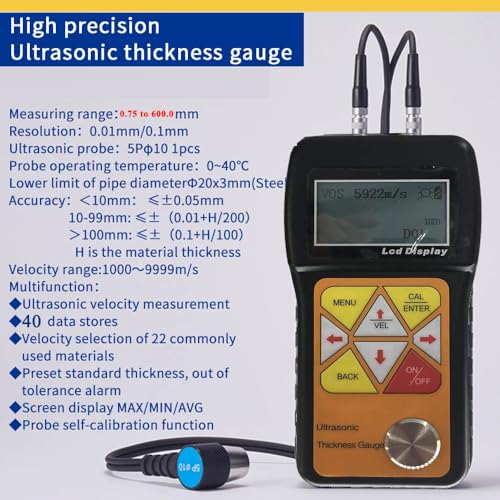

Measuring Range-------(0.75~600)mm（Steel）
Velocity Range------(1000~9999) m/s

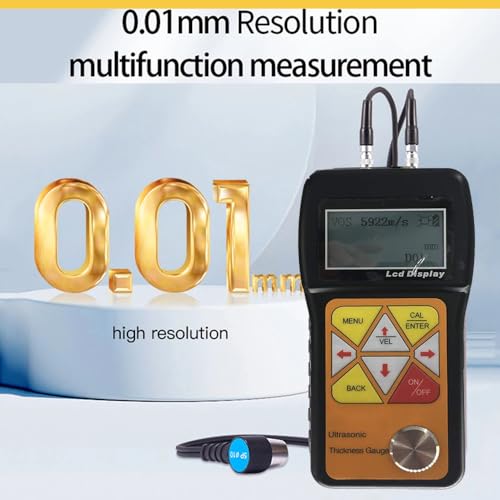

Resolution-------0.01mm Warranty Card----1 pc

U$S 384,25

31% OFF

U$S 265,00
