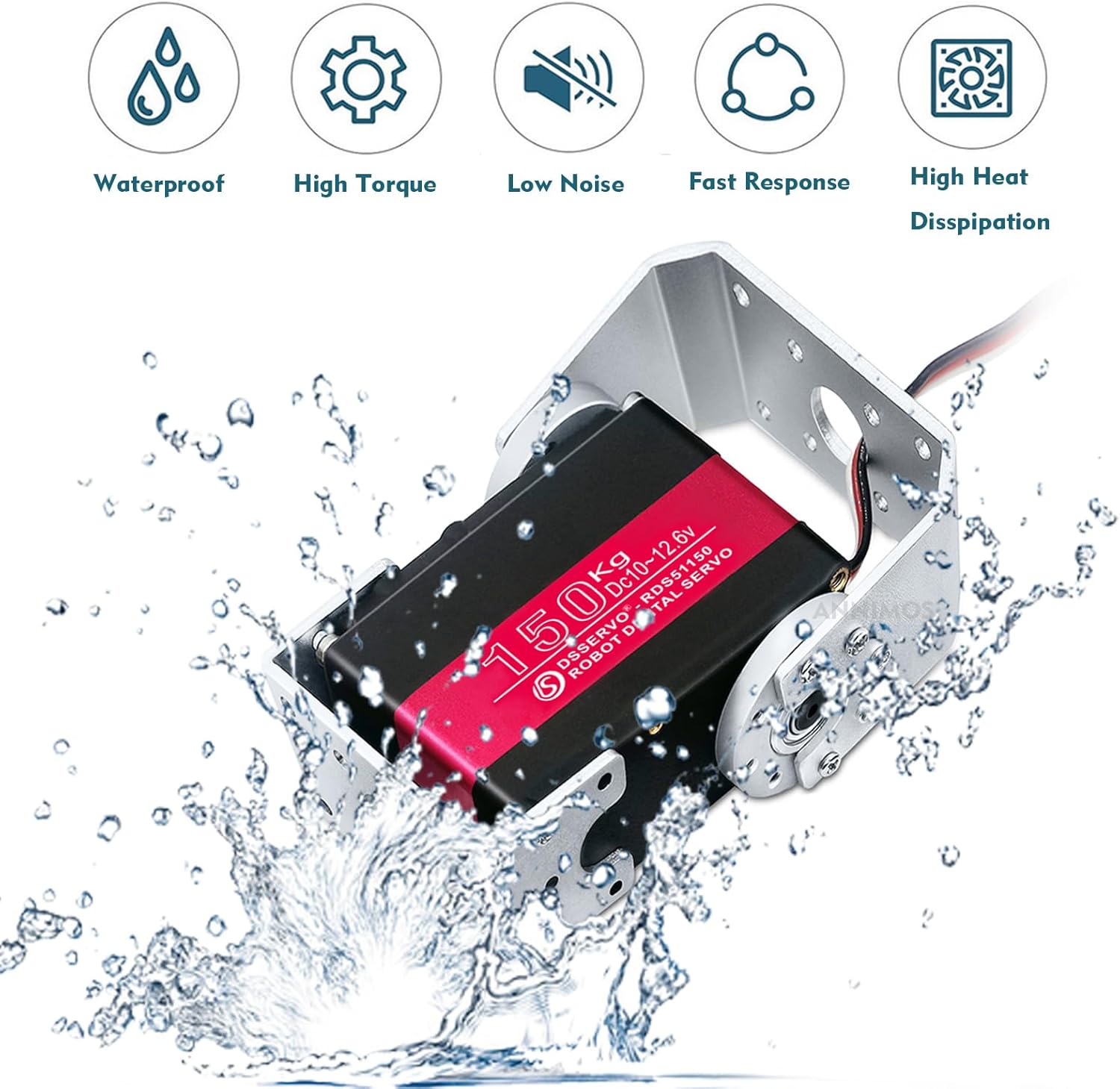

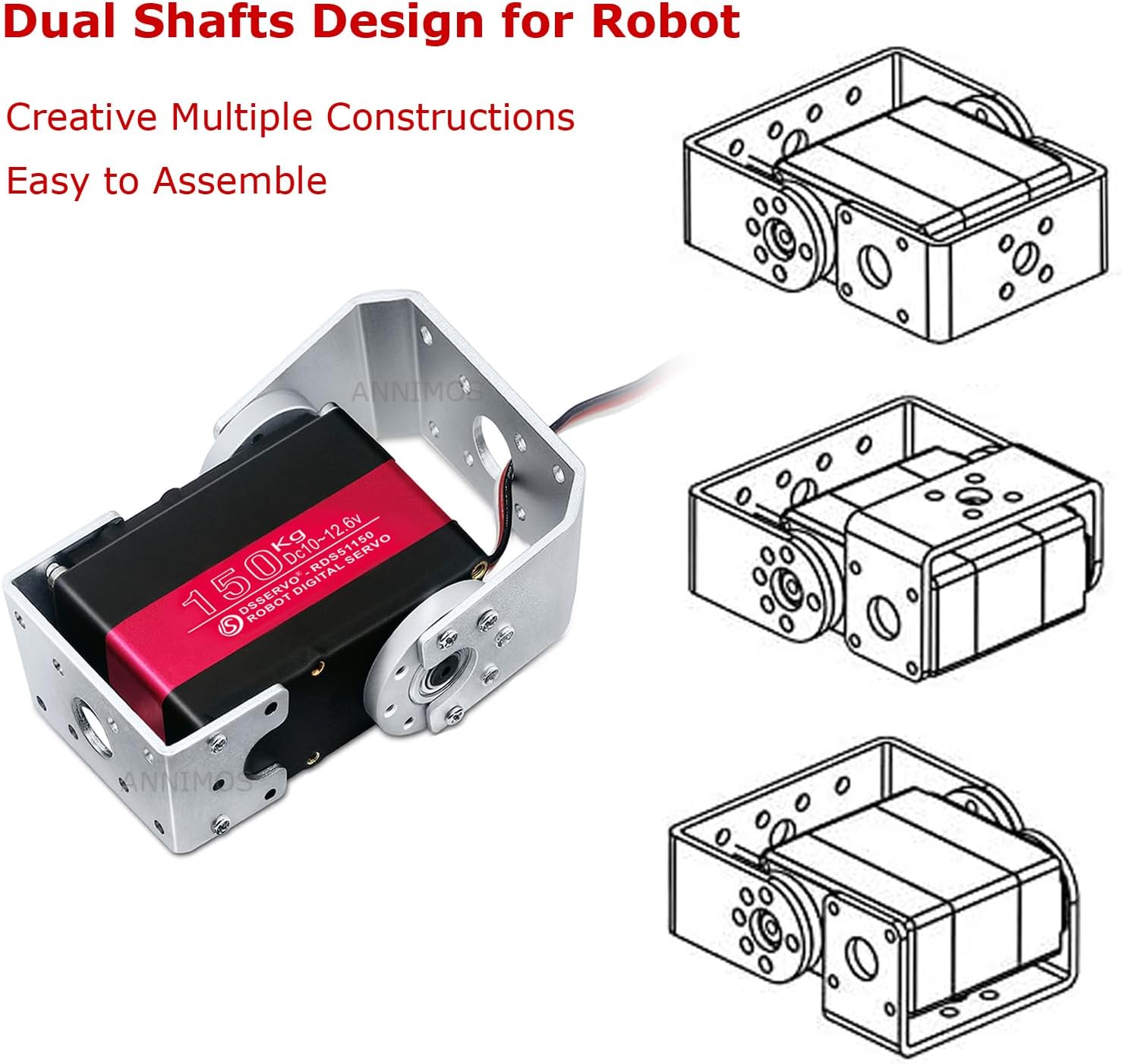

150KG Robot Servo Motor 12V High Voltage High Torque Steel Gear Large Digital Steering Servos with Mount Brackets
Size:
150kg
Disponibilidad:
En stock
En stock
Peso con empaque:
0.43 kg
0.43 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- Widely Used: RDS51150SG 150kg Full Metal Gear Servo Suitable for Robotic Arm/Industry, Humanoid, Bipedal and Multipedal Robots, as well as PTZ Monitoring Equipment, Remote-Controlled Vehicles etc.
- Great Heavy-Duty Servo: Amazing Torque & Fast Performance, Perfect for Industry and Robot Arms, Maximum Torque Can Up to 173kg.cm(2402.5oz-in),Speed 0.19 sec/60°@12.6V
- Reliable Quality: Equipped with High-precision Steel Gear and Potentiometers , High-resolution Digital Chip, Made of First-grade Material and CNC Aluminum Middle Shell Ensure Stable Performance and Long Working Life.
- Best Upgrade for your RC Rigs: Durable, Responsive, Strong Anti-interference Ability, Low Noise, Fast Heat Dissipation. Precision Control, Angle Range from 0 to 270 Degrees. Can be Rotated within 360 Degrees when Power Off. Power Wire is longer Enough Up to 45mm. Free U-Brackets & Accessories.
- Satisfied Customer Service: We Are Specialized in Developing and Manufacturing Robot & RC Servo, We Offer Value Price for Bulk Order. If Any Problem with Your Servo or Anything We Can Help, Please Do Not Hesitate to Contact with Us, We Will Try Our Best to Solve it Efficiently.
U$S 92,45
60% OFF
U$S 36,98
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 92,45
60% OFF
U$S 36,98
¡Comprá en 12 cuotas sin interés con todas las tarjetas!
Llega en 5 a 11 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles
Electrical Specification： Operating voltage range: 9-12.6 Volts Operating speed at no load ( 10V ): 0.24 sec/60° Operating speed at no load ( 12V ): 0.21 sec/60° Operating speed at no load ( 12.6V ): 0.19 sec/60° Stall torque at locked ( 10V ): 150kg.cm(2083oz-in) Stall torque at locked ( 12V ): 165kg.cm(2291.4oz-in) Stall torque at locked ( 12.6V ): 173kg.cm(2402.5oz-in) Stall current at locked ( 10V ): 7.4A Stall current at locked ( 12V ): 8.0A Stall current at locked ( 12.6V ): 8.3A Idle current at stopped (10/12/12.6V): 4/5/6mA Control Specification: Control System: PWM (Pulse width modification) Pulse width range: 500-2500μsec Neutral position: 1500μsec Running degree: 270° (when 500-2500μsec) Dead band width: 3μsec Operating frequency: 50-330Hz Rotating direction: Counterclockwise (When 1500-2500μsec) Product Specification: Motor Type：3-pole(s) Gear Type: Steel Gear Spline:18 Tooth Gear ratio: 357 Bearing：Double Bearing Connector Wire: 17.7in (450mm) Size: 2.55 x 1.18 x 1.88inch（65 x 30 x 48mm） Weight: 5.75oz (163g) CE /RoHs: Yes Packing List: 1 x RDS51150SG 150kg Robot Servo (270°) 2 x U-Shaped Aluminum Holders 2 x Aluminum Circle Discs One Set of Plastic Accessories (As Shown on The Picture)
