Hosyond

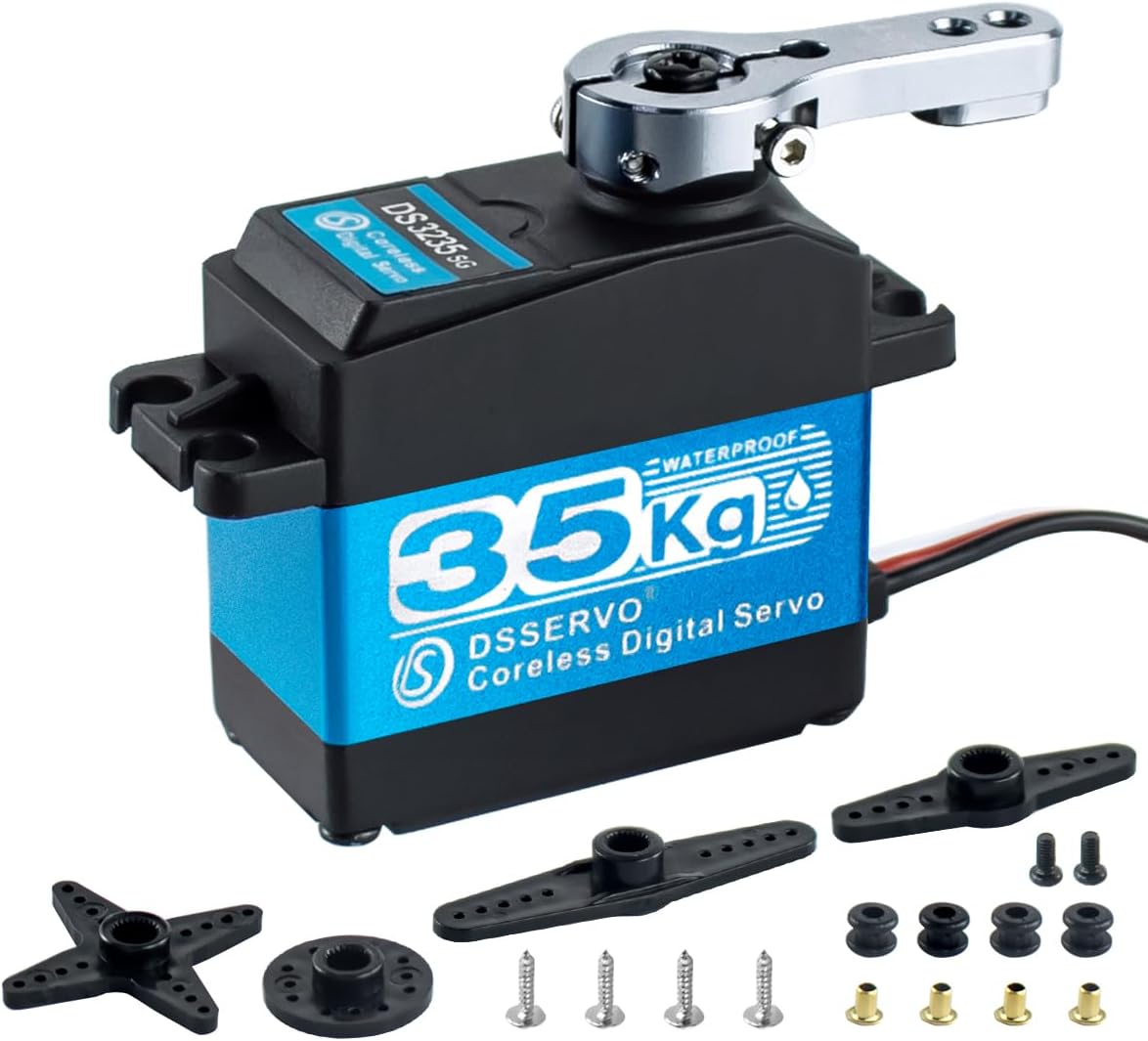

DS3235 35kg Digital RC Servo High Torque All Metal Gear Coreless Motor Waterproof Servo Motors for RC Robot, Car, Truck (Control Angle 270°)

68 Calificaciones
20kg rc servo
25kg rc servo
35kg rc servo

Disponibilidad: En stock

Marca: Hosyond

Peso con empaque: 0.355 kg

Producto con devolución

Producto de: Amazon

Precise position control: This digital servo supports PWM control with a wide pulse width range from 500 microseconds to 2500 microseconds, including 1500 microseconds in the neutral position. This allows it to provide very precise position control, making it suitable for applications requiring a high degree of accuracy.
High Quality Construction: The housing is composed of engineering plastic and aluminum alloy, providing rugged external protection while featuring a dual-bearing design for added durability and reliability. Stainless steel gears and IP67 water resistance further enhance its durability.
Coreless Motor: This servo uses a coreless motor, a type of motor that typically has high speed and fast response characteristics that perform well in applications that require fast action.
Counterclockwise rotation: The DS3235SG rotates counterclockwise when the input signal is 1500-2500 microseconds. This is a common rotation direction in remote control applications and facilitates use with other devices and components.
Wide working range: The servo provides a 270-degree working angle and has different torques under different voltages, with the maximum torque up to 35kg/cm @7.4V. This means it has a wide adjustability range and is suitable for different types of applications including remote control cars, crawlers and trucks.

Ver más

SKU: B0CJFR6KV9

Ver Calificaciones

Precio: U$S 57.98 $ 2.530

Ahorras: U$S 28.99 (50%) $ 1260 (50%)

U$S 28.99

$ 1.270

Este producto tiene Garantía de Entrega

Agrega el producto al carrito para conocer los costos de envío
Recibí este producto de 5 a 11 días hábiles seleccionando envío

¡El regalo para papá con hasta 40% OFF y USD 15 extra con BBVA!

¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!

Este producto viaja > USA > Tus Manos

Más detalles del producto

Operating voltage range: 5-7.4V Operating speed (at no load): 0.13 sec/60 degree @5.0V Operating speed (at no load): 0.12 sec/60 degree @6.0V Operating speed (at no load): 0.11 sec/60 degree @ 7.4V Stall torque (at locked): 29kg/cm @5.0V Stall torque (at locked): 32kg/cm @6.0V Stall torque (at locked) : 35kg/cm @7.4V Stall current (at locked): 1.9A @5.0V Stall current (at locked): 2.1 [email protected] Stall current (at locked): [email protected] Control Specification: Control System: PWM (Pulse width modification) Pulse width range: 500-2500μsec Neutral position: 1500μsec Running degree: 270° (when 500-2500μsec) Dead band width: 3μsec Operating frequency: 50-330Hz Rotating direction: Counterclockwise (When 1500-2500μsec) Product Specification: Suitable for: for 1:8 1:10 1:12 Scale RC Cars, RC Trucks Motor Type: Coreless Motor Gear Type: Stainless Steel Case : Engineering plastics+Aluminum alloy Horn gear spline: 25T Diameter:5.9mm Gear ratio: 342 Bearing:Double Bearing Waterproof Performance:IP67 Connector Wire: 300mm±5mm CE /RoHs: Yes Packing List: 1*DS3235SG 35kg Servo 1*25T Adjustable Metal Servo Arm One Set of Plastic Accessories (As Shown on The Picture)
