SKU/Artículo: AMZ-B009R3TVRY
Digilent

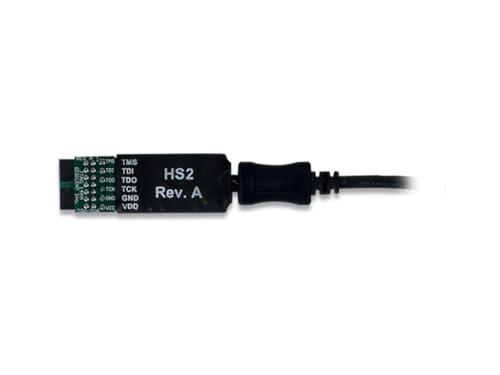

Digilent JTAG-HS2 Programming Cable
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- The joint test action group (JTAG) HS2 programming cable is a high-speed programming solution for Xilinx field-programmable gate arrays (FPGAs). The cable is fully compatible will all Xilinx tools and can be seamlessly driven from iMPACT, ChipScope, and EDK. The HS2 attaches to target boards using Digilent's 6-pin, 100-mil spaced programming header or Xilinx's 2x7, 2mm connector and the included adaptor. The PC powers the JTAG-HS2 through the USB port and will recognize it as a Digilent programming cable when connected to a PC, even if the cable is not attached to the target board. The HS2 has a separate Vdd pin to supply the JTAG signal buffers. The high-speed 24mA three-state buffers allow target boards to drive the HS2 with signal voltages from 1.8V to 5V and bus speeds of up to 30MBit/sec. To function correctly, the HS2's Vdd pin must be tied to the same voltage supply that drives the JTAG port on the FPGA. The JTAG bus can be shared with other devices as systems hold JTAG signals at high-impedance except when actively driven during programming. The HS2 comes included with a standard Type-A to Micro-USB cable that attaches to the end of the module opposite the system board connector. The system board connector should hold the small and light HS2 firmly in place.
U$S 131,65
55% OFF
U$S 59,84
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 131,65
55% OFF
U$S 59,84
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 11 a 15 días hábiles
con envío
Tienes garantía de entrega
Conoce más detalles
Small, complete, all-in-one JTAG programming solution for Xilinx FPGAs Compatible with IEEE 1149.7-2009 Class T0 - Class T4 (includes 2-Wire JTAG) High-Speed USB2 port that can drive JTAG/SPI bus at up to 30Mbit/sec JTAG/SPI frequency settable by user Uses micro-AB USB2 connector
