Garantía de entrega
Ace instruments

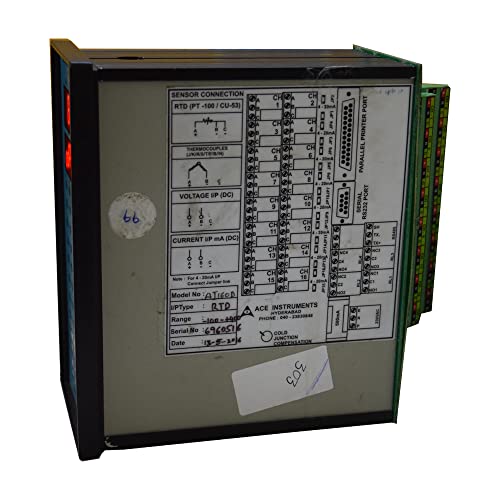

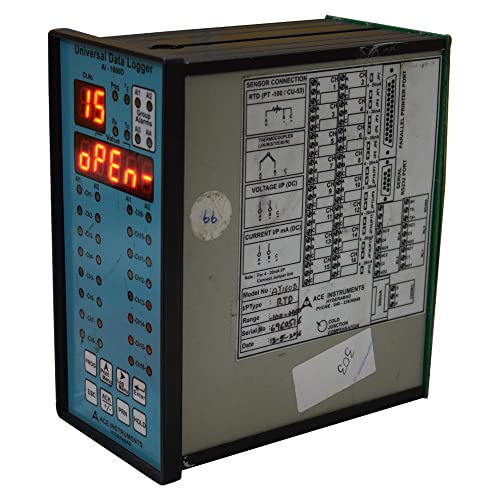

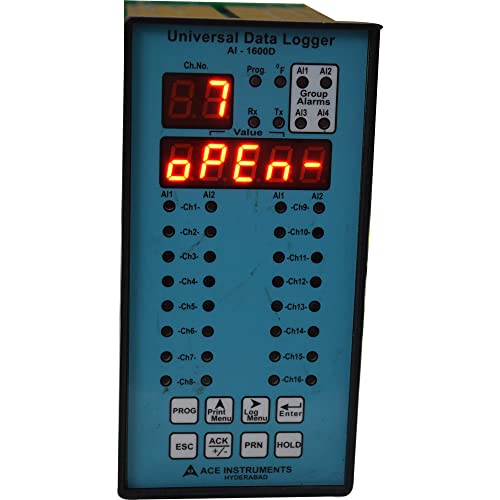

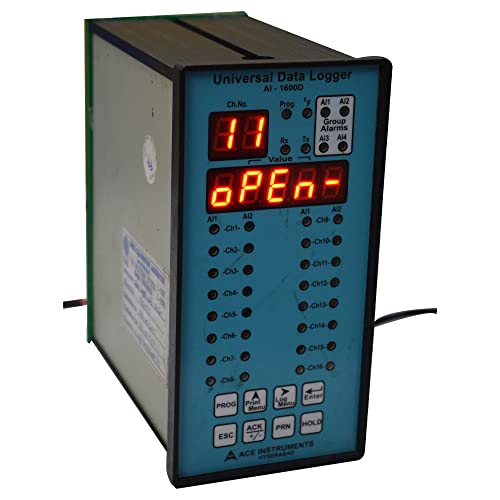

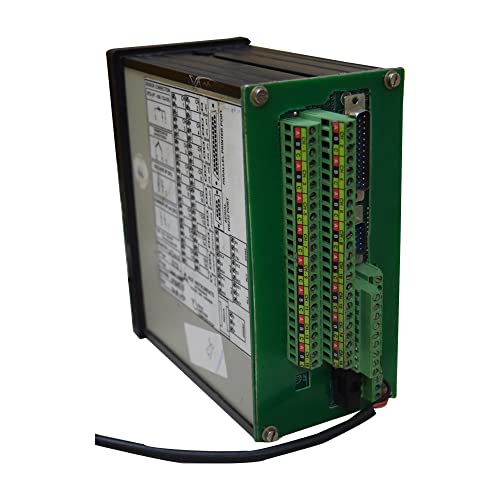

16 Channel Data Logger Along with Calibration Certificate
Style:
16 Channel Data Logger
Disponibilidad:
En stock
En stock
Peso con empaque:
1.38 kg
1.38 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- 16 Channel Universal Input Data Loggers which can be configured to take inputs of RTD Pt-100 Sensors (Temperature),Pressure(4-20 mA), Humidity (4-20 mA). Temperature from Transmitters (4-20 mA), Any thermocouples , Voltage or Current (mA) Signals; 2) The data loggers (recorders) have a direct printer port which can be connected to a 80 Column Dot Matrix Printer without using a computer.
- The instrument can be programmed from the front keys to print the data of all 16 Channels at any time interval. This means that the print time between successive printouts is user programmable from 5 secs to 9999 secs. The printout includes the date, time, channel no & its value; Additional features include universal input selectable from front key , i.e, each channel can be independently configured for any kind of input.
- Thus, a single instrument can be used to record temperatures , pressure, vacuum, flow, pH, conductivity on different channels of the same instrument. The instruments have a RS232/RS485 Computer communication port & come with the trusted Datalog 16 V3 Data Logging/recording software with Online Tabular View, Data Graphing & Excel Sheet Reporting.
- Measuring Range: -100°C to +400°C for RTD Pt- 100 Input -999 to +9999 for Analog 4-20mA Input; Accuracy: ±0.3% of Full Scale; Display: 2 Digit for Channel No; 5 Digit for Process Variable Red LED Display; Input: All 16 Channels Programmable between RTD Pt-100 3 Wire (Temperature), Pressure (4-20 mA), Humidity (4-20 mA), Temperature from Humidity, All Thermocouples, 0-1V DC.
- Keys: 8 Keys Membrane Key Pad; Memory: 3000 readings of all 16 Channels; Modes: Channel Skip , Hold & Auto Modes; Scan Time: 1 to 59 seconds ( User Programmable ); Relay/ Alarm: 4 Relay Contacts for Alarm & Trip; Communication: RS 232/RS 485 Computer Connectivity Output & Parallel Printer Port For Direct Printing onto 80/132 Column Dot Matrix Printer.
U$S 1.297,80
44% OFF
U$S 721,00
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 1.297,80
44% OFF
U$S 721,00
Llega en 25 o más días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles
Ace Instruments makes 16 Channel Universal Input Data Loggers can be configured to take inputs of RTD Pt-100 Sensors(Temperature),Pressure( 4-20 mA), Humidity (4-20 mA) Temperature from Transmitters (4-20 mA), any thermocouples, voltage or current (mA) Signals. The Data loggers ( recorders ) have a direct printer port which can be connected toa 80 Column Dot Matrix Printer without using a computer. The instrument can be programmed from the front keys to print the data of all 16 Channels at any time interval. This means that the print time between successive printouts is user programmable from 5 secs to 9999 secs. The printout includes the date, time , channel no. & its value. Additional features include universal input selectable from front key , i.e., each channel can be independently configured for any kind of input.Thus, a single instrument can be used to record temperatures , pressure, vacuum ,flow, pH , conductivity on different channels of the same instrument. The instruments have a RS232 / RS485 Computer communication port & come with the trusted Datalog 16 V3 Data Logging / recording software with Online Tabular View, Data Graphing & Excel Sheet Reporting .
