Time Mark Corp A257B Relay, Solid State, 3-Phase Power Monitor

Disponibilidad:
En stock
Peso con empaque:
0.36 kg
Devolución:
Condición
Nuevo
Producto de:
Amazon

Sobre este producto
  • 3PH,480V 60 Hz,SPDT, UL/CSA
  • Detects phase loss, low voltage, phase reversal
  • 50Hz, 60Hz and 400Hz models
  • Automatic or manual reset
  • Five year unconditional warranty
U$S 186,13
60% OFF
U$S 74,45

IMPORTÁ FACIL

Comprando este producto podrás descontar el IVA con tu número de RUT

U$S 186,13
60% OFF
U$S 74,45

¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!

Llega en 11 a 15 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja de USA a tus manos en
Medios de pago Aceptamos múltiples medios de pago para tu comodidad

Compra protegida

Disfruta de una experiencia de compra segura y confiable

Conoce más detalles

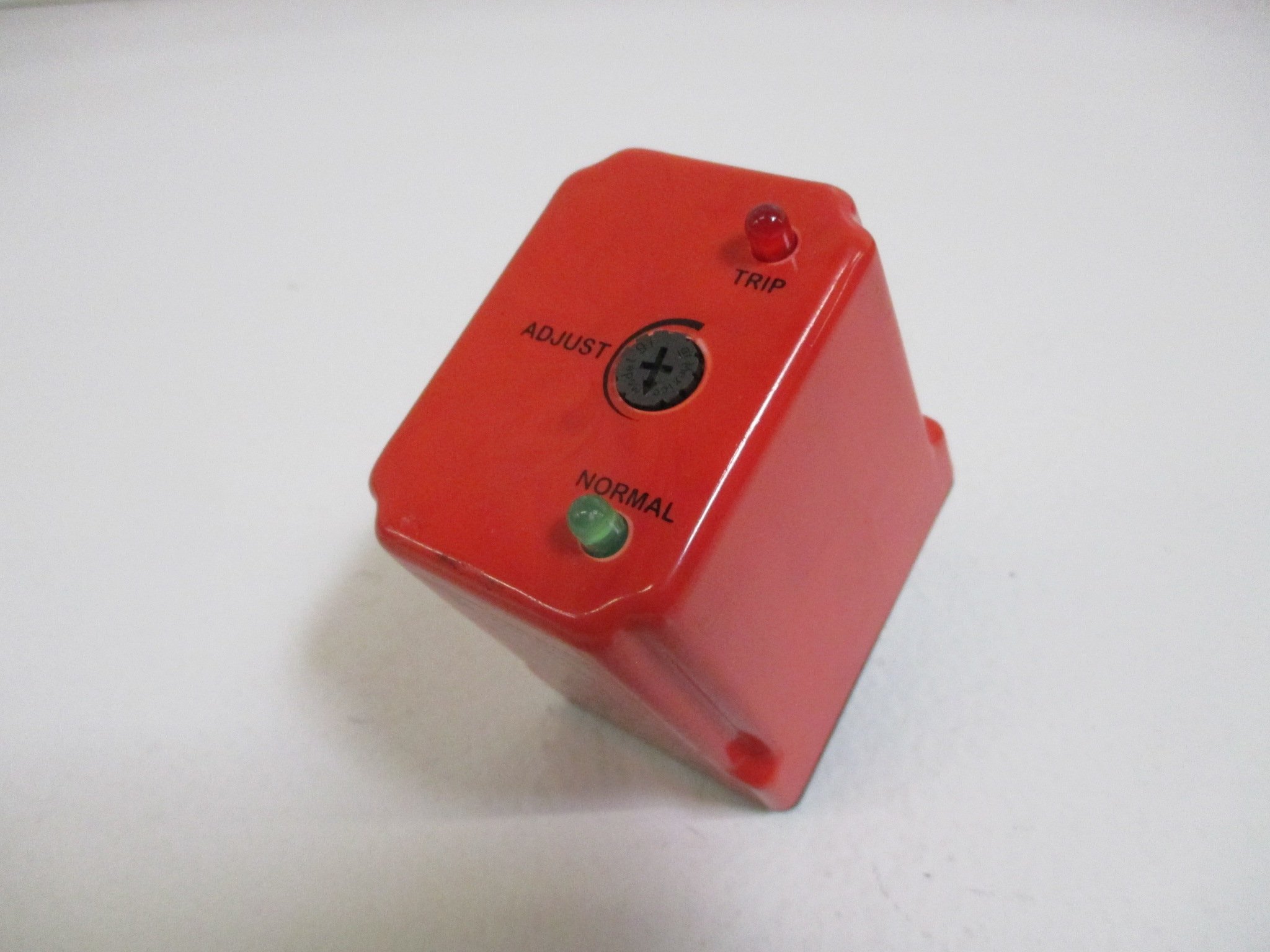

Time Mark A257B 3-Phase Monitor 3 Phase Power Electromechanical relay Solid-state voltage Phase-angle sensing circuit For abnormal conditions The Model 257 continuously monitors 3- phase power lines for abnormal conditions. When properly adjusted, the Model 257 monitor will detect phase loss on a loaded motor even when regenerated voltage is present. This device consists of a solid-state voltage and phase-angle sensing circuit, driving an electromechanical relay. When correct voltage and phase rotation are applied, the internal relay will energize. A fault condition will de-energize the relay. When the fault is corrected, the monitor will automatically reset (a manual reset version is also available). The Model 257 does not require a neutral connection and can be used with Wye or Delta systems. Voltage ranges are sufficiently wide to allow for proper adjustment to existing conditions. Both "TRIP" and "NORM" condition indicators are provided to aid in adjustment and system trouble-shooting.
