DC 10-60V 20A PWM Motor Speed Controller Regulator Motor Driver Governor Stepless Variable Rotary Switches 12V 24V 36V 48V Pulse Width Modulator for 775 Motor and More
Disponibilidad:
En stock
En stock
Peso con empaque:
0.36 kg
0.36 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- Switch --- can solve the damage caused by instantaneous high current to speed controller
- Blocking Protection(20A current limited) --- DC motor speed controller can limit the high current produced by the blocking of the motor, also with low voltage and stall/over-current protection
- Easy to Use --- Rotary panel switch control makes it more easy to control the speed steplessly with high accuracy
- Ultra-high Power Control --- The maximum current is 20A, it is recommended not to exceed it.
- Barrier Terminal Block Wiring --- Convenient for wiring connecting, ideal item for elctronics DIY
U$S 14,54
8% OFF
U$S 13,41
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 14,54
8% OFF
U$S 13,41
¡Comprá en hasta 12 cuotas sin interés con todas tus tarjetas!
Llega en 5 a 11 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles

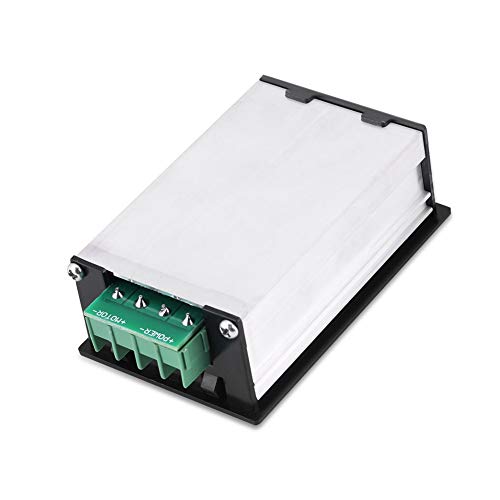

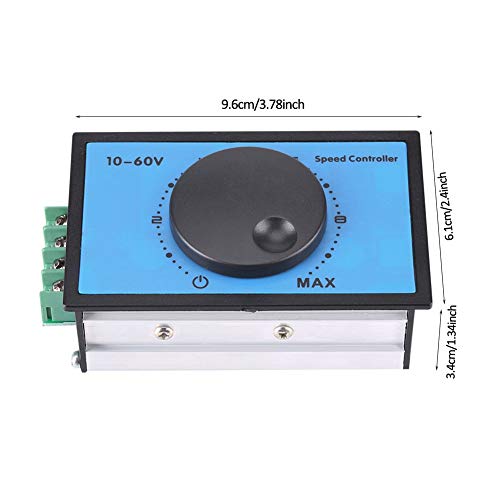

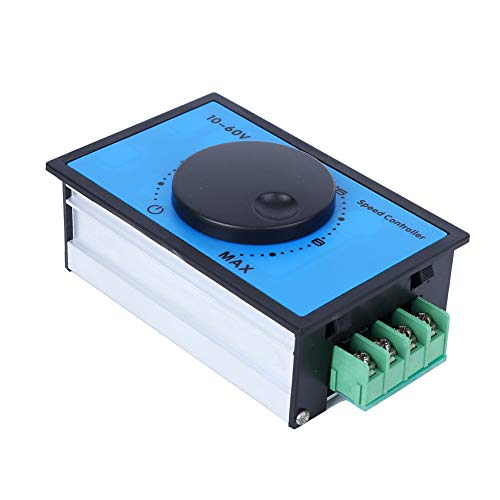

The DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). It features soft start, blocking and low voltage protection. It's high power dc motor controller, the maximum current is 20A. Equipped with a stepless rotary switch, it's easy for you to control your dc motor with high accuracy. Specification: Input voltage: DC 10-60V (The specific voltage must be the same as the rated voltage of the motor) Output voltage: Linear output under load Current: 0-20A (Limited value 20A) Regulating type: regulating current Regulating method: potentiometer(270° linear) Regulating speed range: 0-100% Control frequency: 15KHZ Knob: 10K(with switch) Size: Approx. 9.6 x 6.1 x 3.4cm / 3.78 x 2.4 x 1.34inch Weight: 107g Package Included: 1 x DC Motor Speed Controller Note: The input terminal must be divided into positive and negative input. The input voltage must be the same as the rated voltage of the motor(within DC 10-60V). Can not input AC 220V, or it will burn up the module directly. Blocking is not a power cut, it is the limited current value of 20A. Please allow 1-3cm differences due to manual measurement. Thank you for your kindly understanding.
