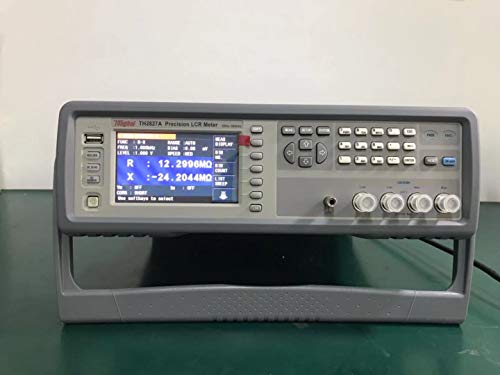

TH2827A Digital LCR Meter with 20Hz-300kHz Continuous Test Frequency
Disponibilidad:
En stock
En stock
Peso con empaque:
2.09 kg
2.09 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Sobre este producto
- ■ digital LCR meter, ESR tester, capacitance meter, inductance meter, resistance meter
- ■ 4.3-inch TFT LCD display ■ Selectable Chinese and English operation interfaces ■ Maximum test frequency of 1MHz, resolution of 10mHz ■ Balance test function
- ■ Transformer parameter test function ■ Maximum test speed: 13ms/time ■ Automatic level control (ALC) function for V and I ■ Test signal level monitor function for V and I ■ Included interior DC bias source ■ External DC bias source of large current ■ 10-point list sweep function ■ Selectable internal resistance of 30Ω, 50Ω and 100Ω
- ■ Internal file storage and external USB-disk file storage ■ Test data can be saved to USB-disk directly ■ RS232C, USB, LAN, HANDLER, GPIB, DCI interface Brief Introduction
- ■ TH2827A Frequency of test signal 20Hz—300kHz，AC Level voltage range of test signal 5mV—2Vrms,Minimum resolution of voltage 100μV, 3-digit input
U$S 3.464,05
31% OFF
U$S 2.389,00
IMPORTÁ FACIL
Comprando este producto podrás descontar el IVA con tu número de RUT
U$S 3.464,05
31% OFF
U$S 2.389,00
Llega en 15 a 25 días hábiles
con envío
Tienes garantía de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que soñás y lo recibas del mundo a tu puerta.
Saber más.
Tarjetas prepagas, debito, y credito
Paga hasta en 12 cuotas sin interés con tarjetas de crédito.
Visa
Mastercard
American Express
Dinners
Discover
Lider
Midinero
OCA
OCA Blue
Tarjeta PREX
Pagos a través de PayPal
Paga en dólares con Tarjetas internacionales a través de PayPal.
PayPal
Conoce más detalles
Features Specifications ■ 4.3-inch TFT LCD display ■ Selectable Chinese and English operation interfaces ■ Maximum test frequency of 1MHz, resolution of 10mHz ■ Balance test function ■ Transformer parameter test function ■ Maximum test speed: 13ms/time ■ Automatic level control (ALC) function for V and I ■ Test signal level monitor function for V and I ■ Included interior DC bias source ■ External DC bias source of large current ■ 10-point list sweep function ■ Selectable internal resistance of 30Ω, 50Ω and 100Ω ■ Internal file storage and external USB-disk file storage ■ Test data can be saved to USB-disk directly ■ RS232C, USB, LAN, HANDLER, GPIB, DCI interface Brief Introduction ■ TH2827 series is a new precision LCR meter with various functions and a higher test frequency. With small size and portable appearance, it is convenient for use on the shelves. This instrument has a basic accuracy of 0.05%, maximum test frequency of 1MHz and resolution of 10 mHz. It is easy to operate with a 4.3-inch LCD screen as well as selectable Chinese and English operation interfaces. Integrated transformer test function and balance test function greatly improve the test efficiency. The instrument is also provided with multiple interfaces which can meet various requirements of the automatic sorting test, data transmission and storage. Auto balancing bridge method with the widest impedance measurement range 4-terminal pair configuration to eliminate electromagnetic couple of test leads Basic accuracy: 0.05 %( TH2828/TH2828S), 0.1 %( TH2828A) Maximum test frequency up to 1 MHz AC test signal programmable to 20V (optional) Maximum measurement speed up to 30 meas/sec 6-digit display resolution 22 parameter combinations available
