SKU/Artículo: AMZ-B07P87TG8F

Walfront

Current Sensing Switch, Normally Open Current Sensing Switch Adjustable AC 0.2-30A SZC23-NO-AL-

Detalles del producto

Disponibilidad:
En stock

Peso con empaque:
0.36 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Viaja desde
USA

Sobre este producto

SZC23 series AC current sensing switch is designed and manufactured to solve the AC current monitoring. It uses the principle of mutual inductance to sense the AC straight-through current, isolate the AC current, and output a normally open or normally closed switching to directly control various automation industrial equipment, such as flash, buzzer, relay, single-chip or other power load equipment. Compared with traditional mutual inductors, thermal protectors and other devices, using this device can not only get more accurate and more timely control, but can also greatly simplify the design and reduce costs. Specification: Model: SZC23-NO-AL- Power supply: Not required Rated load: ≤ 0.5A@240V AC/DC Input current: 0.2-30A AC Switch on minimum: 0.5±0.2A Maximum overload: Leakage current: ≤0.1A Accuracy: 1% Hysteresis: ≤1% Response time: ≤200ms Repeatability: Working temperature: -20~60℃ Waterproof: IP30 Dimensions: 65×25×47mm / 2.56×0.98×1.85in Hole diameter: 10mm / 0.4in Package weight: Approx. 56g/2.0oz Package list: 1 × Current Sensing Switch Note: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding.

U$S 24,24

31% OFF

U$S 16,72

U$S 24,24

31% OFF

U$S 16,72

Llega en 11 a 15 días hábiles

Tienes garantía de entrega

Medios de pago

Cantidad

Medios de pago

Conoce más detalles

Self-powered, no external power supply required.Action current 0.2-30A AC, adjustable with a potentiometer. LED indicator can conveniently and intuitively indicate the working status of the switch.Hysteresis is less than 1% and can be used under strong magnetic conditions. The switch has no limit on the number of opening and closing, and the speed reaches the ms level.The outer casing is made of self-extinguishing material ABS. High-power MOS tube contactless electronic switch.Straight-through structure design, isolation withstand voltage up to 2000V. Suitable for AC current measurement and monitoring, AC motor overload , electronic switch of automatic control system and so on.

Current Sensing Switch, Normally Open Current Sensing Switch Adjustable AC 0.2-30A SZC23-NO-AL-

Conoce más detalles

Cable Matters [ETL Listed] 3-Pack Grounded Outlet Switch with On Off, Plug Switch On Off, Single Outlet Adapter, White

GE Wall Switch & Outlet Combo, Two-in-One Receptacle, 1 On/Off Toggle Power Switch, 1 Grounded AC Outlet Wall Plug, Single Pole, 3 Prong, 15 Amp, UL Listed, White, 59797

[UL Listed] DEWENWILS Grounded Single Port Power Adapter with On/Off Switch, 3 Prong Electrical Plug Outlet Switch, 15A Circuit Breaker, 280J Surge Protector, White, 3 Pack

Grounded Double Outlet Power Adapter with Separate On/Off Rocker Switches, 3 Prong Electrical Plug Outlet Switch Current Tap

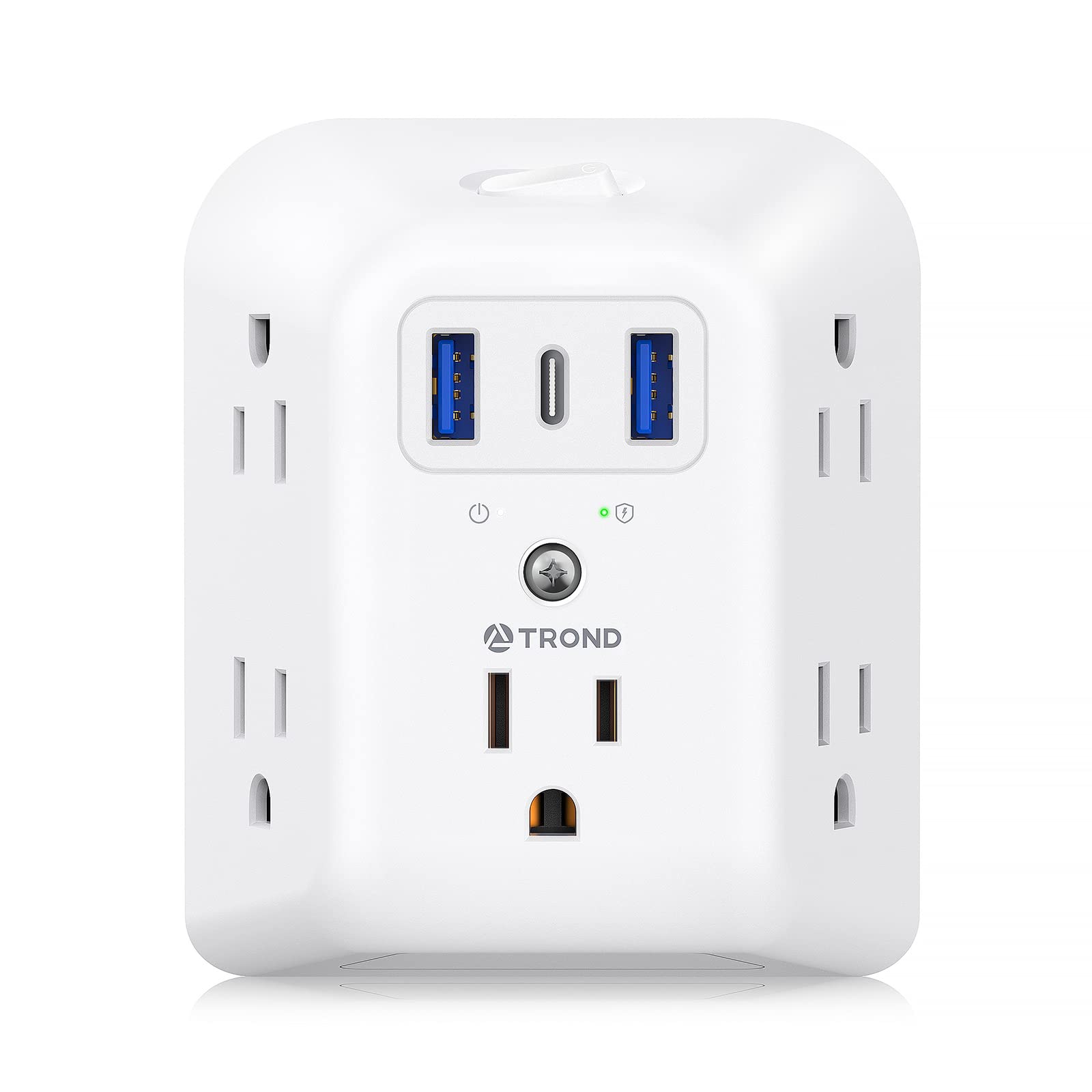

TROND Outlet Extender with 360° Rotating Plug, 6 AC Outlet Splitter with On/Off Switch, Multi Plug Adapter with PD 20W USB C, 2 USB-A & 2 USB-C, 3 Way Wall Extension Outlet for Home Office Travel
